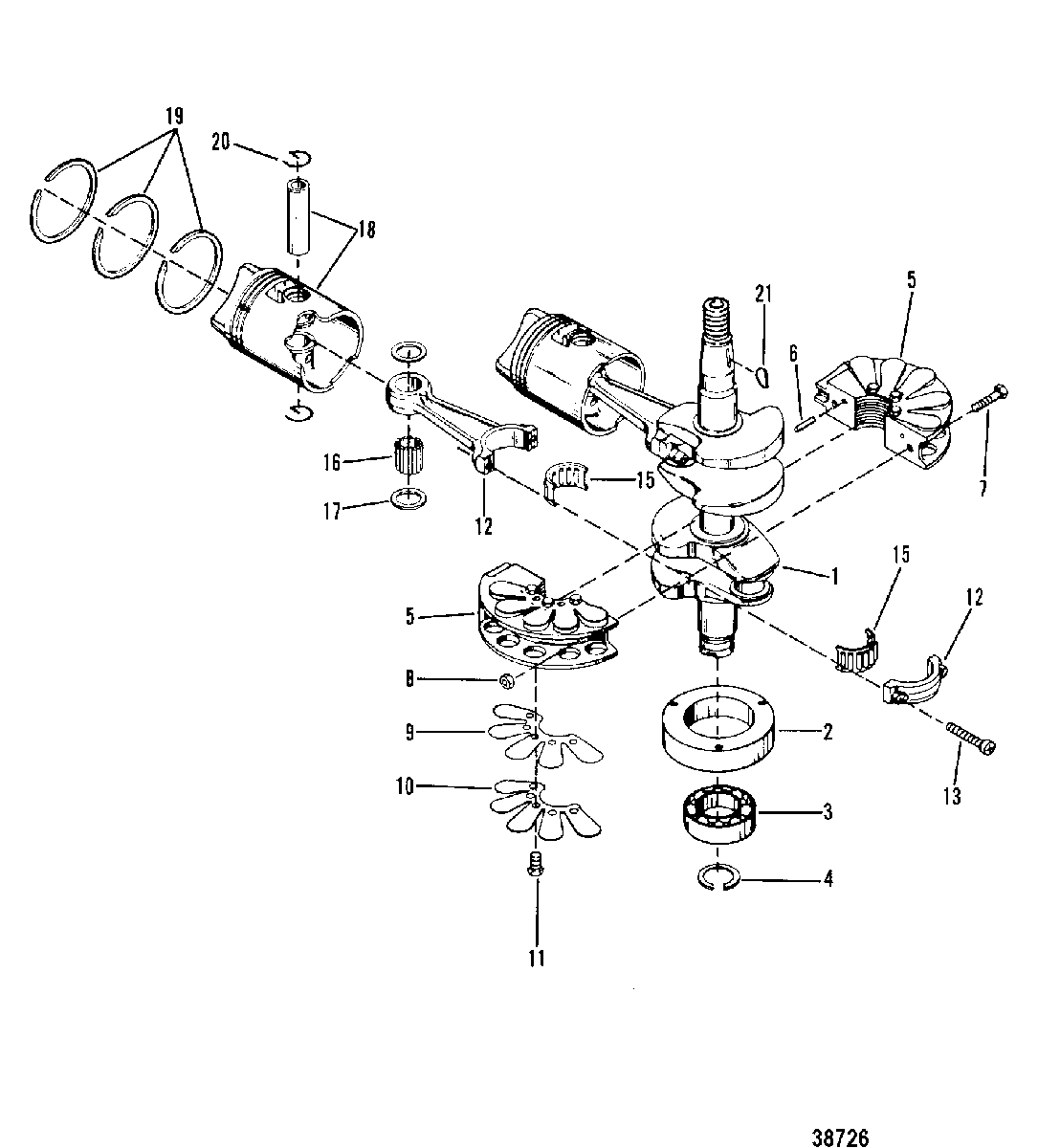

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mercury - 35 9466647 & Up
-
№АртикулНазвание
-
1454-9073A1 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
278308A1 RETAINER ASSEMBLY, BALL BEARINGRETAINER ASSEMBLY, BALL BEARING
-
330-63742T BEARING, Ball (CRANKSHAFT)BEARING, Ball (CRANKSHAFT)
-
453-63634 RING, Retaining, BALL BEARINGRING, Retaining, BALL BEARING
-
5540-7238A2 BEARING ASSEMBLY, Main, VALVE TYPEBEARING ASSEMBLY, Main, VALVE TYPE
-
617-20032 PIN, Dowel, MAIN BEARINGPIN, Dowel, MAIN BEARING
-
710-38055 SCREW, (.190-32 x .620), MAIN BEARING CLAMPINGSCREW, (.190-32 x .620), MAIN BEARING CLAMPING
-
811-8267086 NUT, (#10-32), MAIN BEARING CLAMPING SCREWNUT, (#10-32), MAIN BEARING CLAMPING SCREW
-
934-56007A1 REED SET, MAIN BEARING (MATCHES)REED SET, MAIN BEARING (MATCHES)
-
1034-56008 STOP, Reed, MAIN BEARING REED VALVESSTOP, Reed, MAIN BEARING REED VALVES
-
1110-20055 SCREW, (#10-32 x .375), REED STOP MOUNTINGSCREW, (#10-32 x .375), REED STOP MOUNTING
-
12624-8101A3 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1310-91012 SCREW, (.250-28 Special), CONNECTING RODSCREW, (.250-28 Special), CONNECTING ROD
-
1531-62596A1 BEARING ASSEMBLY, CRANKPINBEARING ASSEMBLY, CRANKPIN
-
1629-47270 BEARING, PISTON PINBEARING, PISTON PIN
-
1712-8M0032839 WASHER, NEEDLE BEARING RETAININGWASHER, NEEDLE BEARING RETAINING
-
18774-9137A12 PISTON ASSEMBLY
(STANDARD)PISTON ASSEMBLY
(STANDARD) -
18774-9137A13 PISTON ASSEMBLY
(.015 OVERSIZE)PISTON ASSEMBLY
(.015 OVERSIZE) -
18774-9137A14 PISTON ASSEMBLY
(.030 OVERSIZE)PISTON ASSEMBLY
(.030 OVERSIZE) -
1939-78816A12 RING
(STANDARD)RING
(STANDARD) -
1939-78811A12 RING SET, Piston - .015 OversizeRING SET, Piston - .015 Oversize
-
1939-88392A12 RING SET, Piston - .030 OversizeRING SET, Piston - .030 Oversize
-
2053-857196 RING, Lock, PISTON PINRING, Lock, PISTON PIN
-
2128-45554 KEY, CRANKSHAFTKEY, CRANKSHAFT
