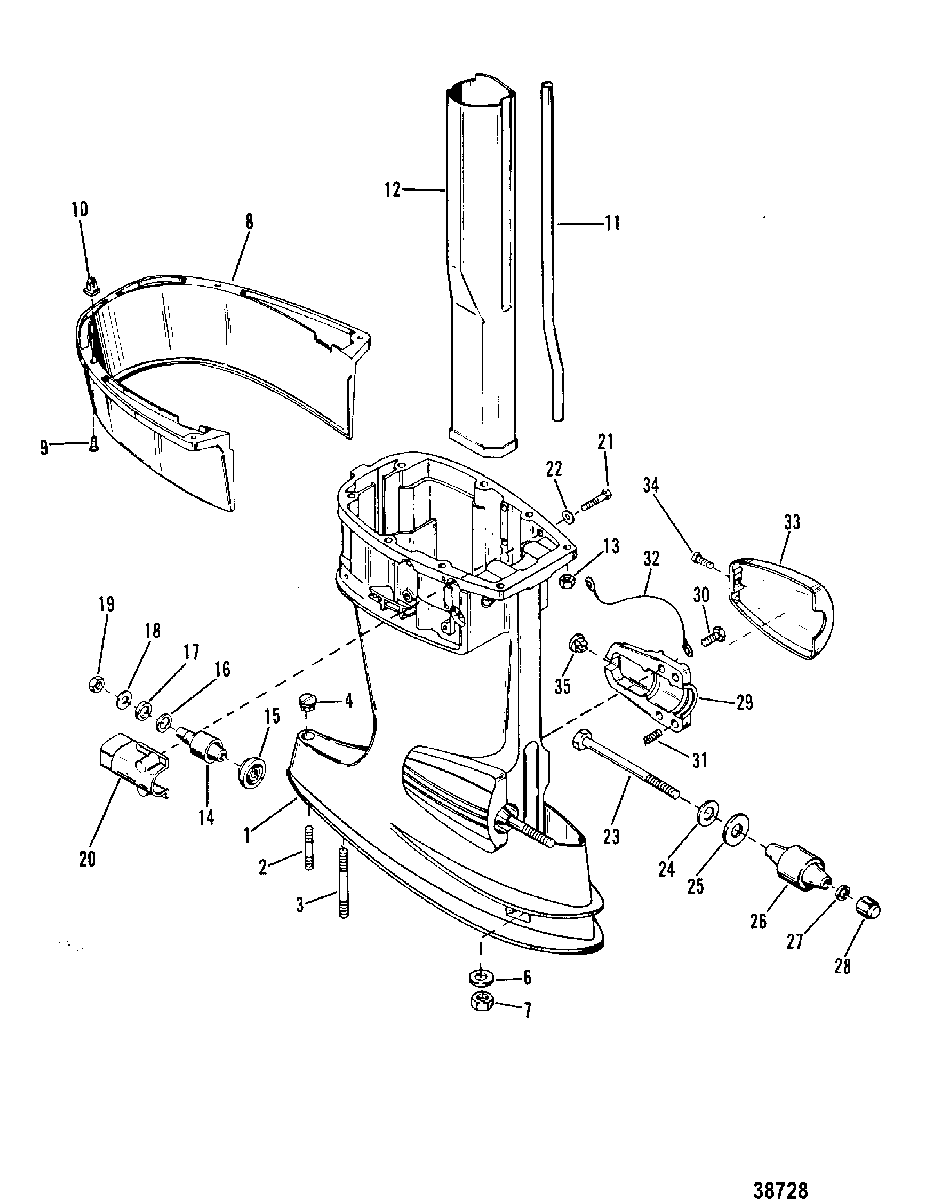

Driveshaft Housing(Short)(Long-0C159199 and Below) для Mercury - 35 9466647 & Up
-
№АртикулНазвание
-
11592-8188A8 HOUSING ASSEMBLY, Driveshaft
(SHORT SHAFT)(NON POWER TRIM)HOUSING ASSEMBLY, Driveshaft
(SHORT SHAFT)(NON POWER TRIM) -
11593-7513A12 HOUSING ASSEMBLY, Driveshaft
(LONG SHAFT)(NON POWER TRIM)HOUSING ASSEMBLY, Driveshaft
(LONG SHAFT)(NON POWER TRIM) -
11593-8189A10 HOUSING ASSEMBLY, Driveshaft
(POWER TRIM)HOUSING ASSEMBLY, Driveshaft
(POWER TRIM) -
216-8M0022145 STUD, (.375-16/.375-24 x 1.750), DRIVESHAFT HOUSINGSTUD, (.375-16/.375-24 x 1.750), DRIVESHAFT HOUSING
-
316-57935 STUD, DRIVESHAFT HOUSING (3")STUD, DRIVESHAFT HOUSING (3")
-
419-64649 PLUG, PLASTIC - WATER PICK-UP HOLEPLUG, PLASTIC - WATER PICK-UP HOLE
-
612-65791 WASHER, GEAR HOUSING STUDSWASHER, GEAR HOUSING STUDS
-
711-34933 NUT, (.437-20) Stainless Steel, GEAR HOUSING STUDSNUT, (.437-20) Stainless Steel, GEAR HOUSING STUDS
-
860769 COVER, TRIM - DRIVESHAFT HOUSINGCOVER, TRIM - DRIVESHAFT HOUSING
-
910-57807 SCREW, (#10-16 x .750) Stainless Steel, TRIM COVER TO DRIVESHAFT HOUSINGSCREW, (#10-16 x .750) Stainless Steel, TRIM COVER TO DRIVESHAFT HOUSING
-
1025-8M0079730 GROMMET, TRIM COVER SCREWGROMMET, TRIM COVER SCREW
-
1132-37727 TUBE, WATER OUTLET
(SHORT SHAFT)TUBE, WATER OUTLET
(SHORT SHAFT) -
1132-45679 TUBE, WATER OUTLET
(LONG SHAFT)TUBE, WATER OUTLET
(LONG SHAFT) -
12695431 TUBE, EXHAUST
(SHORT SHAFT)TUBE, EXHAUST
(SHORT SHAFT) -
12695441 TUBE, EXHAUST
(LONG SHAFT)TUBE, EXHAUST
(LONG SHAFT) -
1311-64809 NUT, POWERHEAD STUDSNUT, POWERHEAD STUDS
-
14923373 MOUNT, RUBBER - UPPERMOUNT, RUBBER - UPPER
-
1596401 SEAL, BELLOWS - UPPER MOUNTSEAL, BELLOWS - UPPER MOUNT
-
1612-27727 WASHER, UPPER MOUNT BOLT (37/64 I.D.)WASHER, UPPER MOUNT BOLT (37/64 I.D.)
-
1712-66966 WASHER, RUBBER - UPPER MOUNT BOLTWASHER, RUBBER - UPPER MOUNT BOLT
-
1812-30514 WASHER, UPPER MOUNT BOLTWASHER, UPPER MOUNT BOLT
-
1911-34933 NUT, (.437-20) Stainless Steel, UPPER MOUNT BOLTNUT, (.437-20) Stainless Steel, UPPER MOUNT BOLT
-
2087883 COVER, UPPER MOUNTCOVER, UPPER MOUNT
-
2110-76630 SCREW, (.250-20 x 1.00), UPPER MOUNT COVERSCREW, (.250-20 x 1.00), UPPER MOUNT COVER
-
2212-29245 WASHER, (.281 x .500 x .060) Stainless Steel, UPPER MOUNT COVER SCREWWASHER, (.281 x .500 x .060) Stainless Steel, UPPER MOUNT COVER SCREW
-
2310-75284 SCREW, (.500-20 x 5.500)
(NON POWER TRIM)SCREW, (.500-20 x 5.500)
(NON POWER TRIM) -
2310-43426 SCREW, (5-3/4")
(POWER TRIM)SCREW, (5-3/4")
(POWER TRIM) -
2412-28051 WASHER, LOWER MOUNT SCREW
(Use where Applicable)WASHER, LOWER MOUNT SCREW
(Use where Applicable) -
2512-28053 WASHER, RUBBER
(Use where Applicable)WASHER, RUBBER
(Use where Applicable) -
2675302T1 MOUNT, RUBBER-LOWERMOUNT, RUBBER-LOWER
-
2712-30119 WASHER, (.875 Inch Outside Diameter), LOWER MOUNT SCREWWASHER, (.875 Inch Outside Diameter), LOWER MOUNT SCREW
-
2811-25096 NUT, LOWER MOUNT SCREWNUT, LOWER MOUNT SCREW
-
2969592F1 CLAMP, LOWER TO DRIVE SHAFT HOUSINGCLAMP, LOWER TO DRIVE SHAFT HOUSING
-
3010-29256 SCREW, (.312-18 x .875), LOWER MOUNT CLAMPSCREW, (.312-18 x .875), LOWER MOUNT CLAMP
-
3124-35522 SPRING, TENSION - LOWER MOUNT CLAMPSPRING, TENSION - LOWER MOUNT CLAMP
-
3288238A10 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
3335474T COVER, LOWER MOUNT CLAMPCOVER, LOWER MOUNT CLAMP
-
3410-87884 SCREW, (#12-14 x .920), COVER TO LOWER CLAMPSCREW, (#12-14 x .920), COVER TO LOWER CLAMP
-
3511-35521 NUT, LOWER MOUNT CLAMP COVERNUT, LOWER MOUNT CLAMP COVER
