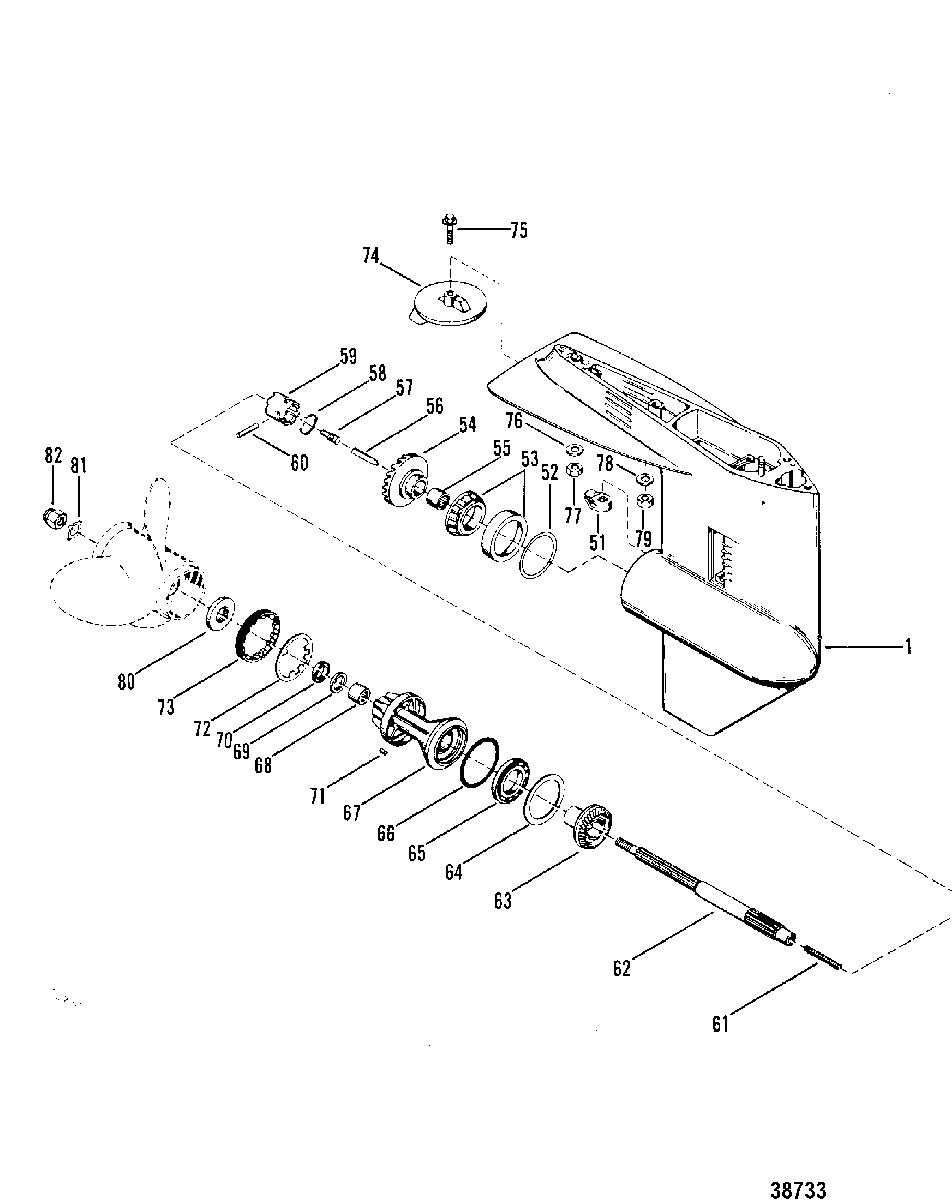

GEAR HOUSING(PROPELLER SHAFT) для Mercury - 35 9466647 & Up
-
№АртикулНазвание
-
-1643-9539A4 GEAR HOUSING ASSEMBLY
(SHORT SHAFT)GEAR HOUSING ASSEMBLY
(SHORT SHAFT) -
-1643-9539A5 GEAR HOUSING ASSEMBLY
(LONG SHAFT)GEAR HOUSING ASSEMBLY
(LONG SHAFT) -
11643-9539T1 GEAR HOUSING ASSEMBLYGEAR HOUSING ASSEMBLY
-
51760394 CAM, Shift ControlCAM, Shift Control
-
5215-38374A1 SHIM SET (.002-3-5-10)SHIM SET (.002-3-5-10)
-
5331-38356A1 BEARING SETBEARING SET
-
5443-55608T4 GEAR ASSEMBLY, ForwardGEAR ASSEMBLY, Forward
-
5531-21739 BEARING, Roller, FORWARD GEARBEARING, Roller, FORWARD GEAR
-
5638441 FOLLOWER, CamFOLLOWER, Cam
-
5720843 SLIDE, CROSS PINSLIDE, CROSS PIN
-
5824-38114 SPRING, RETAINING-CROSS PINSPRING, RETAINING-CROSS PIN
-
5952-92911T RATCHET, SLIDING CLUTCHRATCHET, SLIDING CLUTCH
-
6017-8M0020942 PIN, Cross, RATCHET TO PROPELLER SHAFTPIN, Cross, RATCHET TO PROPELLER SHAFT
-
6124-39845 SPRING
(PROP SHAFT I.D. IS .310")SPRING
(PROP SHAFT I.D. IS .310") -
6124-815418 SPRING
(PROP SHAFT I.D. IS .373")SPRING
(PROP SHAFT I.D. IS .373") -
6244-75365 PROPELLER SHAFTPROPELLER SHAFT
-
6343-79158T GEAR, ReverseGEAR, Reverse
-
6412-32004 WASHER, THRUST-REVERSE GEARWASHER, THRUST-REVERSE GEAR
-
6530-20839T BEARING, Ball, REVERSE GEARBEARING, Ball, REVERSE GEAR
-
6625-31986 O-RING, BEARING CARRIERO-RING, BEARING CARRIER
-
6769386T1 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
6831-21700 BEARING, Needle, BEARING CARRIERBEARING, Needle, BEARING CARRIER
-
6926-69188 SEAL, Oil, BEARING CARRIERSEAL, Oil, BEARING CARRIER
-
7026-69189 SEAL, Oil, BEARING CARRIERSEAL, Oil, BEARING CARRIER
-
7128-30281 KEY, LOCATING-BEARING CARRIERKEY, LOCATING-BEARING CARRIER
-
7214-53012 TAB WASHER, GEAR HOUSING COVERTAB WASHER, GEAR HOUSING COVER
-
7311-87763 NUT, GEAR HOUSINGNUT, GEAR HOUSING
-
7497-31640Q4 TRIM TAB ASSEMBLY, GEAR HOUSINGTRIM TAB ASSEMBLY, GEAR HOUSING
-
7510-66024 SCREW, (.437-14 x 1.75), TRIM TAB TO GEAR HOUSINGSCREW, (.437-14 x 1.75), TRIM TAB TO GEAR HOUSING
-
7612-856774 WASHER, (.406 x .750 x .104), DRIVE SHAFT HOUSING STUD (3/8")WASHER, (.406 x .750 x .104), DRIVE SHAFT HOUSING STUD (3/8")
-
7711-8M0042636 NUT, (.375-24), DRIVE SHAFT HOUSING STUDNUT, (.375-24), DRIVE SHAFT HOUSING STUD
-
7812-65791 WASHER, HOUSING TO STUDWASHER, HOUSING TO STUD
-
7911-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
8073345A1 THRUST HUB, FRONTTHRUST HUB, FRONT
-
8114-76281 TAB WASHER, PROPELLER NUTTAB WASHER, PROPELLER NUT
-
8211-69578Q1 PROP NUT KITPROP NUT KIT
-
-26-79831A1 SEAL KITSEAL KIT
-
-27-85489A87 GASKET SETGASKET SET
