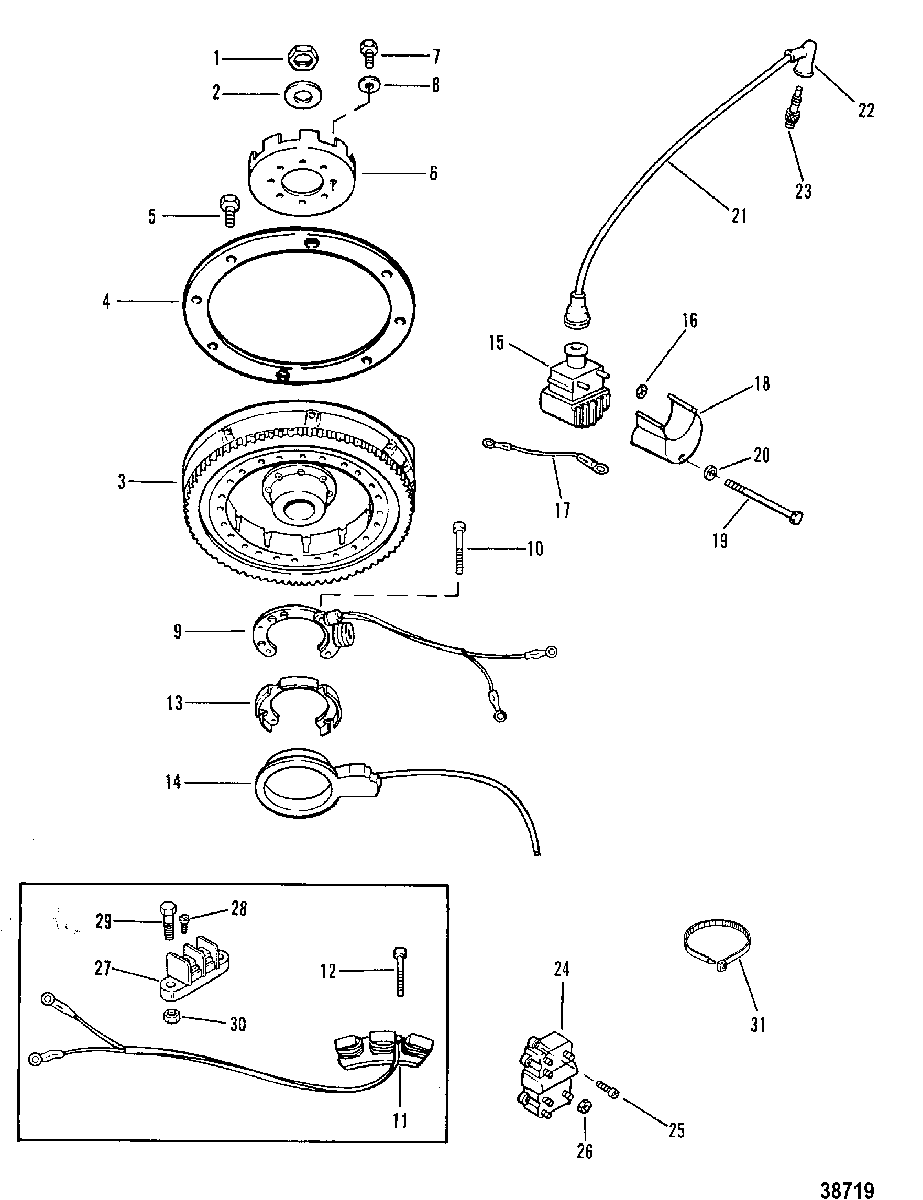

FLYWHEEL, IGNITION COIL AND SWITCH BOX для Mercury - 35 9466647 & Up

  • №
    Артикул
    Название
  • 1
    11-22339 NUT, (.625-18), FLYWHEEL
    NUT, (.625-18), FLYWHEEL
  • 2
    12-33001 WASHER, (.641 x 1.250 x .190), FLYWHEEL NUT
    WASHER, (.641 x 1.250 x .190), FLYWHEEL NUT
  • 3
    242-7912A14 FLYWHEEL ASSEMBLY
    (MANUAL)
    FLYWHEEL ASSEMBLY
    (MANUAL)
  • 3
    242-7912A12 FLYWHEEL ASSEMBLY
    (ELECTRIC - 77 TEETH)
    FLYWHEEL ASSEMBLY
    (ELECTRIC - 77 TEETH)
  • 4
    41409A1 INERTIA RING ASSEMBLY
    INERTIA RING ASSEMBLY
  • 5
    10-32417 SCREW, (.250-28 x .625), FLYWHEEL
    SCREW, (.250-28 x .625), FLYWHEEL
  • 6
    50-65213 RATCHET, FLYWHEEL
    (MANUAL)
    RATCHET, FLYWHEEL
    (MANUAL)
  • 7
    10-68997 SCREW, (.312-24 x .750), RATCHET TO FLYWHEEL
    (MANUAL)
    SCREW, (.312-24 x .750), RATCHET TO FLYWHEEL
    (MANUAL)
  • 8
    13-20202 LOCKWASHER, RATCHET SCREW
    (MANUAL)
    LOCKWASHER, RATCHET SCREW
    (MANUAL)
  • 9
    86617A20 STATOR ASSEMBLY (BULLET CONNECTORS)
    STATOR ASSEMBLY (BULLET CONNECTORS)
  • 10
    10-77363 SCREW, (#10-24 x 1.50), STATOR TO UPPER END CAP
    SCREW, (#10-24 x 1.50), STATOR TO UPPER END CAP
  • 10
    10-19926100 SCREW, (#10-24 x 1.00), STATOR TO UPPER END CAP
    SCREW, (#10-24 x 1.00), STATOR TO UPPER END CAP
  • 11
    86704A10 STATOR ASSEMBLY, CHARGING
    STATOR ASSEMBLY, CHARGING
  • 12
    10-93787 SCREW, (#10-24 x 1.750), STATOR TO UPPER END CAP
    SCREW, (#10-24 x 1.750), STATOR TO UPPER END CAP
  • 13
    95707 SUPPORT, Stator
    SUPPORT, Stator
  • 14
    92431A6 TRIGGER PLATE (BULLET CONNECTORS)
    TRIGGER PLATE (BULLET CONNECTORS)
  • 15
    339-832757A4 COIL ASSEMBLY, Ignition
    COIL ASSEMBLY, Ignition
  • 16
    11-45076 NUT, (#10-32) Brass, COIL TERMINAL
    NUT, (#10-32) Brass, COIL TERMINAL
  • 17
    84-60466A8 CABLE ASSEMBLY, Black, COIL COVER SCREW
    CABLE ASSEMBLY, Black, COIL COVER SCREW
  • 18
    76254 COVER, IGNITION COIL
    COVER, IGNITION COIL
  • 19
    10-93460 SCREW, (.190-24 x 2.125), COVER TO COIL BRACKET
    SCREW, (.190-24 x 2.125), COVER TO COIL BRACKET
  • 20
    12-38833 WASHER, COIL COVER SCREW
    WASHER, COIL COVER SCREW
  • 21
    84-813715A4 LEAD ASSEMBLY, High Tension
    LEAD ASSEMBLY, High Tension
  • 22
    85-63709A1 BOOT/TERMINAL KIT
    BOOT/TERMINAL KIT
  • 23
    33-97180Q SPARK PLUG
    SPARK PLUG
  • 23
    33-14103550 SPARK PLUG, (NGK-BUZHW)
    (Canada/Belgium
    SPARK PLUG, (NGK-BUZHW)
    (Canada/Belgium
  • 24
    339-7452A21 SWITCHBOX ASSEMBLY (BULLET CONNECTORS)
    SWITCHBOX ASSEMBLY (BULLET CONNECTORS)
  • 25
    10-23015 SCREW, (.190-32 x 1.00)
    SCREW, (.190-32 x 1.00)
  • 26
    11-45076 NUT, (#10-32) Brass, SWITCH BOX TERMINAL
    NUT, (#10-32) Brass, SWITCH BOX TERMINAL
  • 27
    86-638131 TERMINAL BLOCK
    (MANUAL)
    TERMINAL BLOCK
    (MANUAL)
  • 28
    10-62568 SCREW, (#10-16 x .375)
    (MANUAL)
    SCREW, (#10-16 x .375)
    (MANUAL)
  • 29
    10-38055 SCREW, (.190-32 x .620)
    (MANUAL)
    SCREW, (.190-32 x .620)
    (MANUAL)
  • 30
    11-27164 NUT AND LOCKWASHER, (#10-32)
    (MANUAL)
    NUT AND LOCKWASHER, (#10-32)
    (MANUAL)
  • 31
    69355 TIE STRAP, (5.50 Inches)
    TIE STRAP, (5.50 Inches)
