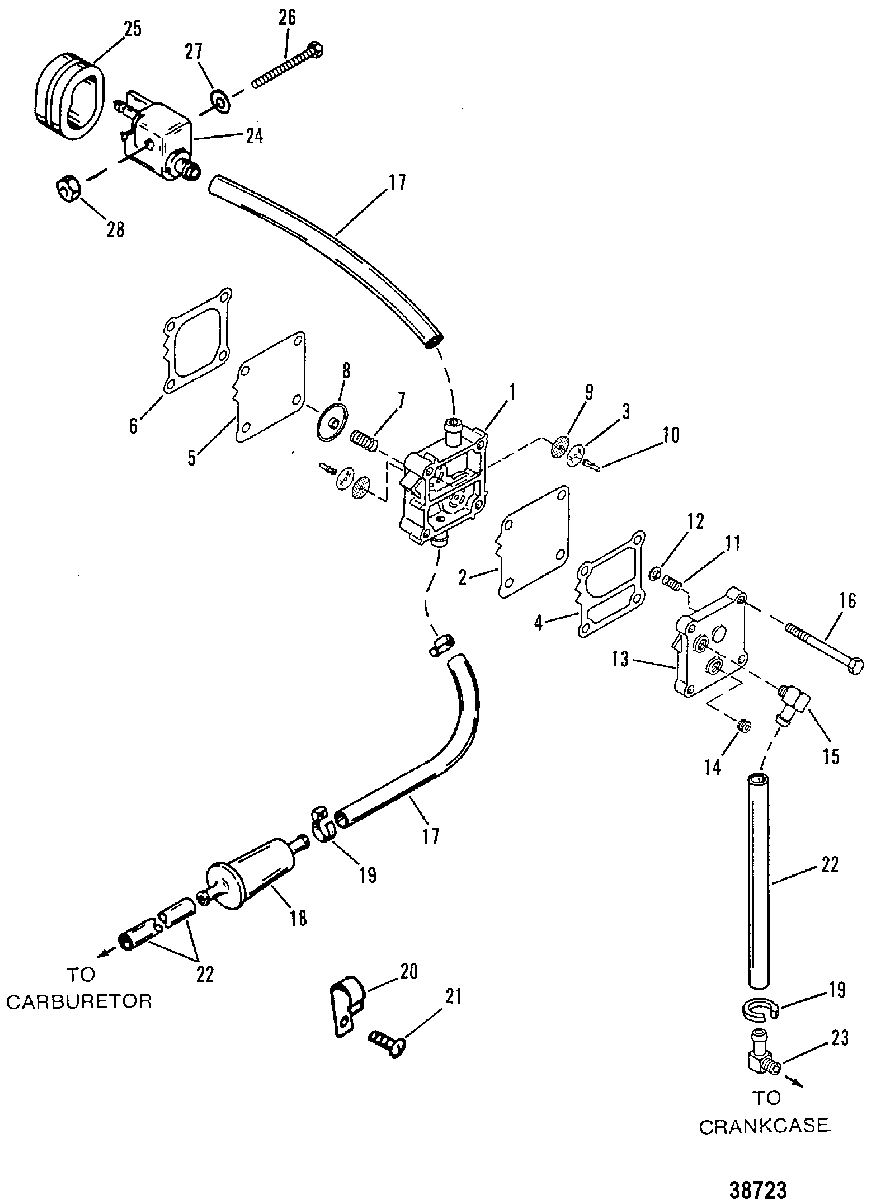

FUEL PUMP для Mercury - 35 9466647 & Up

  • №
    Артикул
    Название
  • 1
    14360A78 PUMP ASSEMBLY, Fuel
    PUMP ASSEMBLY, Fuel
  • 2
    21-857005A1 DIAPHRAGM KIT
    DIAPHRAGM KIT
  • 3
    NSS NOT SOLD SEPARATE, Check Valve-Rubber
    NOT SOLD SEPARATE, Check Valve-Rubber
  • 4
    NSS NOT SOLD SEPARATE, Gasket-Boost
    NOT SOLD SEPARATE, Gasket-Boost
  • 5
    NSS NOT SOLD SEPARATE, Diaphragm
    NOT SOLD SEPARATE, Diaphragm
  • 6
    NSS NOT SOLD SEPARATE, Gasket-Pulse
    NOT SOLD SEPARATE, Gasket-Pulse
  • 7
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 8
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 9
    NSS NOT SOLD SEPARATE, Disc-Rubber
    NOT SOLD SEPARATE, Disc-Rubber
  • 10
    NSS NOT SOLD SEPARATE, Retainer
    NOT SOLD SEPARATE, Retainer
  • 11
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 12
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 13
    987752 PLATE, FUEL PUMP
    PLATE, FUEL PUMP
  • 14
    22-56800 PLUG, Pipe (.0625-27)
    PLUG, Pipe (.0625-27)
  • 15
    22-19688 FITTING
    FITTING
  • 16
    10-16562 SCREW, (#12-24 x 1.50), FUEL PUMP
    SCREW, (#12-24 x 1.50), FUEL PUMP
  • 16
    10-40057132 SCREW, FUEL PUMP (6 MM)
    SCREW, FUEL PUMP (6 MM)
  • 17
    32-8M0108349 TUBING
    TUBING
  • 18
    35-816296Q2 FILTER, Fuel
    FILTER, Fuel
  • 19
    54-816311T TIE STRAP, (8.00 Inches), FUEL TUBING
    TIE STRAP, (8.00 Inches), FUEL TUBING
  • 20
    54-55098 J CLIP
    J CLIP
  • 21
    10-41508 SCREW, (.250-20 x .500) Stainless Steel
    SCREW, (.250-20 x .500) Stainless Steel
  • 22
    32-8M0108355 LINE, (57.00 Inches Bulk)
    LINE, (57.00 Inches Bulk)
  • 23
    22-19688 FITTING, FUEL LINE
    FITTING, FUEL LINE
  • 24
    22-816856Q3 CONNECTOR, Fuel - Metal
    CONNECTOR, Fuel - Metal
  • 24
    22-816856Q3 CONNECTOR ASSEMBLY, Fuel - Plastic
    CONNECTOR ASSEMBLY, Fuel - Plastic
  • 25
    25-14579 GROMMET
    (Use with Metal Fuel Connector)
    GROMMET
    (Use with Metal Fuel Connector)
  • 25
    25-15102001 GROMMET
    (Use with Plastic Fuel Connector
    GROMMET
    (Use with Plastic Fuel Connector
  • 26
    10-20784 SCREW, FUEL CONNECTOR
    SCREW, FUEL CONNECTOR
  • 27
    12-71055 WASHER, FUEL CONNECTOR SCREW
    WASHER, FUEL CONNECTOR SCREW
  • 28
    11-36069 NUT, FUEL CONNECTOR SCREW
    NUT, FUEL CONNECTOR SCREW
