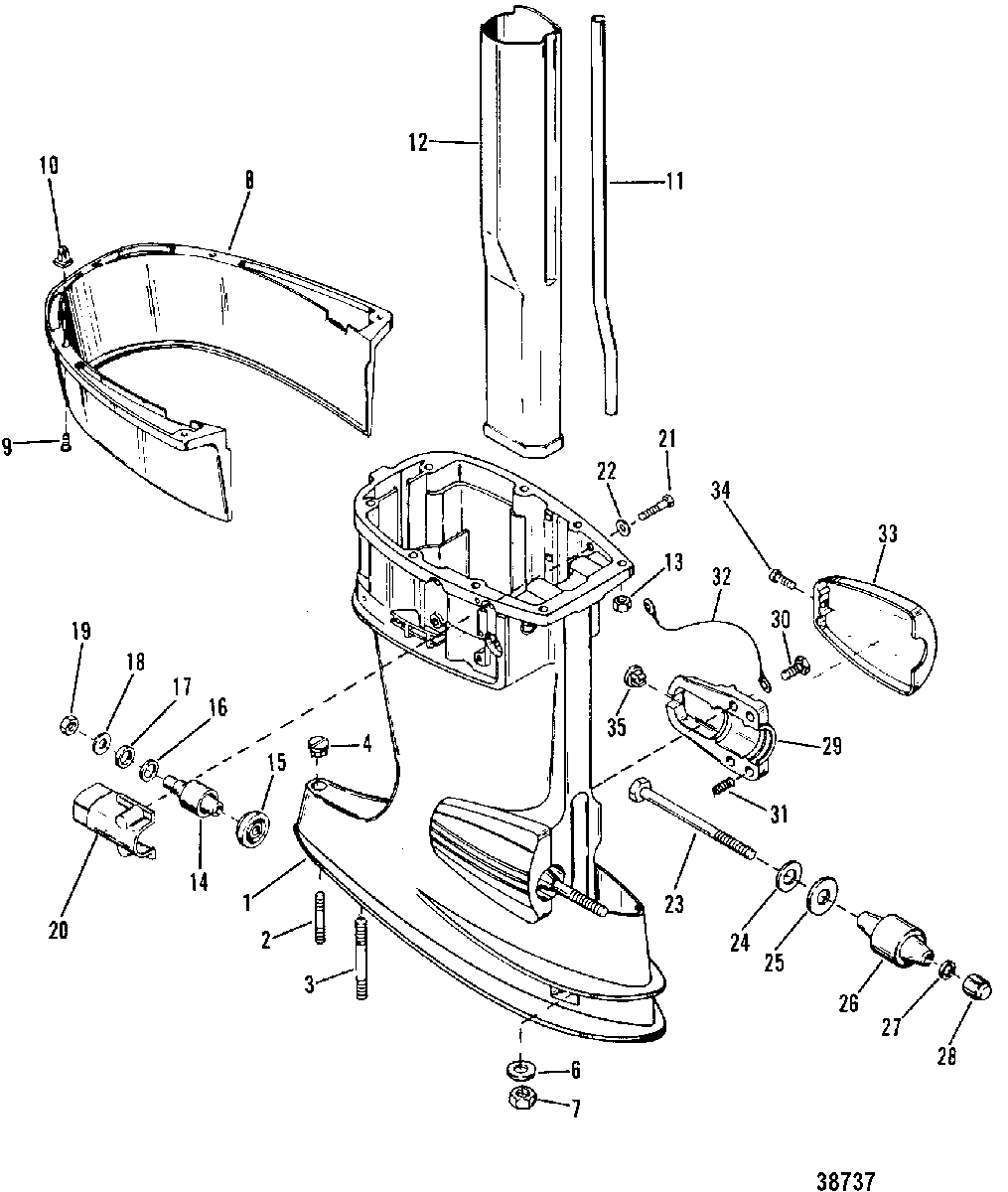

DRIVESHAFT HOUSING(LONG SHAFT)(0C159200 AND UP) для Mercury - 35 9466647 & Up

  • №
    Артикул
    Название
  • 1
    1593-8189A12 HOUSING ASSEMBLY, Driveshaft
    HOUSING ASSEMBLY, Driveshaft
  • 2
    16-8M0022145 STUD, (.375-16/.375-24 x 1.750), DRIVESHAFT HOUSING
    STUD, (.375-16/.375-24 x 1.750), DRIVESHAFT HOUSING
  • 3
    16-57935 STUD, DRIVESHAFT HOUSING (3")
    STUD, DRIVESHAFT HOUSING (3")
  • 4
    19-64649 PLUG, PLASTIC- WATER PICK-UP HOLE
    PLUG, PLASTIC- WATER PICK-UP HOLE
  • 6
    12-65791 WASHER, GEAR HOUSING STUDS
    WASHER, GEAR HOUSING STUDS
  • 7
    11-34933 NUT, (.437-20) Stainless Steel, GEAR HOUSING STUDS
    NUT, (.437-20) Stainless Steel, GEAR HOUSING STUDS
  • 8
    60769 COVER, TRIM-DRIVESHAFT HOUSING
    COVER, TRIM-DRIVESHAFT HOUSING
  • 9
    10-57807 SCREW, (#10-16 x .750) Stainless Steel, TRIM COVER TO DRIVE SHAFT HOUSING
    SCREW, (#10-16 x .750) Stainless Steel, TRIM COVER TO DRIVE SHAFT HOUSING
  • 10
    25-8M0079730 GROMMET, TRIM COVER SCREW
    GROMMET, TRIM COVER SCREW
  • 11
    32-45679 TUBE, WATER OUTLET
    TUBE, WATER OUTLET
  • 12
    695441 TUBE, EXHAUST
    TUBE, EXHAUST
  • 13
    11-64809 NUT, POWERHEAD STUDS
    NUT, POWERHEAD STUDS
  • 14
    923373 MOUNT, RUBBER-UPPER
    MOUNT, RUBBER-UPPER
  • 15
    96401 SEAL, BELLOWS-UPPER MOUNT
    SEAL, BELLOWS-UPPER MOUNT
  • 16
    12-27727 WASHER, UPPER MOUNT BOLT (37-64 I.D.)
    WASHER, UPPER MOUNT BOLT (37-64 I.D.)
  • 17
    12-66966 WASHER, RUBBER-UPPER MOUNT BOLT
    WASHER, RUBBER-UPPER MOUNT BOLT
  • 18
    12-30514 WASHER, UPPER MOUNT BOLT
    WASHER, UPPER MOUNT BOLT
  • 19
    11-34933 NUT, (.437-20) Stainless Steel, UPPER MONT BOLT
    NUT, (.437-20) Stainless Steel, UPPER MONT BOLT
  • 20
    87883 COVER, UPPER MOUNT
    COVER, UPPER MOUNT
  • 21
    10-75284 SCREW, (.500-20 x 5.500), UPPER MOUNT COVER
    SCREW, (.500-20 x 5.500), UPPER MOUNT COVER
  • 22
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel, UPPER MOUNT COVER SCREW
    WASHER, (.281 x .500 x .060) Stainless Steel, UPPER MOUNT COVER SCREW
  • 23
    10-75284 SCREW, (.500-20 x 5.500), LOWER MOUNT SCREW
    SCREW, (.500-20 x 5.500), LOWER MOUNT SCREW
  • 24
    12-28051 WASHER, LOWER MOUNT SCREW
    (Use where applicable)
    WASHER, LOWER MOUNT SCREW
    (Use where applicable)
  • 25
    12-28053 WASHER, RUBBER
    (Use where applicable)
    WASHER, RUBBER
    (Use where applicable)
  • 26
    75302T1 MOUNT, RUBBER-LOWER
    MOUNT, RUBBER-LOWER
  • 27
    12-30119 WASHER, (.875 Inch Outside Diameter), LOWER MOUNT SCREW
    WASHER, (.875 Inch Outside Diameter), LOWER MOUNT SCREW
  • 28
    11-25096 NUT, LOWER MOUNT SCREW
    NUT, LOWER MOUNT SCREW
  • 29
    69592F1 CLAMP, LOWER MOUNT TO DRIVESHAFT HOUSING
    CLAMP, LOWER MOUNT TO DRIVESHAFT HOUSING
  • 30
    10-29256 SCREW, (.312-18 x .875), LOWER MOUNT CLAMP
    SCREW, (.312-18 x .875), LOWER MOUNT CLAMP
  • 31
    24-35522 SPRING, TENSION -LOWER MOUNT CLAMP
    SPRING, TENSION -LOWER MOUNT CLAMP
  • 32
    88238A10 CABLE ASSEMBLY, Ground
    CABLE ASSEMBLY, Ground
  • 33
    35474T COVER, LOWER MOUNT CLAMP
    COVER, LOWER MOUNT CLAMP
  • 34
    10-87884 SCREW, (#12-14 x .920), COVER TO LOWER CLAMP
    SCREW, (#12-14 x .920), COVER TO LOWER CLAMP
  • 35
    11-35521 NUT, LOWER MOUNT CLAMP COVER
    NUT, LOWER MOUNT CLAMP COVER
