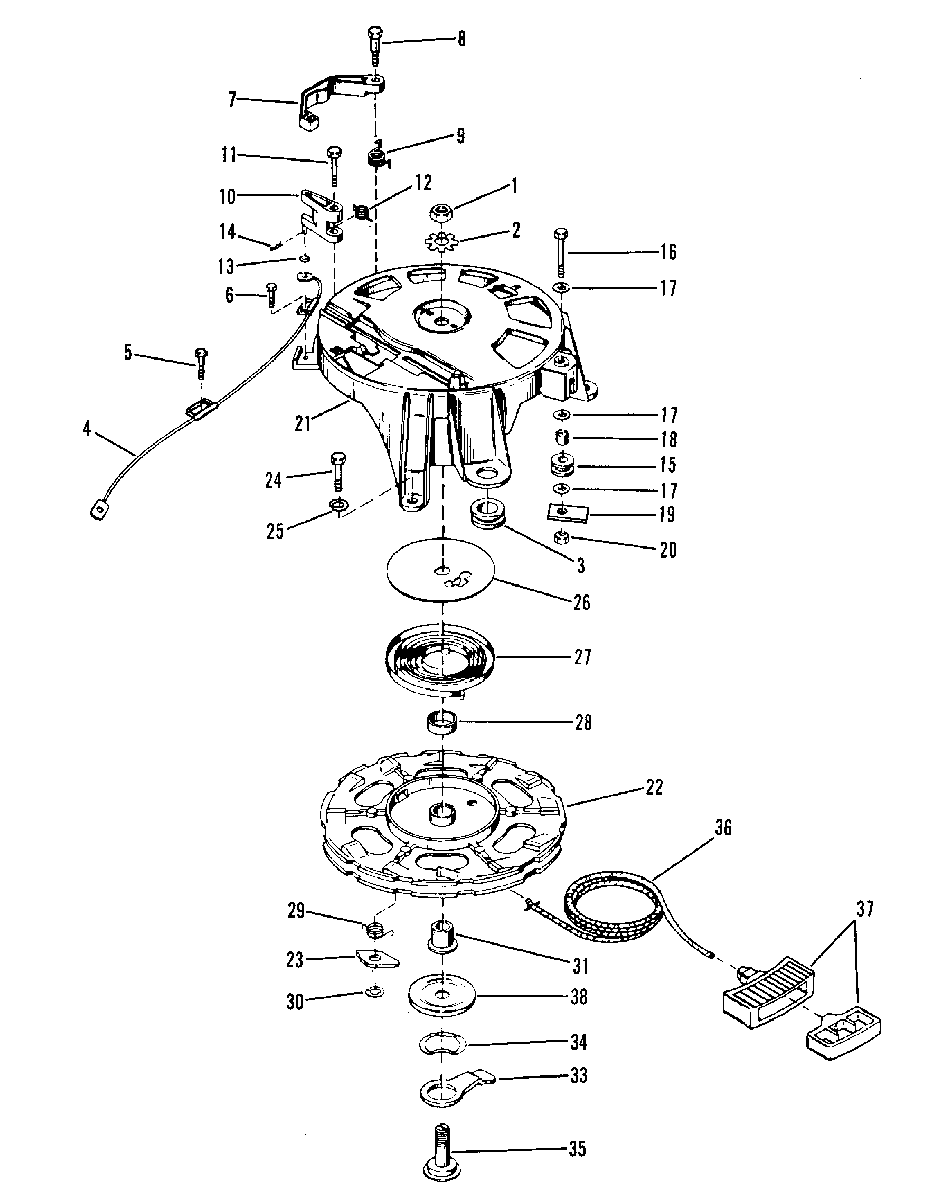

STARTER REWIND для Mercury - 35 9466647 & Up

  • №
    Артикул
    Название
  • 1
    11-20166 NUT, SHEAVE SHAFT (LEFT HAND THREAD)
    NUT, SHEAVE SHAFT (LEFT HAND THREAD)
  • 2
    14-61004 TAB WASHER, SHEAVE SHAFT NUT
    TAB WASHER, SHEAVE SHAFT NUT
  • 3
    25-39597 GROMMET, STARTER HOUSING
    GROMMET, STARTER HOUSING
  • 4
    76141 CABLE ASSEMBLY, INTERLOCK
    (MANUAL)
    CABLE ASSEMBLY, INTERLOCK
    (MANUAL)
  • 5
    10-32228 SCREW, (#10-32 x .625)
    (MANUAL)
    SCREW, (#10-32 x .625)
    (MANUAL)
  • 6
    10-69022 SCREW, (#10-32 x .500) Stainless Steel
    (MANUAL)
    SCREW, (#10-32 x .500) Stainless Steel
    (MANUAL)
  • 7
    428201 CAM, INTERLOCK
    (MANUAL)
    CAM, INTERLOCK
    (MANUAL)
  • 8
    10-76138 SCREW, (.312-18 x 1.120)
    (MANUAL)
    SCREW, (.312-18 x 1.120)
    (MANUAL)
  • 9
    24-761401 SPRING
    (MANUAL)
    SPRING
    (MANUAL)
  • 10
    79371 ACTUATOR, INTERLOCK
    (MANUAL)
    ACTUATOR, INTERLOCK
    (MANUAL)
  • 11
    10-76137 SCREW (1-5/8")
    (MANUAL)
    SCREW (1-5/8")
    (MANUAL)
  • 12
    24-76139 SPRING
    (MANUAL)
    SPRING
    (MANUAL)
  • 13
    12-30191 WASHER
    (MANUAL)
    WASHER
    (MANUAL)
  • 14
    18-26811 COTTER PIN
    (MANUAL)
    COTTER PIN
    (MANUAL)
  • 15
    55860 PULLEY, STARTER
    PULLEY, STARTER
  • 16
    10-45210 SCREW, (.190-32 x 1.250)
    SCREW, (.190-32 x 1.250)
  • 17
    12-22887 WASHER, PULLEY SCREW
    WASHER, PULLEY SCREW
  • 18
    23-309772 SPACER, PULLEY SCREW
    SPACER, PULLEY SCREW
  • 19
    94121 RETAINER, STARTER ROPE
    RETAINER, STARTER ROPE
  • 20
    11-24656 NUT, PULLEY SCREW
    NUT, PULLEY SCREW
  • 21
    760792 HOUSING, Starter
    HOUSING, Starter
  • 22
    50-44255A1 SHEAVE ASSEMBLY, Starter
    SHEAVE ASSEMBLY, Starter
  • 23
    44508 PAWL, Starter
    PAWL, Starter
  • 24
    10-88759 SCREW (1")
    SCREW (1")
  • 24
    10-88760 SCREW, (.312-18 x 1.250)
    SCREW, (.312-18 x 1.250)
  • 25
    13-26993 LOCKWASHER, (.312), STARTER HOUSING SCREW
    LOCKWASHER, (.312), STARTER HOUSING SCREW
  • 26
    61002 PLATE, STARTER REWIND
    PLATE, STARTER REWIND
  • 27
    24-39502T02 SPRING, STARTER REWIND
    SPRING, STARTER REWIND
  • 28
    23-87649 BUSHING, SPRING GUIDE
    BUSHING, SPRING GUIDE
  • 29
    24-87651 SPRING, STARTER PAWL
    SPRING, STARTER PAWL
  • 30
    53-87706 E RING, STARTER PAWL
    E RING, STARTER PAWL
  • 31
    23-63061 SPACER, SHEAVE SHAFT
    SPACER, SHEAVE SHAFT
  • 33
    94962 LEVER
    LEVER
  • 34
    13-20160 WAVE WASHER
    WAVE WASHER
  • 35
    87656 SHEAVE SHAFT
    SHEAVE SHAFT
  • 36
    50-12066Q10 ROPE
    ROPE
  • 36
    47341A11 ROPE AND HANDLE KIT, Manual/Emergency Start
    (FOR MANUAL STARTING)
    ROPE AND HANDLE KIT, Manual/Emergency Start
    (FOR MANUAL STARTING)
  • 37
    79470A1 RETAINER KIT, Rope
    RETAINER KIT, Rope
  • 38
    12-35559 WASHER
    WASHER
  • -
    76079A8 STARTER ASSEMBLY, Rewind
    STARTER ASSEMBLY, Rewind
