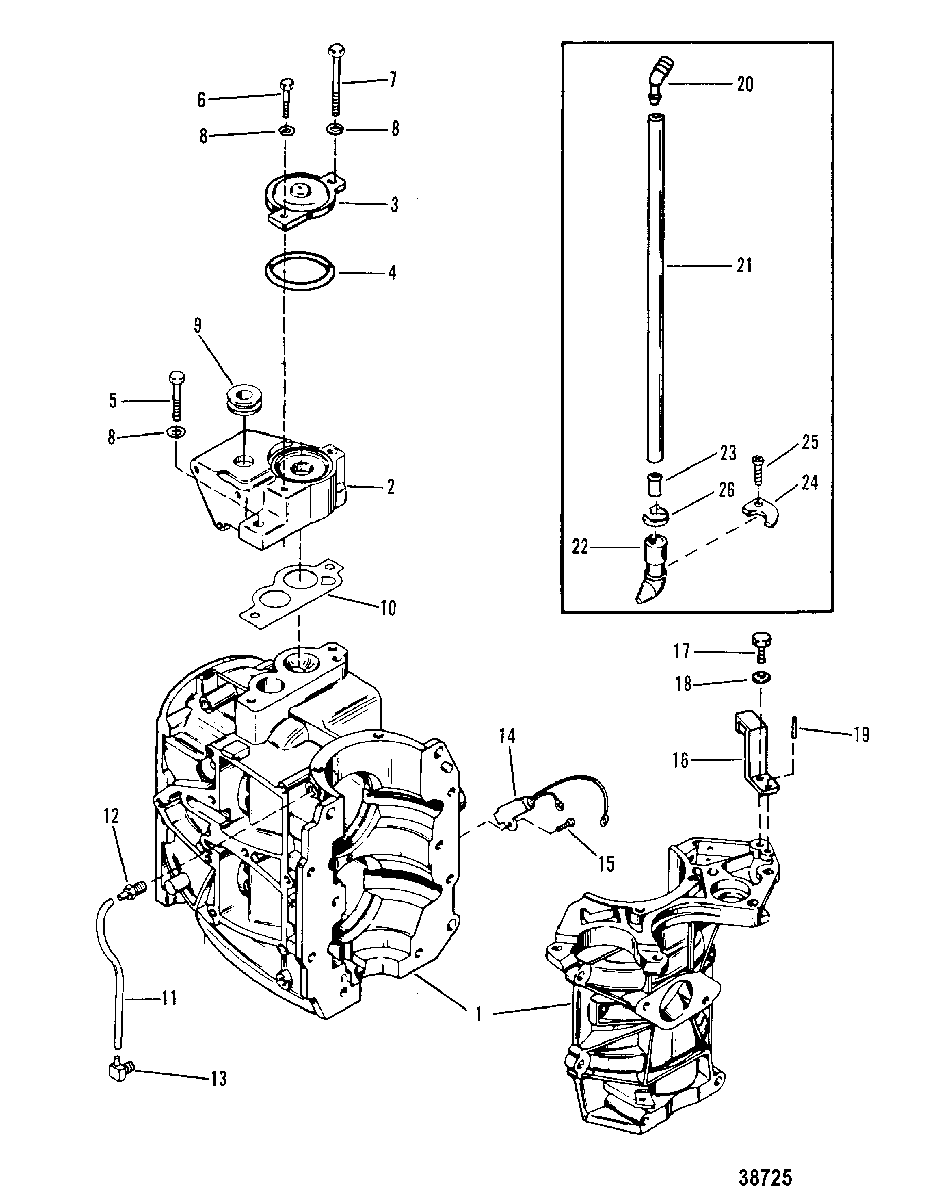

CYLINDER BLOCK AND THERMOSTAT для Mercury - 35 9466647 & Up

  • №
    Артикул
    Название
  • 1
    851-7940A6 CYLINDER BLOCK/CRANKCASE
    CYLINDER BLOCK/CRANKCASE
  • 2
    66843T BRACKET, COIL MOUNTING
    BRACKET, COIL MOUNTING
  • 3
    99436A1 COVER ASSEMBLY, COIL BRACKET
    COVER ASSEMBLY, COIL BRACKET
  • 4
    25-823683 O-RING, COVER
    O-RING, COVER
  • 5
    10-31984 SCREW, (.312-18 x 1.375)
    SCREW, (.312-18 x 1.375)
  • 6
    10-30225 SCREW AND LOCKWASHER, (.312-18 x 1.00)
    SCREW AND LOCKWASHER, (.312-18 x 1.00)
  • 7
    10-58414 SCREW (2-1/2")
    SCREW (2-1/2")
  • 8
    13-26993 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 9
    25-39597 GROMMET, COIL MOUNTING BRACKET
    GROMMET, COIL MOUNTING BRACKET
  • 10
    27-66847 GASKET, COIL MOUNTING BRACKET TO BLOCK
    GASKET, COIL MOUNTING BRACKET TO BLOCK
  • 11
    32-9938779 HOSE, CYLINDER BLEED (8")
    HOSE, CYLINDER BLEED (8")
  • 12
    21-42866 CHECK VALVE, CYLINDER BLEED (TOP)
    CHECK VALVE, CYLINDER BLEED (TOP)
  • 13
    21-42863 CHECK VALVE, CYLINDER BLEED (BOTTOM)
    CHECK VALVE, CYLINDER BLEED (BOTTOM)
  • 14
    58124A27 SWITCH (BULLET CONNECTORS)
    SWITCH (BULLET CONNECTORS)
  • 15
    10-62568 SCREW, (#10-16 x .375), MERCURY SWITCH TO EXHAUST COVER
    SCREW, (#10-16 x .375), MERCURY SWITCH TO EXHAUST COVER
  • 16
    76184 INDICATOR, TIMING
    (ELECTRIC)
    INDICATOR, TIMING
    (ELECTRIC)
  • 17
    10-25299 SCREW, (.312-18 x .75)
    (ELECTRIC)
    SCREW, (.312-18 x .75)
    (ELECTRIC)
  • 18
    12-20084 WASHER, (.328 x .562 x .062)
    (ELECTRIC)
    WASHER, (.328 x .562 x .062)
    (ELECTRIC)
  • 19
    17-29908 PIN
    (ELECTRIC)
    PIN
    (ELECTRIC)
  • 20
    22-782792 ELBOW, TELL TALE HOSE TO BLOCK
    ELBOW, TELL TALE HOSE TO BLOCK
  • 21
    32-7568058 HOSE, (15.00 Inches), TELL TALE (6")
    HOSE, (15.00 Inches), TELL TALE (6")
  • 22
    69791 NOZZLE, TELL TALE HOSE TO COWL
    NOZZLE, TELL TALE HOSE TO COWL
  • 23
    23-90882 SLEEVE, NOZZLE
    SLEEVE, NOZZLE
  • 24
    66849 CLAMP, NOZZLE
    CLAMP, NOZZLE
  • 25
    10-48409 SCREW, (#10-16 x .625) Stainless Steel, CLAMP/SWITCH
    SCREW, (#10-16 x .625) Stainless Steel, CLAMP/SWITCH
  • 26
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • -
    27-85489A87 GASKET SET
    GASKET SET
