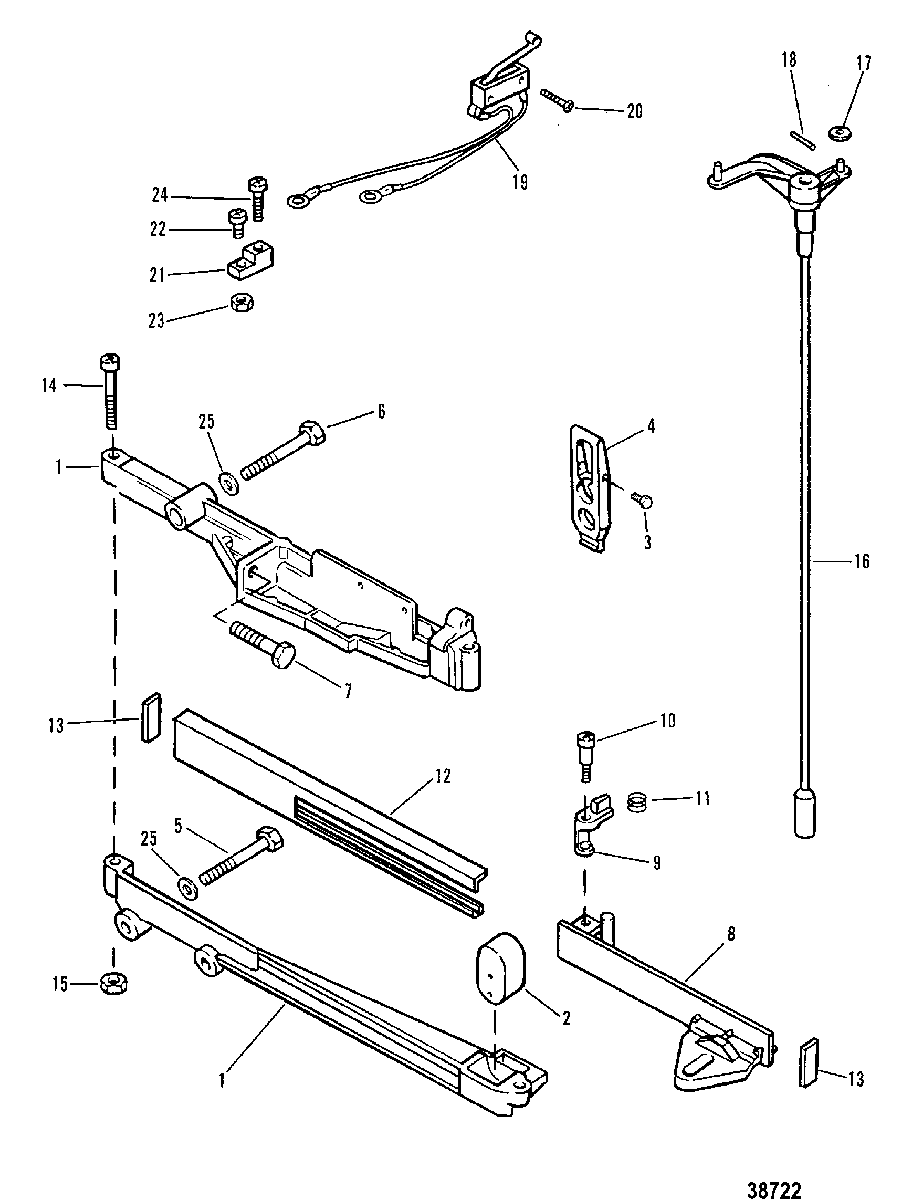

SHIFT CONTROL LINKAGE для Mercury - 35 9466647 & Up
-
№АртикулНазвание
-
187876A2 SHIFT ANCHOR BACKET (UPPER)SHIFT ANCHOR BACKET (UPPER)
-
239519 CUPCUP
-
310-42975 DRIVE SCREWDRIVE SCREW
-
498889 LATCHLATCH
-
510-73657 SCREW, (.312-18 x 1.50)SCREW, (.312-18 x 1.50)
-
610-67450 SCREW, (.312-18 x 2.250)SCREW, (.312-18 x 2.250)
-
710-35385 SCREW, (.312-18 x 1-3/4)SCREW, (.312-18 x 1-3/4)
-
887874 SLIDESLIDE
-
956193 LATCH (SHIFT CABLE)LATCH (SHIFT CABLE)
-
1010-39620 SCREWSCREW
-
1124-27087 SPRINGSPRING
-
1275717 SLIDESLIDE
-
1339515 END CAPEND CAP
-
1410-20012 SCREW, (.250-28 x 1.62)SCREW, (.250-28 x 1.62)
-
1511-826709109 NUT, (.250-28)NUT, (.250-28)
-
1675104A7 SHIFT SHAFT ASSEMBLY
(SHORT SHAFT)SHIFT SHAFT ASSEMBLY
(SHORT SHAFT) -
1675104A8 SHIFT SHAFT ASSEMBLY
(LONG SHAFT)SHIFT SHAFT ASSEMBLY
(LONG SHAFT) -
1712-37998 WASHER
(MANUAL)WASHER
(MANUAL) -
1818-26811 COTTER PIN
(MANUAL)COTTER PIN
(MANUAL) -
1987-88096A1 SWITCH ASSEMBLY
(ELECTRIC TILLER HANDLE)SWITCH ASSEMBLY
(ELECTRIC TILLER HANDLE) -
2010-30902 SCREW, (#6-32 x .750)
(ELECTRIC TILLER HANDLE)SCREW, (#6-32 x .750)
(ELECTRIC TILLER HANDLE) -
2186-45915 TERMINAL BLOCK
(ELECTRIC TILLER HANDLE)TERMINAL BLOCK
(ELECTRIC TILLER HANDLE) -
2210-25764 SCREW, (.190-32 x .50)
(ELECTRIC TILLER HANDLE)SCREW, (.190-32 x .50)
(ELECTRIC TILLER HANDLE) -
2311-27164 NUT AND LOCKWASHER, (#10-32)
(ELECTRIC TILLER HANDLE)NUT AND LOCKWASHER, (#10-32)
(ELECTRIC TILLER HANDLE) -
2410-69079 SCREW, (#10-16 x .440)
(ELECTRIC TILLER HANDLE)SCREW, (#10-16 x .440)
(ELECTRIC TILLER HANDLE) -
2512-814806 WASHER, (.344 x .688 x .065) Stainless SteelWASHER, (.344 x .688 x .065) Stainless Steel
