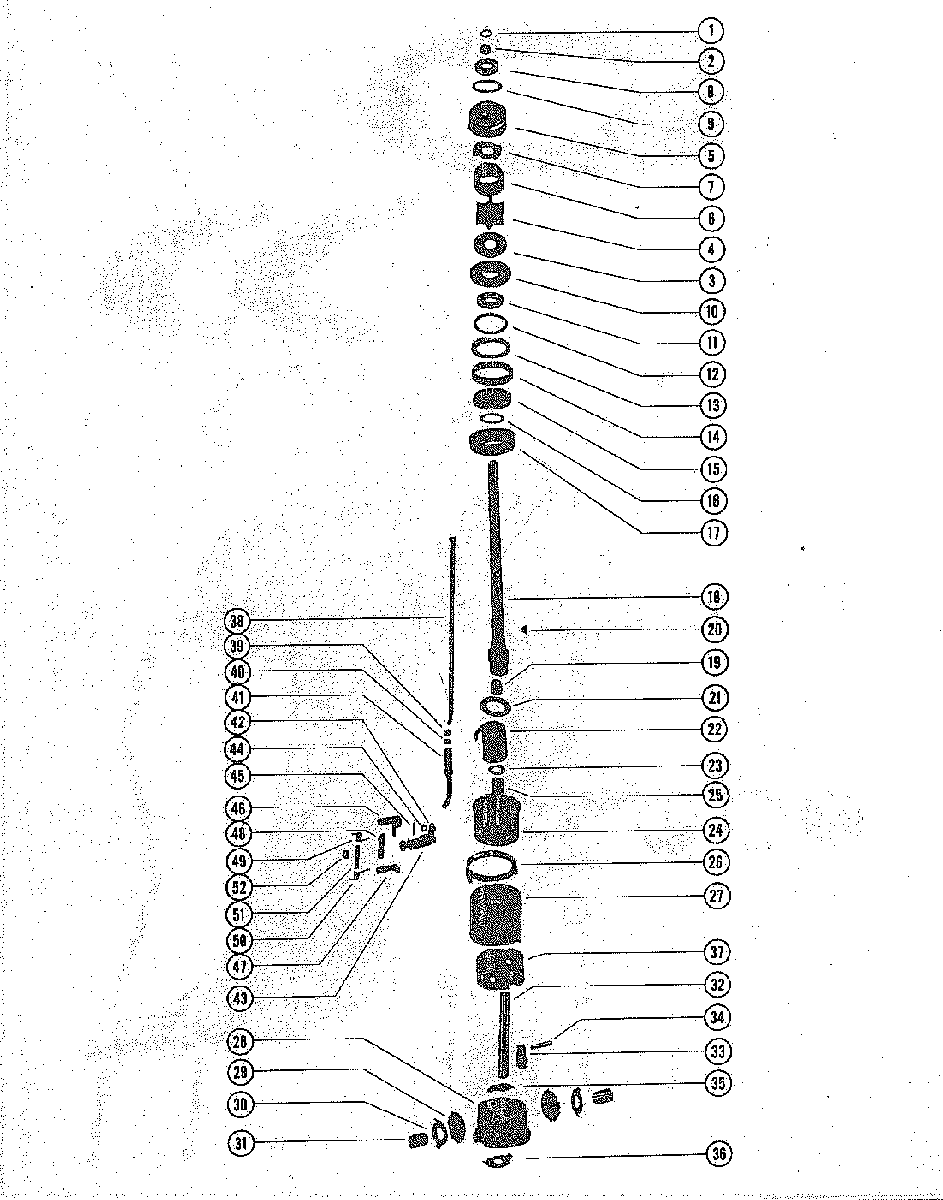

WATER PUMP CARTRIDGE, DRIVE SHAFT AND TRUNNION CARRIER ASMBL для Mercury - 100, 150, 200, 250 1290910 THRU 1499331

  • №
    Артикул
    Название
  • 1
    25-26802 "O" RING, UPPER DRIVE SHAFT
    "O" RING, UPPER DRIVE SHAFT
  • 2
    12-20684 SLINGER, CENTRIFUGAL
    SLINGER, CENTRIFUGAL
  • 3
    29436 PLATE, TOP - WATER PUMP
    PLATE, TOP - WATER PUMP
  • 4
    47-26554 IMPELLER, WATER PUMP
    IMPELLER, WATER PUMP
  • 5
    46-29445A1 WATER PUMP CARTRIDGE ASSEMBLY
    WATER PUMP CARTRIDGE ASSEMBLY
  • 6
    20811 SLEEVE, WATER PUMP CARTRIDGE
    SLEEVE, WATER PUMP CARTRIDGE
  • 7
    29435 PLATE, BOTTOM
    PLATE, BOTTOM
  • 8
    26-20070 OIL SEAL, WATER PUMP CARTRIDGE
    OIL SEAL, WATER PUMP CARTRIDGE
  • 9
    25-29439 "O" RING, WATER PUMP CARTRIDGE
    "O" RING, WATER PUMP CARTRIDGE
  • 10
    29437A1 SEAL RETAINER ASSEMBLY
    SEAL RETAINER ASSEMBLY
  • 11
    26-79831 OIL SEAL, RETAINER
    OIL SEAL, RETAINER
  • 12
    25-20812 RING, RUBBER - SEALING
    RING, RUBBER - SEALING
  • 13
    12-29687 "L" WASHER, WATER PUMP CARTRIDGE
    "L" WASHER, WATER PUMP CARTRIDGE
  • 14
    26783 SLEEVE, DRIVE SHAFT BALL BEARING
    SLEEVE, DRIVE SHAFT BALL BEARING
  • 15
    30-21776 BEARING, BALL - UPPER DRIVE SHAFT
    BEARING, BALL - UPPER DRIVE SHAFT
  • 16
    15-26728A1 SHIM, BALL BEARING TO DRIVE SHAFT
    SHIM, BALL BEARING TO DRIVE SHAFT
  • 17
    53-29438 RING, LOCK - WATER PUMP CARTRIDGE AND BEARING
    RING, LOCK - WATER PUMP CARTRIDGE AND BEARING
  • 18
    45-29444A1 DRIVE SHAFT ASSEMBLY(UPPER)
    DRIVE SHAFT ASSEMBLY(UPPER)
  • 19
    23-26660 BUSHING, DRIVE SHAFT
    BUSHING, DRIVE SHAFT
  • 20
    28-28784 KEY, DRIVE SHAFT
    KEY, DRIVE SHAFT
  • 21
    12-27988 WASHER, CLUTCH RETAINING
    WASHER, CLUTCH RETAINING
  • 22
    24-27991 SPRING, NEUTRAL
    SPRING, NEUTRAL
  • 23
    12-26835 WASHER, THRUST - NEUTRAL SPRING
    WASHER, THRUST - NEUTRAL SPRING
  • 24
    43-27994A1 INPUT DRUM AND GEAR ASSEMBLY
    INPUT DRUM AND GEAR ASSEMBLY
  • 25
    23-26660 BUSHING, INPUT GEAR AND DRUM
    BUSHING, INPUT GEAR AND DRUM
  • 26
    27995 SLEEVE, REVERSE CONTROL -TRUNNION CARRIER
    SLEEVE, REVERSE CONTROL -TRUNNION CARRIER
  • 27
    24-27021 SPRING, FORWARD AND REVERSE - TRUNNION CARRIER
    SPRING, FORWARD AND REVERSE - TRUNNION CARRIER
  • 27
    27987A2 TRUNNION CARRIER ASSEMBLY, COMPLETE
    TRUNNION CARRIER ASSEMBLY, COMPLETE
  • 28
    27987A1 TRUNNION CARRIER ASSEMBLY
    TRUNNION CARRIER ASSEMBLY
  • 29
    43-26688 GEAR, IDLER
    GEAR, IDLER
  • 30
    12-29447 WASHER, THRUST - IDLER GEAR
    WASHER, THRUST - IDLER GEAR
  • 31
    27986 SHAFT, IDLER GEAR TO CARRIER
    SHAFT, IDLER GEAR TO CARRIER
  • 32
    28000 SHAFT, PILOT - TRUNNION CARRIER
    SHAFT, PILOT - TRUNNION CARRIER
  • 33
    28-28002 KEY, SPRING CLUTCH
    KEY, SPRING CLUTCH
  • 34
    29-26689 PIN, ROLLER - KEY AND SHAFT HOLDING
    PIN, ROLLER - KEY AND SHAFT HOLDING
  • 35
    12-26661 WASHER, THURST - PILOT SHAFT (LOWER - .020)
    WASHER, THURST - PILOT SHAFT (LOWER - .020)
  • 36
    12-29446 WASHER, THRUST - PILOT SHAFT (UPPER - .031)
    WASHER, THRUST - PILOT SHAFT (UPPER - .031)
  • 37
    27992 SLEEVE, TRUNNION CARRIER
    SLEEVE, TRUNNION CARRIER
  • 38
    27072 SHAFT, UPPER SHIFT
    SHAFT, UPPER SHIFT
  • 39
    11-8267086 NUT, PUSH LINK TO UPPER SHIFT SHAFT
    NUT, PUSH LINK TO UPPER SHIFT SHAFT
  • 40
    11-68219 NUT, ADJUSTING - SLEEVE LOCKING
    NUT, ADJUSTING - SLEEVE LOCKING
  • 41
    29289A1 SHIFT ROD ASSEMBLY, LOWER
    SHIFT ROD ASSEMBLY, LOWER
  • 42
    27010 SHAFT, CONTROL - TRANSMISSION
    SHAFT, CONTROL - TRANSMISSION
  • 43
    25-48171 "O" RING, TRANSMISSION CONTROL SHAFT
    "O" RING, TRANSMISSION CONTROL SHAFT
  • 44
    13-27071 WASHER, WAVE - LOWER SHIFT ROD
    WASHER, WAVE - LOWER SHIFT ROD
  • 45
    18-27789 COTTER PIN, LOWER SHIFT ROD TO CONTROL SHAFT
    COTTER PIN, LOWER SHIFT ROD TO CONTROL SHAFT
  • 46
    27767 PAWL, NEUTRAL
    PAWL, NEUTRAL
  • 47
    27766 PAWL, REVERSE
    PAWL, REVERSE
  • 48
    27016 SHAFT, NEUTRAL AND REVERSE PAWL
    SHAFT, NEUTRAL AND REVERSE PAWL
  • 49
    24-27014 SPRING, NEUTRAL PAWL
    SPRING, NEUTRAL PAWL
  • 50
    24-27013 SPRING, REVERSE PAWL
    SPRING, REVERSE PAWL
  • 51
    17-26926 PIN, PAWL SPRING RETAINING
    PIN, PAWL SPRING RETAINING
  • 52
    23-26927 SPACER, CONTROL PAWL SPRING
    SPACER, CONTROL PAWL SPRING
