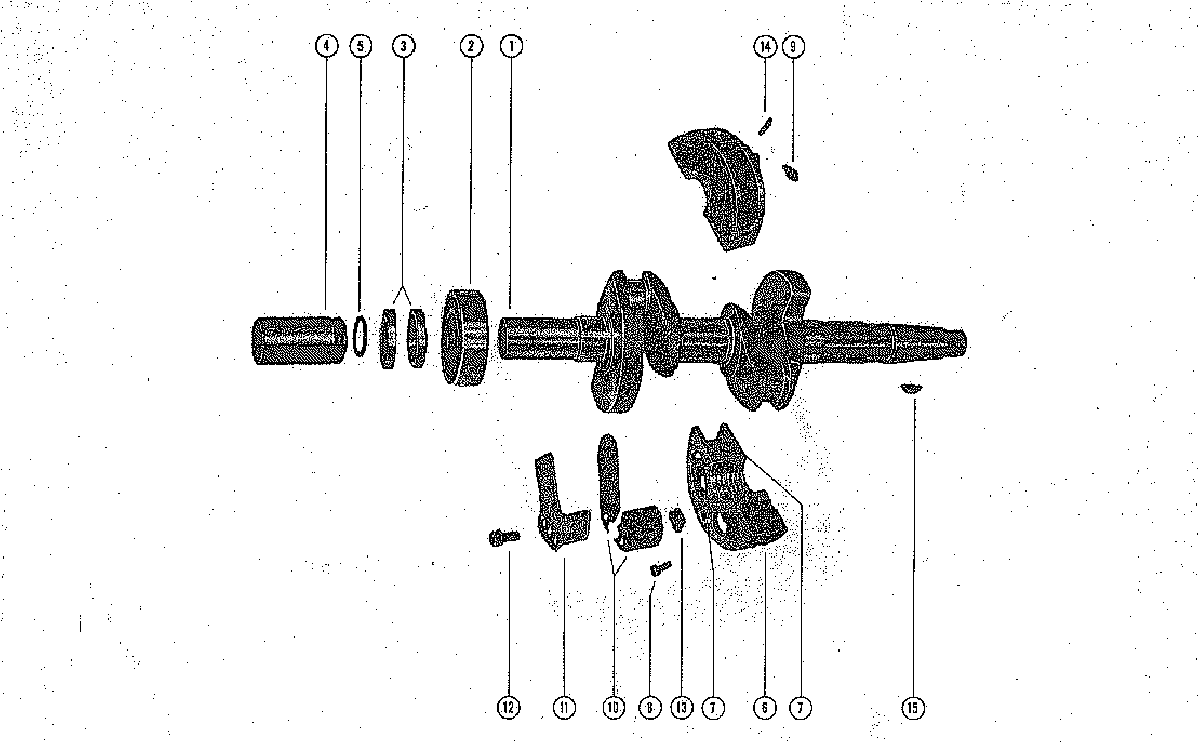

CRANKSHAFT AND CENTER MAIN BEARING ASSEMBLY для Mercury - 100, 150, 200, 250 1290910 THRU 1499331

  • №
    Артикул
    Название
  • 1
    415-2295 CRANKSHAFT
    CRANKSHAFT
  • 2
    30-63326T BEARING, BALL - CRANKCASE (LOWER)
    BEARING, BALL - CRANKCASE (LOWER)
  • 3
    26-16977 OIL SEAL, CRANKCASE (LOWER)
    OIL SEAL, CRANKCASE (LOWER)
  • 4
    23-29736 SLEEVE, PROTECTOR - CRANKSHAFT
    SLEEVE, PROTECTOR - CRANKSHAFT
  • 5
    25-29845 "O" RING, PROTECTOR SLEEVE
    "O" RING, PROTECTOR SLEEVE
  • 6
    522-1510A1 CENTER MAIN BEARING ASSEMBLY
    CENTER MAIN BEARING ASSEMBLY
  • 6
    527-1619A4 CENTER MAIN BEARING ASSEMBLY
    CENTER MAIN BEARING ASSEMBLY
  • 6
    534-3267T25 CENTER MAIN BEARING ASSEMBLY
    CENTER MAIN BEARING ASSEMBLY
  • 7
    17-20032 DOWEL PIN, CENTER MAIN BEARING
    DOWEL PIN, CENTER MAIN BEARING
  • 7
    17-20032 DOWEL PIN, CENTER MAIN BEARING
    DOWEL PIN, CENTER MAIN BEARING
  • 8
    10-26184 SCREW, CENTER MAIN BEARING CLAMPING (9/16)
    SCREW, CENTER MAIN BEARING CLAMPING (9/16)
  • 8
    10-26184 SCREW, CENTER MAIN BEARING CLAMPING (9/16)
    SCREW, CENTER MAIN BEARING CLAMPING (9/16)
  • 8
    10-25313 SCREW, CENTER MAIN BEARING CLAMPING (9/16)
    SCREW, CENTER MAIN BEARING CLAMPING (9/16)
  • 8
    10-69026 SCREW, CENTER MAIN BEARING CLAMPING (7/8)
    SCREW, CENTER MAIN BEARING CLAMPING (7/8)
  • 9
    11-24652 NUT, CENTER MAIN BEARING CLAMPING SCREW
    NUT, CENTER MAIN BEARING CLAMPING SCREW
  • 9
    11-29469 NUT, CENTER MAIN BEARING CLAMPING SCREW
    NUT, CENTER MAIN BEARING CLAMPING SCREW
  • 9
    34-21293 REED, CENTER MAIN BEARING
    REED, CENTER MAIN BEARING
  • 10
    34-88498A1 REED SET, CENTER MAIN BEARING (MATCHED)
    REED SET, CENTER MAIN BEARING (MATCHED)
  • 10
    34-88498A1 REED SET, CENTER MAIN BEARING (MATCHED)
    REED SET, CENTER MAIN BEARING (MATCHED)
  • 10
    34-25454 REED STOP, MAIN BEARING REED VALVES
    REED STOP, MAIN BEARING REED VALVES
  • 11
    34-20053 REED STOP, MAIN BEARING REED VALVES
    REED STOP, MAIN BEARING REED VALVES
  • 11
    34-64632 REED STOP, MAIN BEARING REED VALVES
    REED STOP, MAIN BEARING REED VALVES
  • 12
    10-69022 SCREW, REED STOP MOUNTING
    SCREW, REED STOP MOUNTING
  • 12
    10-77280 SCREW, REED STOP MOUNTING
    SCREW, REED STOP MOUNTING
  • 13
    11-24656 NUT, REED STOP MOUNTING SCREW
    NUT, REED STOP MOUNTING SCREW
  • 13
    11-29469 NUT, REED STOP MOUNTING SCREW
    NUT, REED STOP MOUNTING SCREW
  • 14
    17-20032 DOWEL PIN, MAIN BEARING TO CYLINDER BLOCK
    DOWEL PIN, MAIN BEARING TO CYLINDER BLOCK
  • 15
    28-20094 KEY, FLYWHEEL
    KEY, FLYWHEEL
