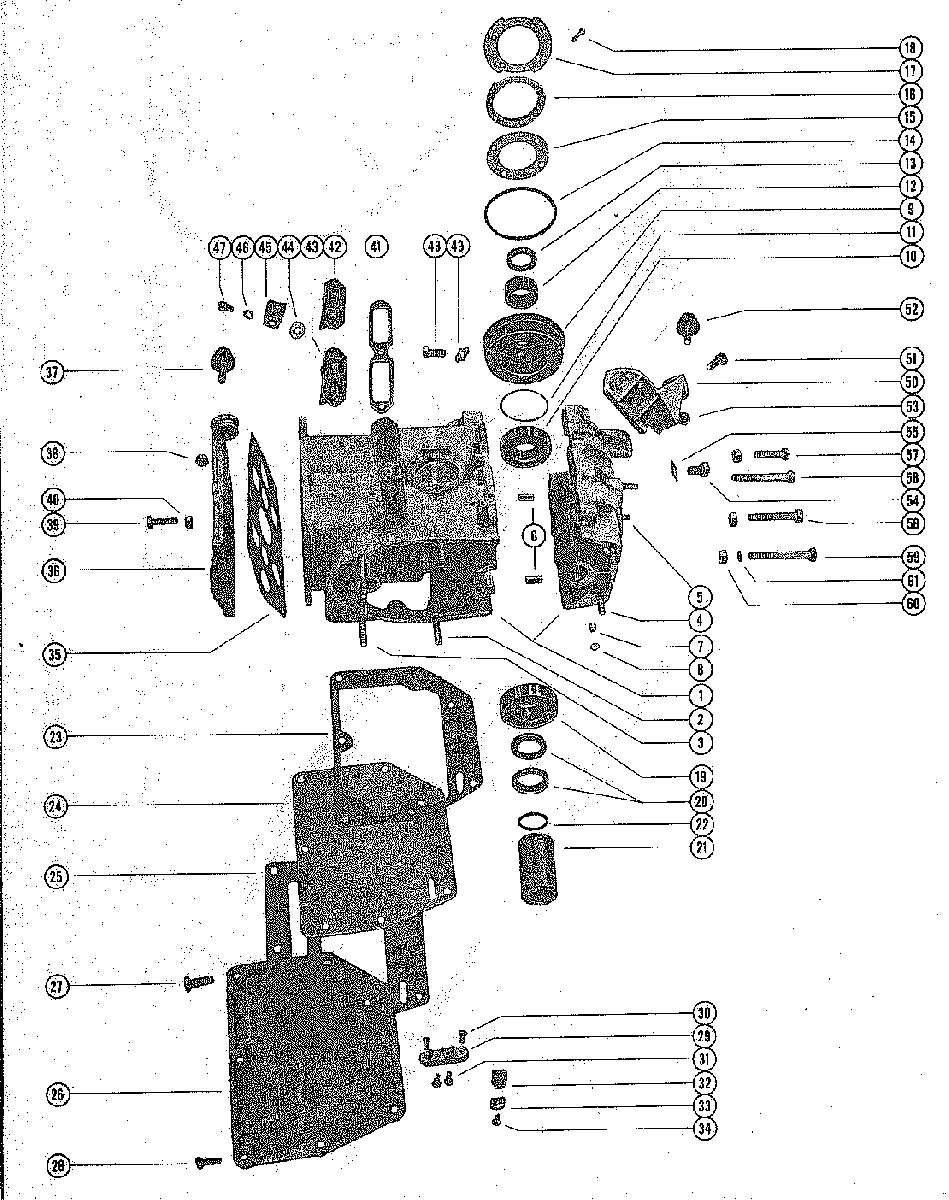

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 100, 150, 200, 250 1290910 THRU 1499331

  • №
    Артикул
    Название
  • 1
    824-1498A3 CYLINDER BLOCK AND CRANKCASE ASSEMLBY
    CYLINDER BLOCK AND CRANKCASE ASSEMLBY
  • 1
    830-3398A3 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    CYLINDER BLOCK AND CRANKCASE ASSEMBLY
  • 1
    830-1966A2 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    CYLINDER BLOCK AND CRANKCASE ASSEMBLY
  • 2
    16-20990 STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING
    STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING
  • 3
    16-97012 STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING
    STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING
  • 4
    16-20956 STUD, CRANKCASE TO DRIVE SHAFT HOUSING
    STUD, CRANKCASE TO DRIVE SHAFT HOUSING
  • 5
    16-20074 STUD, CRANKCASE TO CARBURETOR
    STUD, CRANKCASE TO CARBURETOR
  • 5
    16-65865 STUD, CRANKCASE TO CARBURETOR
    STUD, CRANKCASE TO CARBURETOR
  • 6
    17-23784 DOWEL PIN, CRANKCASE TO CYLINDER BLOCK
    DOWEL PIN, CRANKCASE TO CYLINDER BLOCK
  • 7
    21-27146A1 CHECK VALVE ASSEMBLY, CRANKCASE
    CHECK VALVE ASSEMBLY, CRANKCASE
  • 8
    19-20011 WELCH PLUG, CRANKCASE CHECK VALVE
    WELCH PLUG, CRANKCASE CHECK VALVE
  • 9
    1123-1196A2 CRANKCASE TOP ASSEMBLY
    CRANKCASE TOP ASSEMBLY
  • 10
    30-63326T BEARING, BALL - CRANKCASE (UPPER)
    BEARING, BALL - CRANKCASE (UPPER)
  • 11
    15-20514A1 SHIM, BALL BEARING TO CRANKCASE TOP
    SHIM, BALL BEARING TO CRANKCASE TOP
  • 12
    31-20594 BEARING, ROLLER - CRANKCASE (UPPER)
    BEARING, ROLLER - CRANKCASE (UPPER)
  • 13
    26-20530 OIL SEAL, CRANKCASE (UPPER)
    OIL SEAL, CRANKCASE (UPPER)
  • 14
    25-31932 "O" RING, CRANKCASE (UPPER)
    "O" RING, CRANKCASE (UPPER)
  • 15
    15-26931 SHIM, SPACER TO CRANKCASE TOP (.015)
    SHIM, SPACER TO CRANKCASE TOP (.015)
  • 16
    23-26563 SPACER, HOLD DOWN RING TO CRANKCASE TOP
    SPACER, HOLD DOWN RING TO CRANKCASE TOP
  • 17
    29799 RING, MAGNETO HOLD DOWN
    RING, MAGNETO HOLD DOWN
  • 18
    10-28802 SCREW, HOLD DOWN RING TO CRANKCASE TOP
    SCREW, HOLD DOWN RING TO CRANKCASE TOP
  • 19
    30-63326T BEARING, BALL - CRANKCASE (LOWER)
    BEARING, BALL - CRANKCASE (LOWER)
  • 20
    26-16977 OIL SEAL, CRANKCASE (LOWER)
    OIL SEAL, CRANKCASE (LOWER)
  • 21
    23-29736 SLEEVE, PROTECTOR - CRANKSHAFT
    SLEEVE, PROTECTOR - CRANKSHAFT
  • 22
    25-29845 "O" RING, CRANKSHAFT PROTECTOR SLEEVE
    "O" RING, CRANKSHAFT PROTECTOR SLEEVE
  • 23
    27-28085 GASKET, CYLINDER BLOCK TO BAFFLE PLATE
    GASKET, CYLINDER BLOCK TO BAFFLE PLATE
  • 24
    28086 PLATE, BAFFLE - EXHAUST MANIFOLD
    PLATE, BAFFLE - EXHAUST MANIFOLD
  • 25
    27-28090 GASKET, BAFFLE PLATE TO MANIFOLD COVER
    GASKET, BAFFLE PLATE TO MANIFOLD COVER
  • 26
    28074 COVER, EXHAUST MANIFOLD
    COVER, EXHAUST MANIFOLD
  • 27
    10-28636 SCREW, MANIFOLD COVER TO CYLINDER BLOCK
    SCREW, MANIFOLD COVER TO CYLINDER BLOCK
  • 28
    10-28635 SCREW, MANIFOLD COVER TO CYLINDER BLOCK (LOWER REAR)
    SCREW, MANIFOLD COVER TO CYLINDER BLOCK (LOWER REAR)
  • 29
    30212 TERMINAL BLOCK, EXHAUST MANIFOLD COVER
    TERMINAL BLOCK, EXHAUST MANIFOLD COVER
  • 30
    10-72169 SCREW, TERMINAL BLOCK TO EXHAUST MANIFOLD COVER
    SCREW, TERMINAL BLOCK TO EXHAUST MANIFOLD COVER
  • 31
    10-62568 SCREW, SHORTING SWITCH LEAD TO TERMINAL BLOCK
    SCREW, SHORTING SWITCH LEAD TO TERMINAL BLOCK
  • 31
    10-8M0113176 SCREW, SHORTING SWITCH LEAD TO TERMINAL BLOCK
    SCREW, SHORTING SWITCH LEAD TO TERMINAL BLOCK
  • 32
    54-24836 CLIP, SHORTING SWITCH LEAD FASTENING
    CLIP, SHORTING SWITCH LEAD FASTENING
  • 33
    8M0084613 "D" WASHER, SHORTING SWITCH LEAD FASTENING SCREW
    "D" WASHER, SHORTING SWITCH LEAD FASTENING SCREW
  • 34
    10-69079 SCREW, SHORTING SWITCH LEAD CLIP FASTENING
    SCREW, SHORTING SWITCH LEAD CLIP FASTENING
  • 34
    10-8M0113176 SCREW, SHORTING SWITCH LEAD CLIP FASTENING
    SCREW, SHORTING SWITCH LEAD CLIP FASTENING
  • 35
    27-26173 GASKET, CYLINDER BLOCK COVER
    GASKET, CYLINDER BLOCK COVER
  • 36
    1009-1200 COVER, CYLINDER BLOCK
    COVER, CYLINDER BLOCK
  • 37
    28805 MOUNT, RUBBER - TOP COWL (CYLINDER BLOCK COVER)
    MOUNT, RUBBER - TOP COWL (CYLINDER BLOCK COVER)
  • 37
    12-28518 WASHER, SPACING - RUBBER MOUNT STUD
    WASHER, SPACING - RUBBER MOUNT STUD
  • 38
    11-22053 NUT, RUBBER MOUNT TO COVER
    NUT, RUBBER MOUNT TO COVER
  • 39
    10-20653 SCREW, COVER TO CYLINDER BLOCK
    SCREW, COVER TO CYLINDER BLOCK
  • 40
    11-24652 NUT, CYLINDER BLOCK COVER FASTENING SCREW
    NUT, CYLINDER BLOCK COVER FASTENING SCREW
  • 41
    27-26175 GASKET, TRANSFER PORT COVER (NOT AS SHOWN)
    GASKET, TRANSFER PORT COVER (NOT AS SHOWN)
  • 41
    27-32025 GASKET, TRANSFER PORT COVER
    GASKET, TRANSFER PORT COVER
  • 41
    26174 COVER, TRANSFER PORT
    COVER, TRANSFER PORT
  • 42
    32033 COVER, TRANSFER PORT - UPPER
    COVER, TRANSFER PORT - UPPER
  • 43
    32032 COVER, TRANSFER PORT - LOWER
    COVER, TRANSFER PORT - LOWER
  • 44
    12-69057 WASHER, TRANSFER PORT COVER SCREW
    WASHER, TRANSFER PORT COVER SCREW
  • 45
    54-20534 CLAMP, HARNESS - IGNITION WIRES
    CLAMP, HARNESS - IGNITION WIRES
  • 46
    12-20533 WASHER, HARNESS CLAMP SCREW
    WASHER, HARNESS CLAMP SCREW
  • 47
    10-28635 SCREW, PORT COVER TO CYLINDER BLOCK
    SCREW, PORT COVER TO CYLINDER BLOCK
  • 47
    10-20540 SCREW, PORT COVER TO CYLINDER BLOCK
    SCREW, PORT COVER TO CYLINDER BLOCK
  • 48
    10-25299 SCREW, CRANKCASE TOP FASTENING
    SCREW, CRANKCASE TOP FASTENING
  • 49
    14-20747 TAB WASHER, TOP FASTENING SCREW
    TAB WASHER, TOP FASTENING SCREW
  • 50
    26799 BRACKET, TOP COWL MOUNTING
    BRACKET, TOP COWL MOUNTING
  • 51
    10-29256 SCREW, COWL MOUNTING BRACKET TO CRANKCASE
    SCREW, COWL MOUNTING BRACKET TO CRANKCASE
  • 51
    10-28782 SCREW, COWL MOUNTING BRACKET TO CRANKCASE
    SCREW, COWL MOUNTING BRACKET TO CRANKCASE
  • 52
    28805 MOUNT, RUBBER - TOP COWL MOUNTING BRACKET
    MOUNT, RUBBER - TOP COWL MOUNTING BRACKET
  • 52
    12-28518 WASHER, SPACING - RUBBER MOUNT STUD
    WASHER, SPACING - RUBBER MOUNT STUD
  • 53
    11-22053 NUT, RUBBER MOUNT TO BRACKET
    NUT, RUBBER MOUNT TO BRACKET
  • 54
    10-98260 SCREW, CENTER MAIN BEARING LOCK
    SCREW, CENTER MAIN BEARING LOCK
  • 55
    14-20091 TAB WASHER, BEARING LOCK SCREW
    TAB WASHER, BEARING LOCK SCREW
  • 56
    10-69090 SCREW, CRANKCASE TO CYLINDER BLOCK (2-1/4")
    SCREW, CRANKCASE TO CYLINDER BLOCK (2-1/4")
  • 57
    10-26066 SCREW, CRANKCASE TO CYLINDER BLOCK (1-1/4")
    SCREW, CRANKCASE TO CYLINDER BLOCK (1-1/4")
  • 58
    10-21449 SCREW, CRANKCASE TO CYLINDER BLOCK (2")
    SCREW, CRANKCASE TO CYLINDER BLOCK (2")
  • 59
    10-26132 SCREW, CRANKCASE TO CYLINDER BLOCK (2-1/2")
    SCREW, CRANKCASE TO CYLINDER BLOCK (2-1/2")
  • 60
    11-29250 NUT, CRANKCASE FASTENING SCREW
    NUT, CRANKCASE FASTENING SCREW
  • 61
    25-25429 "O" RING, CRANKCASE FASTENING SCREW
    "O" RING, CRANKCASE FASTENING SCREW
