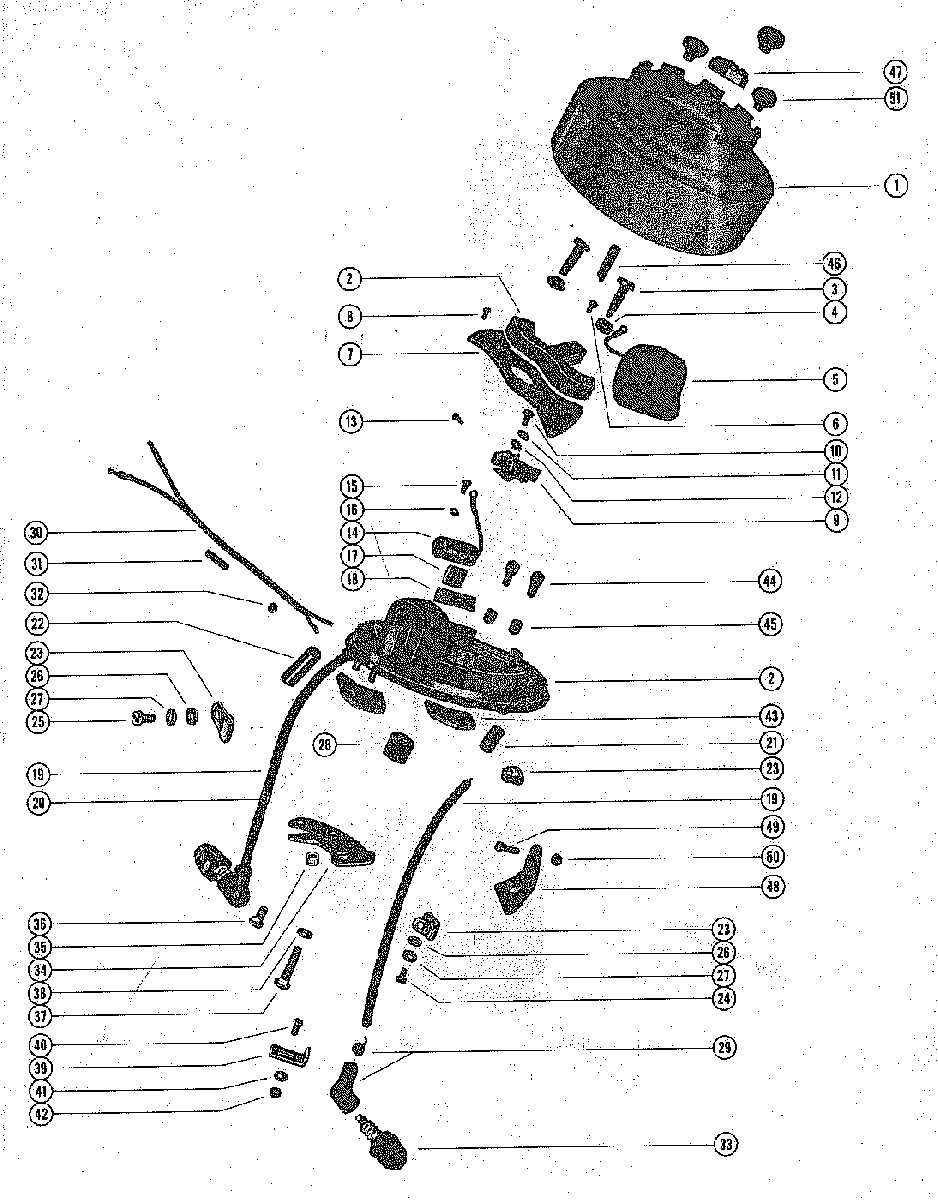

MAGNETO ASSEMBLY для Mercury - 100, 150, 200, 250 1290910 THRU 1499331

  • №
    Артикул
    Название
  • 1
    328-1336A1 FLYWHEEL ASSEMBLY
    FLYWHEEL ASSEMBLY
  • 1
    398-1338A1 STATOR ASSEMBLY, COMPLETE
    STATOR ASSEMBLY, COMPLETE
  • 1
    398-1736A1 STATOR ASSEMBLY, COMPLETE
    STATOR ASSEMBLY, COMPLETE
  • 2
    398-1338 STATOR AND CORE
    STATOR AND CORE
  • 2
    398-1338 STATOR AND CORE
    STATOR AND CORE
  • 2
    398-1736 STATOR AND CORE
    STATOR AND CORE
  • 2
    398-1736 STATOR AND CORE
    STATOR AND CORE
  • 3
    398-963 SCREW, CORE FASTENING
    SCREW, CORE FASTENING
  • 4
    13-21144 LOCKWASHER, CORE FASTENING SCREW
    LOCKWASHER, CORE FASTENING SCREW
  • 5
    398-173 COIL, IGNITION
    COIL, IGNITION
  • 6
    10-21130 SCREW, GROUND TERMINAL
    SCREW, GROUND TERMINAL
  • 7
    398-190 COVER, BREAKER COMPARTMENT SEALING
    COVER, BREAKER COMPARTMENT SEALING
  • 8
    10-30429 SCREW, SEALING COVER FASTENING
    SCREW, SEALING COVER FASTENING
  • 9
    398-174 BREAKER ASSEMBLY
    BREAKER ASSEMBLY
  • 10
    10-20650 SCREW, BREAKER FASTENING
    SCREW, BREAKER FASTENING
  • 11
    12-21135 WASHER, BREAKER FASTENING SCREW
    WASHER, BREAKER FASTENING SCREW
  • 12
    13-21134 LOCKWASHER, BREAKER FASTENING SCREW
    LOCKWASHER, BREAKER FASTENING SCREW
  • 13
    10-23976 SCREW, BRAKER CONNECTION
    SCREW, BRAKER CONNECTION
  • 14
    398-693 CONDENSER
    CONDENSER
  • 15
    10-21136 SCREW, CONDENSER FASTENING
    SCREW, CONDENSER FASTENING
  • 16
    13-21134 LOCKWASHER, CONDENSER FASTENING SCREW
    LOCKWASHER, CONDENSER FASTENING SCREW
  • 17
    398-192 WICK, FELT
    WICK, FELT
  • 18
    398-193 PLUG, FELT
    PLUG, FELT
  • 19
    84-821945A46 LEAD WIRE
    LEAD WIRE
  • 20
    20117 MARKER, "TOP" - LEAD WIRE
    MARKER, "TOP" - LEAD WIRE
  • 21
    32-21137 TUBE, LEAD WIRE (PORT SIDE)
    TUBE, LEAD WIRE (PORT SIDE)
  • 22
    23-25217 BUSHING, LEAD WIRE (STARBOARD SIDE)
    BUSHING, LEAD WIRE (STARBOARD SIDE)
  • 23
    54-24836 CLAMP, PLASTIC - LEAD WIRE TO STATOR
    CLAMP, PLASTIC - LEAD WIRE TO STATOR
  • 24
    10-20650 SCREW, LEAD WIRE CLAMP (SHORT)
    SCREW, LEAD WIRE CLAMP (SHORT)
  • 25
    10-21139 SCREW, LEAD WIRE CLAMP (LONG)
    SCREW, LEAD WIRE CLAMP (LONG)
  • 26
    12-21135 WASHER, LEAD WIRE CLAMP SCREW
    WASHER, LEAD WIRE CLAMP SCREW
  • 27
    13-21134 LOCKWASHER, LEAD WIRE CLAMP SCREW
    LOCKWASHER, LEAD WIRE CLAMP SCREW
  • 28
    398-1098 BUSHING, LEAD WIRES
    BUSHING, LEAD WIRES
  • 29
    85-63709A1 PROTECTOR, SPARK PLUG
    PROTECTOR, SPARK PLUG
  • 30
    398-1872 GROUND LEAD, MAGNETO TO SHORTING SWITCH TERMINAL BLOCK
    GROUND LEAD, MAGNETO TO SHORTING SWITCH TERMINAL BLOCK
  • 31
    23-30419 SLEEVE, GROUND LEAD INSULATION
    SLEEVE, GROUND LEAD INSULATION
  • 32
    25-29051 GROMMET, GROUND LEAD THRU STATOR PLATE
    GROMMET, GROUND LEAD THRU STATOR PLATE
  • 33
    33-22805 SPARK PLUG (CHAMPION J7J)
    SPARK PLUG (CHAMPION J7J)
  • 33
    33-813469 SPARK PLUG (CHAMPION J6J)
    SPARK PLUG (CHAMPION J6J)
  • 33
    33-813469 SPARK PLUG (AC-M44C)
    SPARK PLUG (AC-M44C)
  • 34
    28836A4 THROTTLE CONTROL CAM ASSEMBLY
    THROTTLE CONTROL CAM ASSEMBLY
  • 34
    28836A6 THROTTLE CONTROL CAM ASSEMBLY
    THROTTLE CONTROL CAM ASSEMBLY
  • 34
    26566A6 THROTTLE CONTROL CAM ASSEMBLY
    THROTTLE CONTROL CAM ASSEMBLY
  • 34
    26566A8 THROTTLE CONTROL CAM ASSEMBLY
    THROTTLE CONTROL CAM ASSEMBLY
  • 35
    23-26560 SPACER, THROTTLE CAM
    SPACER, THROTTLE CAM
  • 36
    10-20616 SCREW, THROTTLE CAM TO STATOR PLATE (SHORT)
    SCREW, THROTTLE CAM TO STATOR PLATE (SHORT)
  • 37
    10-39514 SCREW, THROTTLE CAM TO STATOR PLATE (LONG)
    SCREW, THROTTLE CAM TO STATOR PLATE (LONG)
  • 38
    12-20028 WASHER, CAM MOUNTING SCREW (LONG)
    WASHER, CAM MOUNTING SCREW (LONG)
  • 39
    29013 IDLE STOP, ADJUSTABLE
    IDLE STOP, ADJUSTABLE
  • 40
    10-32417 SCREW, IDLE STOP TO TOP COWL BRACKET
    SCREW, IDLE STOP TO TOP COWL BRACKET
  • 41
    12-20028 WASHER, IDLE STOP FASTENING SCREW
    WASHER, IDLE STOP FASTENING SCREW
  • 42
    11-24652 NUT, IDLE STOP SCREW
    NUT, IDLE STOP SCREW
  • 43
    26565 CLIP, MAGNETO HOLD DOWN
    CLIP, MAGNETO HOLD DOWN
  • 44
    10-29248 SCREW, HOLD DOWN CLIP TO MAGNETO
    SCREW, HOLD DOWN CLIP TO MAGNETO
  • 45
    24-27087 SPRING, HOLD DOWN CLIP SCREW
    SPRING, HOLD DOWN CLIP SCREW
  • 46
    28-20094 KEY, FLYWHEEL
    KEY, FLYWHEEL
  • 47
    11-22339 NUT, FLYWHEEL
    NUT, FLYWHEEL
  • 48
    30046 STOP, MAGNETO ADVANCE
    STOP, MAGNETO ADVANCE
  • 48
    30046 STOP, MAGNETO ADVANCE
    STOP, MAGNETO ADVANCE
  • 48
    30046 STOP, MAGNETO ADVANCE
    STOP, MAGNETO ADVANCE
  • 49
    10-20738 SCREW, ADJUSTMENT - MAGNETO ADVANCE STOP
    SCREW, ADJUSTMENT - MAGNETO ADVANCE STOP
  • 49
    10-30095 SCREW, ADJUSTMENT - MAGNETO ADVANCE STOP
    SCREW, ADJUSTMENT - MAGNETO ADVANCE STOP
  • 50
    11-29798 NUT, ADJUSTMENT STOP SCREW
    NUT, ADJUSTMENT STOP SCREW
  • 51
    19-29900 PLUG, PLASTIC - FLYWHEEL SCREW HOLES
    PLUG, PLASTIC - FLYWHEEL SCREW HOLES
