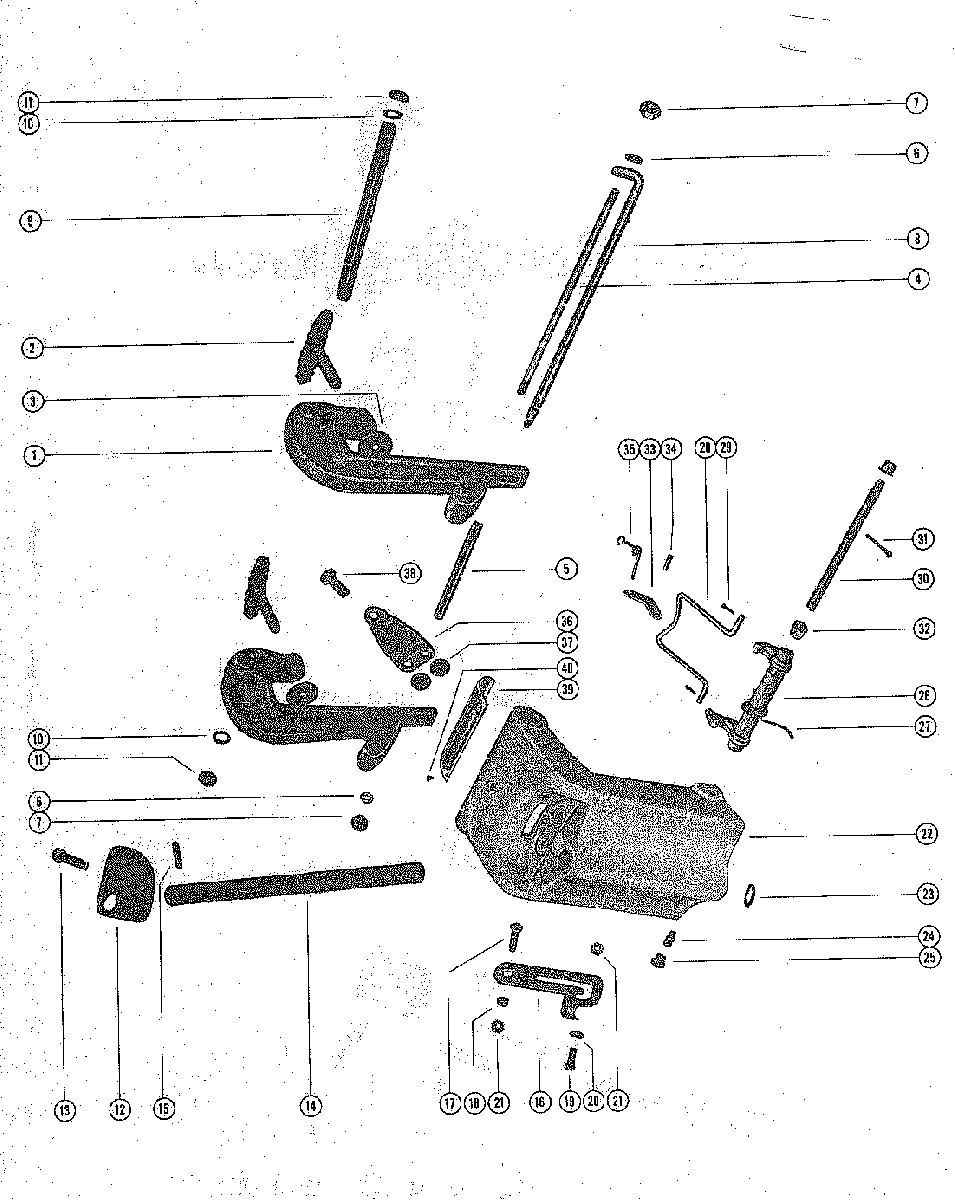

CLAMP AND SWIVEL BRACKET ASSEMBLY для Mercury - 100, 150, 200, 250 1290910 THRU 1499331

  • №
    Артикул
    Название
  • 1
    1427-1806A6 CLAMP BRACKET ASSEMBLY
    CLAMP BRACKET ASSEMBLY
  • 2
    22477A4 THUMB SCREW ASSEMBLY
    THUMB SCREW ASSEMBLY
  • 3
    12-26227 WASHER, THUMB SCREW
    WASHER, THUMB SCREW
  • 4
    16-59620 STUD, CLAMP BRACKET
    STUD, CLAMP BRACKET
  • 5
    23-59621T SPACER, CLAMP BRACKET STUD
    SPACER, CLAMP BRACKET STUD
  • 6
    13-26993 LOCKWASHER, CLAMP BRACKET STUD
    LOCKWASHER, CLAMP BRACKET STUD
  • 7
    11-22053 NUT, CLAMP BRACKET STUD
    NUT, CLAMP BRACKET STUD
  • 8
    17-56373A2 TILT LOCK PIN ASSEMBLY
    TILT LOCK PIN ASSEMBLY
  • 9
    16-25674 STUD, CLAMP BRACKET TO SWIVEL BRACKET
    STUD, CLAMP BRACKET TO SWIVEL BRACKET
  • 10
    15-25600A1 SHIM, CLAMP BRACKET STUD
    SHIM, CLAMP BRACKET STUD
  • 11
    11-8M2014641 NUT, CLAMP BRACKET STUD FASTENING
    NUT, CLAMP BRACKET STUD FASTENING
  • 12
    26558 CO-PILOT DISC
    CO-PILOT DISC
  • 13
    10-28515 SCREW, CO-PILOT DISC TO SADDLE
    SCREW, CO-PILOT DISC TO SADDLE
  • 14
    17-26540 SWIVEL PIN
    SWIVEL PIN
  • 15
    17-26541 ROLL PIN, SWIVEL PIN TO SADDLE
    ROLL PIN, SWIVEL PIN TO SADDLE
  • 16
    26864 LEVER, TILT STOP
    LEVER, TILT STOP
  • 17
    10-20217 SCREW, ANCHOR - TILT STOP LEVER
    SCREW, ANCHOR - TILT STOP LEVER
  • 18
    23-20216 SPACER, TILT STOP LEVER SCREW
    SPACER, TILT STOP LEVER SCREW
  • 19
    10-29237 SCREW, RETAINING - LEVER TO SWIVEL BRACKET
    SCREW, RETAINING - LEVER TO SWIVEL BRACKET
  • 20
    15-20473A1 SHIM, RETAINING SCREW
    SHIM, RETAINING SCREW
  • 21
    11-24652 NUT, TILT STOP LEVER SCREW
    NUT, TILT STOP LEVER SCREW
  • 22
    1445-1799A2 SWIVEL BRACKET ASSEMBLY
    SWIVEL BRACKET ASSEMBLY
  • 23
    25-29316 "O" RING, SWIVEL BRACKET - SWIVEL PIN
    "O" RING, SWIVEL BRACKET - SWIVEL PIN
  • 24
    22-69059 FITTING, GREASE - SWIVEL PIN (1/8 - 27) (SEE NOTE)
    FITTING, GREASE - SWIVEL PIN (1/8 - 27) (SEE NOTE)
  • 24
    22-74036 FITTING, GREASE - SWIVEL PIN (1/4 - 28) (SEE NOTE)
    FITTING, GREASE - SWIVEL PIN (1/4 - 28) (SEE NOTE)
  • 25
    19-77633Q LUBRICAP, SWIVEL BRACKET BRACKET GREASE FITTING
    LUBRICAP, SWIVEL BRACKET BRACKET GREASE FITTING
  • 26
    26093A2 REVERSE LOCK LEVER ASSEMBLY
    REVERSE LOCK LEVER ASSEMBLY
  • 27
    24-28184 SPRING, REVERSE LOCK LEVER
    SPRING, REVERSE LOCK LEVER
  • 28
    28118 FORK, ACTUATING - REVERSE LOCK LEVER
    FORK, ACTUATING - REVERSE LOCK LEVER
  • 29
    18-26953 COTTER PIN, ACTUATING FORK TO REVERSE LOCK LEVER
    COTTER PIN, ACTUATING FORK TO REVERSE LOCK LEVER
  • 30
    26092 ROD, REVERSE LOCK LEVER
    ROD, REVERSE LOCK LEVER
  • 31
    18-45882 COTTER PIN, REVERSE LOCK LEVER TO ROD
    COTTER PIN, REVERSE LOCK LEVER TO ROD
  • 32
    23-26841 BUSHING, NYLON - REVERSE LOCK LEVER ROD
    BUSHING, NYLON - REVERSE LOCK LEVER ROD
  • 33
    28114 LEVER, ACTUATING - REVERSE LOCK LEVER (1/8" THICK)
    LEVER, ACTUATING - REVERSE LOCK LEVER (1/8" THICK)
  • 34
    17-22531 ROLL PIN, ACTUATING LEVER
    ROLL PIN, ACTUATING LEVER
  • 35
    28664 LINK, PUSH - UPPER SHIFT SHAFT
    LINK, PUSH - UPPER SHIFT SHAFT
  • 36
    28125 PLATE, CLAMP - CO-PILOT
    PLATE, CLAMP - CO-PILOT
  • 37
    20203 DISC, FRICTION - CLAMP PLATE AND SWIVEL BRACKET
    DISC, FRICTION - CLAMP PLATE AND SWIVEL BRACKET
  • 38
    10-29201 SCREW, CLAMP PLATE TO SWIVEL BRACKET
    SCREW, CLAMP PLATE TO SWIVEL BRACKET
  • 39
    38-31067 SERIAL PLATE
    SERIAL PLATE
  • 40
    10-28642 SCEW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET (TAPERED)
    SCEW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET (TAPERED)
