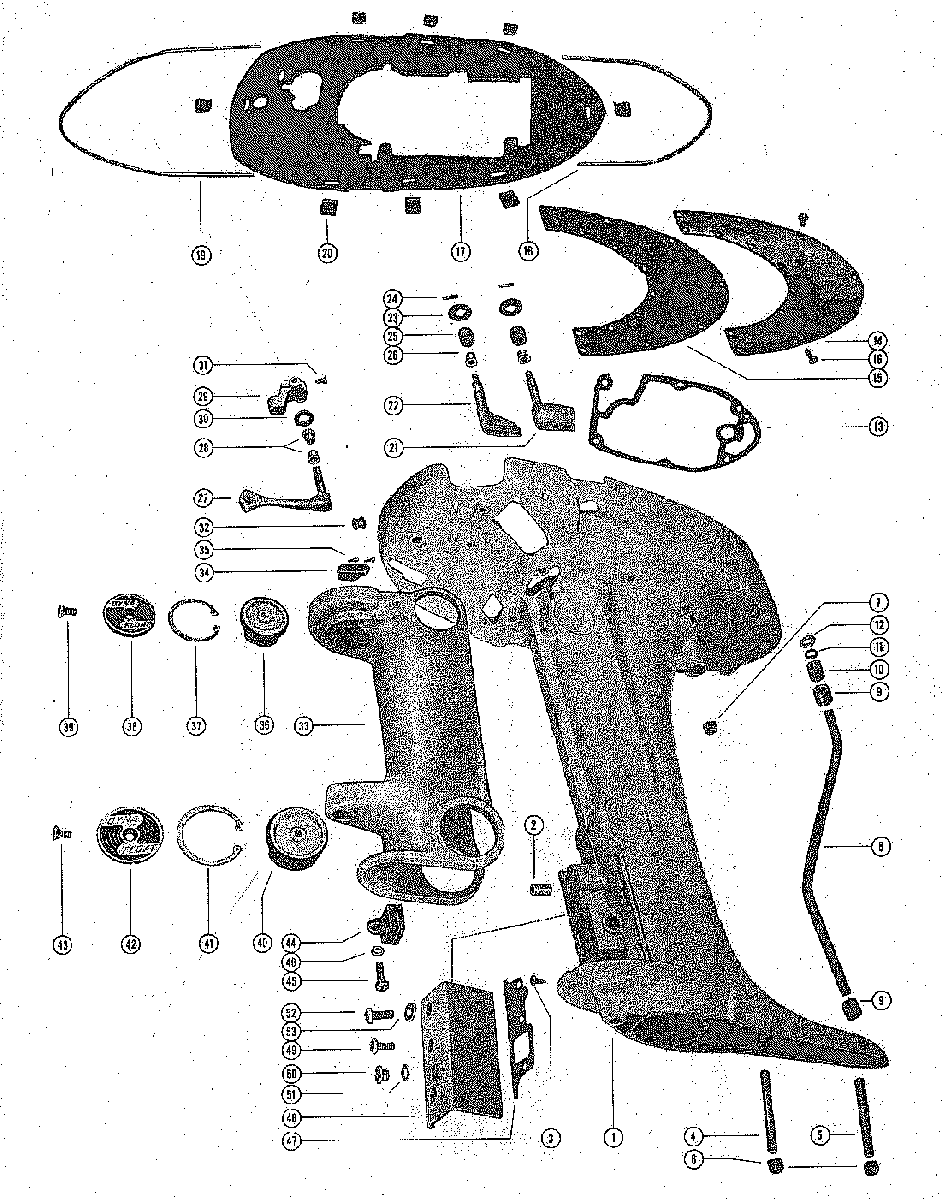

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 100, 150, 200, 250 1290910 THRU 1499331

  • №
    Артикул
    Название
  • 1
    1531-1630A3 DRIVE SHAFT HOUSING ASSEMBLY
    DRIVE SHAFT HOUSING ASSEMBLY
  • 1
    1531-1630A4 DRIVE SHAFT HOUSING ASSEMBLY
    DRIVE SHAFT HOUSING ASSEMBLY
  • 2
    19-29568 PLUG, PLASTIC - DRIVE SHAFT HOUSING
    PLUG, PLASTIC - DRIVE SHAFT HOUSING
  • 2
    17-29452 ROLL PIN, WATER PUMP CARTRIDGE
    ROLL PIN, WATER PUMP CARTRIDGE
  • 3
    10-32089 SCREW, DRIVE - WATER PUMP CARTRIDGE
    SCREW, DRIVE - WATER PUMP CARTRIDGE
  • 4
    16-26324 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
    STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
  • 5
    16-26776 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
    STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
  • 6
    11-82670911 NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING STUD
    NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING STUD
  • 7
    11-24652 NUT, POWERHEAD TO DRIVE SHAFT HOUSING
    NUT, POWERHEAD TO DRIVE SHAFT HOUSING
  • 8
    32-28136 TUBE, WATER INLET
    TUBE, WATER INLET
  • 9
    26-26865 SEAL, RUBBER - WATER INLET TUBE
    SEAL, RUBBER - WATER INLET TUBE
  • 10
    23-28135 SLEEVE, RUBBER - WATER INLET TUBE
    SLEEVE, RUBBER - WATER INLET TUBE
  • 11
    25-62704 "O" RING, WATER INLET TUBE
    "O" RING, WATER INLET TUBE
  • 12
    12-20086 WASHER, WATER INLET TUBE LOCATION
    WASHER, WATER INLET TUBE LOCATION
  • 13
    27-28132 GASKET, POWERHEAD TO DRIVE SHAFT HOUSING
    GASKET, POWERHEAD TO DRIVE SHAFT HOUSING
  • 14
    28119 COVER, EXHAUST RELIEF MUFFLER
    COVER, EXHAUST RELIEF MUFFLER
  • 15
    27-28120 GASEKT, EXHAUST RELIEF MUFFLER COVER
    GASEKT, EXHAUST RELIEF MUFFLER COVER
  • 16
    10-69079 SCREW, EXHAUST RELIEF MUFFLER COVER
    SCREW, EXHAUST RELIEF MUFFLER COVER
  • 16
    10-8M0113176 SCREW, EXHAUST RELIEF MUFFLER COVER
    SCREW, EXHAUST RELIEF MUFFLER COVER
  • 17
    35774 SOUND SEAL, DRIVE SHAFT HOUSING
    SOUND SEAL, DRIVE SHAFT HOUSING
  • 18
    28899 RETAINER, SOUND SEAL - AFT
    RETAINER, SOUND SEAL - AFT
  • 19
    28900 RETAINER, SOUND SEAL - FORWARD
    RETAINER, SOUND SEAL - FORWARD
  • 20
    54-28901 FASTENER, SOUND SEAL TO HOUSING
    FASTENER, SOUND SEAL TO HOUSING
  • 21
    29082A1 LEVER, TOP COWL CLAMPING (PORT)
    LEVER, TOP COWL CLAMPING (PORT)
  • 22
    29083A1 LEVER, TOP COWL CLAMPING (STARBOARD)
    LEVER, TOP COWL CLAMPING (STARBOARD)
  • 23
    11-30428 FASTENER, CLAMPING LEVER HOLDING
    FASTENER, CLAMPING LEVER HOLDING
  • 24
    17-29077 ROLL PIN, CLAMPING LEVER (5/32 X 3/4)
    ROLL PIN, CLAMPING LEVER (5/32 X 3/4)
  • 25
    23-31293 BUSHING, RUBBER CLAMPING LEVER
    BUSHING, RUBBER CLAMPING LEVER
  • 25
    23-31293 BUSHING, RUBBER - CLAMPING LEVER
    BUSHING, RUBBER - CLAMPING LEVER
  • 26
    23-26819 BUSHING, NYLON - CLAMPING LEVER TO HOUSING
    BUSHING, NYLON - CLAMPING LEVER TO HOUSING
  • 26
    12-26825 WASHER, CLAMPING LEVER SHAFT - SEE NOTE BELOW
    WASHER, CLAMPING LEVER SHAFT - SEE NOTE BELOW
  • 26
    18-210711 COTTER PIN, CLAMPING LEVER HOLDING - SEE NOTE BELOW
    COTTER PIN, CLAMPING LEVER HOLDING - SEE NOTE BELOW
  • 23
    11-30428 FASTENER, CLAMPING LEVER HOLDING - SEE NOTE BELOW
    FASTENER, CLAMPING LEVER HOLDING - SEE NOTE BELOW
  • 27
    26836 LEVER, TROLL CONTROL
    LEVER, TROLL CONTROL
  • 28
    23-26841 BUSHING, NYLON - TROLL CONTROL LEVER
    BUSHING, NYLON - TROLL CONTROL LEVER
  • 29
    28112 ARM, TROLL CONTROL LEVER
    ARM, TROLL CONTROL LEVER
  • 30
    13-25906 WASHER, WAVE - TROLL LEVER ARM
    WASHER, WAVE - TROLL LEVER ARM
  • 31
    10-28249 SCREW, SET - ARM TO TROLL CONTROL LEVER
    SCREW, SET - ARM TO TROLL CONTROL LEVER
  • 32
    25-30258 GROMMET, RUBBER - SHORTING SWITCH LEAD HOLE
    GROMMET, RUBBER - SHORTING SWITCH LEAD HOLE
  • 33
    1534-1427 SADDLE
    SADDLE
  • 34
    28932 BUMPER, RUBBER - SADDLE (UPPER)
    BUMPER, RUBBER - SADDLE (UPPER)
  • 35
    10-28942 SCREW, RUBBER BUMPER TO SADDLE
    SCREW, RUBBER BUMPER TO SADDLE
  • 36
    25678 MOUNT, RUBBER (UPPER)
    MOUNT, RUBBER (UPPER)
  • 36
    85002 MOUNT, RUBBER (UPPER)
    MOUNT, RUBBER (UPPER)
  • 37
    53-23720 RING, RETAINING - UPPER MOUNT
    RING, RETAINING - UPPER MOUNT
  • 38
    25155 COVER, UPPER MOUNT
    COVER, UPPER MOUNT
  • 39
    10-28637 SCREW, UPPER MOUNT COVER RETAINING
    SCREW, UPPER MOUNT COVER RETAINING
  • 40
    79948A1 MOUNT, RUBBER (LOWER)
    MOUNT, RUBBER (LOWER)
  • 40
    79947A1 MOUNT, RUBBER (LOWER)
    MOUNT, RUBBER (LOWER)
  • 41
    53-8M0051043 RING, RETAINING - LWOER MOUNT
    RING, RETAINING - LWOER MOUNT
  • 42
    25154 COVER, LOWER MOUNT
    COVER, LOWER MOUNT
  • 43
    10-28637 SCREW, LOWER MOUNT COVER RETAINING
    SCREW, LOWER MOUNT COVER RETAINING
  • 44
    28334 BUMPER, RUBBER - SADDLE (LOWER)
    BUMPER, RUBBER - SADDLE (LOWER)
  • 45
    10-28668 SCREW, RUBBER BUMPER TO SADDLE
    SCREW, RUBBER BUMPER TO SADDLE
  • 46
    12-20028 6WASHER, RUBBER BUMPER FASTENING SCREW
    6WASHER, RUBBER BUMPER FASTENING SCREW
  • 47
    27-26818 GASKET, TRANSMISSION COVER
    GASKET, TRANSMISSION COVER
  • 48
    26824 COVER, TRANSMISSION
    COVER, TRANSMISSION
  • 49
    10-28639 SCREW, TRANSMISSION COVER TO DRIVE SHAFT HOUSING
    SCREW, TRANSMISSION COVER TO DRIVE SHAFT HOUSING
  • 50
    10-79953Q04 SCREW, GEAR HOUSING VENT
    SCREW, GEAR HOUSING VENT
  • 51
    12-191833 WASHER, GEAR HOUSING VENT SCREW
    WASHER, GEAR HOUSING VENT SCREW
  • 52
    10-28638 SCREW, TRANSMISSION COVER FLUSHING HOLE
    SCREW, TRANSMISSION COVER FLUSHING HOLE
  • 53
    12-22937 WAHER, FLUSHING HOLE SCREW
    WAHER, FLUSHING HOLE SCREW
