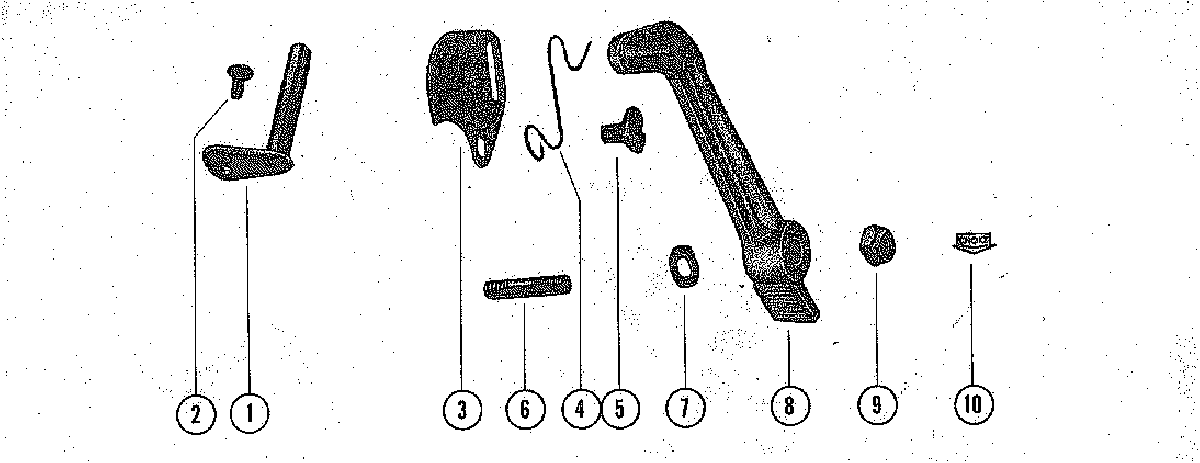

CARBURETOR LINKAGE для Mercury - 100, 150, 200, 250 1290910 THRU 1499331

  • №
    Артикул
    Название
  • 1
    22931A2 THROTTLE LEVER ASSEMBLY
    THROTTLE LEVER ASSEMBLY
  • 1
    22931A4 THROTTLE LEVER ASSEMBLY
    THROTTLE LEVER ASSEMBLY
  • 1
    22931A3 THROTTLE LEVER ASSEMBLY
    THROTTLE LEVER ASSEMBLY
  • 2
    10-20597 SCREW, THROTTLE LEVER TO CARBURETOR
    SCREW, THROTTLE LEVER TO CARBURETOR
  • 2
    23-28039 SPACER, CHOKE SHUTTER
    SPACER, CHOKE SHUTTER
  • 3
    20173 SHUTTER, CHOKE (NOT AS SHOWN)
    SHUTTER, CHOKE (NOT AS SHOWN)
  • 3
    30014 SHUTTER, CHOKE (NOT AS SHOWN)
    SHUTTER, CHOKE (NOT AS SHOWN)
  • 3
    28087 SHUTTER, CHOKE
    SHUTTER, CHOKE
  • 4
    24-20579 SPRING, CHOKE SHUTTER
    SPRING, CHOKE SHUTTER
  • 5
    10-20578 SCREW, CHOKE SHUTTER TO CARBURETOR
    SCREW, CHOKE SHUTTER TO CARBURETOR
  • 5
    10-28018 SCREW, CHOKE SHUTTER TO CARBURETOR (NOT AS SHOWN)
    SCREW, CHOKE SHUTTER TO CARBURETOR (NOT AS SHOWN)
  • 6
    16-270372 STUD, CHOKE LEVER
    STUD, CHOKE LEVER
  • 7
    13-29402 WASHER, WAVE - CHOKE LEVER STUD
    WASHER, WAVE - CHOKE LEVER STUD
  • --
    12-20533 WASHER, CHOKE LEVER STUD
    WASHER, CHOKE LEVER STUD
  • --
    12-20533 WASHER, CHOKE LEVER STUD
    WASHER, CHOKE LEVER STUD
  • 8
    27036 LEVER, CHOKE (NOT AS SHOWN)
    LEVER, CHOKE (NOT AS SHOWN)
  • 8
    28075 LEVER, CHOKE (NOT AS SHOWN)
    LEVER, CHOKE (NOT AS SHOWN)
  • 8
    31816 LEVER, CHOKE
    LEVER, CHOKE
  • 9
    11-826709109 NUT, CHOKE LEVER FASTENING
    NUT, CHOKE LEVER FASTENING
  • 10
    37-28990 DECAL, CHOKE - DRIVE SHAFT HOUSING
    DECAL, CHOKE - DRIVE SHAFT HOUSING
