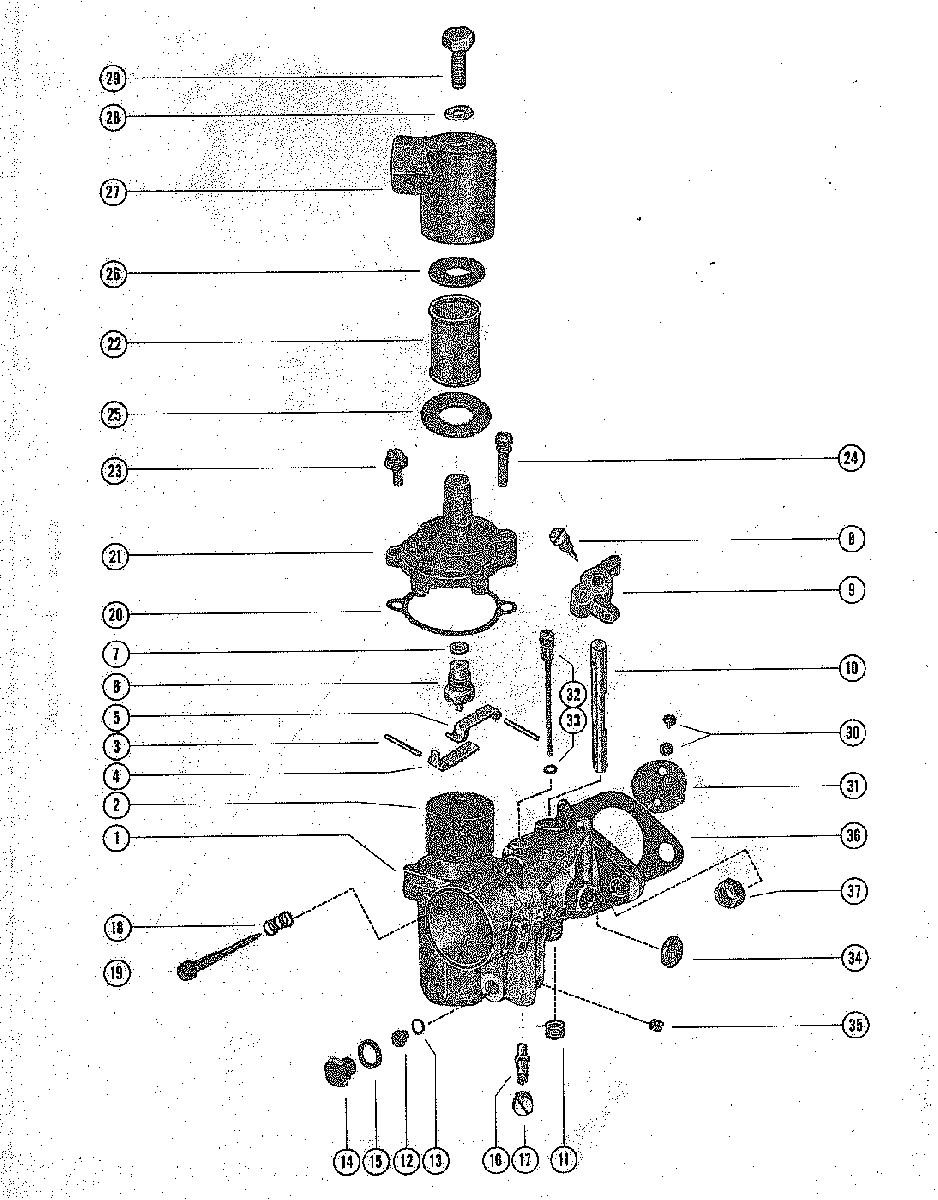

CARBURETOR ASSEMBLY для Mercury - 100, 150, 200, 250 1290910 THRU 1499331
-
№АртикулНазвание
-
11329-1605 CARBURETOR ASSEMBLY COMPLETE (AJ-56AB)CARBURETOR ASSEMBLY COMPLETE (AJ-56AB)
-
11333-1437 CARBURETOR ASSSEMBLY, COMPLETE (KA-5A)CARBURETOR ASSSEMBLY, COMPLETE (KA-5A)
-
11333-1953 CARBURETOR ASSEMBLY, COMPLETE (KA-15A)CARBURETOR ASSEMBLY, COMPLETE (KA-15A)
-
11334-1742 CARBURETOR ASSEMBLY COMPLETE (KB-4A)CARBURETOR ASSEMBLY COMPLETE (KB-4A)
-
11334-1720 CARBURETOR ASSEMBLY COMPLETE (KB-1A)CARBURETOR ASSEMBLY COMPLETE (KB-1A)
-
11333-1437 CARBURETOR ASSEMBLY, COMPLETE (KA-5B)CARBURETOR ASSEMBLY, COMPLETE (KA-5B)
-
21395-8673 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
317-20853 PIN, FLOAT LEVER PINIONPIN, FLOAT LEVER PINION
-
41399-102 LEVER, FLOAT (LOWER)LEVER, FLOAT (LOWER)
-
51399-101 LEVER, FLOAT (UPPER)LEVER, FLOAT (UPPER)
-
61395-92581 INLET NEEDLE, SEAT AND GASKETINLET NEEDLE, SEAT AND GASKET
-
61395-92581 INLET NEEDLE, SEAT AND GASKETINLET NEEDLE, SEAT AND GASKET
-
727-25033 GASKET, INLET SEATGASKET, INLET SEAT
-
81395-6027 SCREW, THROTTLE STOP LEVERSCREW, THROTTLE STOP LEVER
-
98146791 LEVER, THROTTLE STOPLEVER, THROTTLE STOP
-
101399-933 SHAFT, THROTTLESHAFT, THROTTLE
-
101399-1716 SHAFT, THROTTLESHAFT, THROTTLE
-
101399-2012 SHAFT, THROTTLESHAFT, THROTTLE
-
1124-20869 SPRING, THROTTLE SHAFT RETURNSPRING, THROTTLE SHAFT RETURN
-
121399-1457 JET, MAIN FUEL (.057)-STANDARDJET, MAIN FUEL (.057)-STANDARD
-
121399-1457 JET, MAIN FUEL (.057)-STANDARDJET, MAIN FUEL (.057)-STANDARD
-
121399-1655 JET, MAIN FUEL(.055)JET, MAIN FUEL(.055)
-
121399-1653 JET, MAIN FUEL (.053)JET, MAIN FUEL (.053)
-
121399-1651 JET, MAIN FUEL (.051)-STANDARDJET, MAIN FUEL (.051)-STANDARD
-
121399-1651 JET, MAIN FUEL (.051)-STANDARDJET, MAIN FUEL (.051)-STANDARD
-
121399-1649 JET, MAIN FUEL(.049)JET, MAIN FUEL(.049)
-
121399-1767 JET, MAIN FUEL (.047)JET, MAIN FUEL (.047)
-
121399-1765 JET, MAIN FUEL (.045)JET, MAIN FUEL (.045)
-
121399-1459 JET, MAIN FUEL (.059)JET, MAIN FUEL (.059)
-
121399-1461 JET, MAIN FUEL (.061)JET, MAIN FUEL (.061)
-
121399-1463 JET, MAIN FUEL (.063)-STANDARDJET, MAIN FUEL (.063)-STANDARD
-
1327-28409 GASKET, MAIN FUEL JETGASKET, MAIN FUEL JET
-
1410-28405 SCREW, PLUG - MAIN FUEL JET CHANNELSCREW, PLUG - MAIN FUEL JET CHANNEL
-
1527-28406 GASKET, JET CHANNEL PLUG SCREWGASKET, JET CHANNEL PLUG SCREW
-
161399-1761 NOZZLE, MAINNOZZLE, MAIN
-
161399-1763 NOZZLE, MAINNOZZLE, MAIN
-
161399-1474 NOZZLE, MAINNOZZLE, MAIN
-
161399-1985 NOZZLE, MAINNOZZLE, MAIN
-
161399-1912 NOZZLE, MAINNOZZLE, MAIN
-
1710-23178 SCREW, PLUG - MAIN NOZZLESCREW, PLUG - MAIN NOZZLE
-
1824-27160 SPRING, IDLE ADJUSTMENT SCREWSPRING, IDLE ADJUSTMENT SCREW
-
191399-1450 SCREW, IDLE ADJUSTMENTSCREW, IDLE ADJUSTMENT
-
191399-1760 SCREW, IDLE ADJUSTMENTSCREW, IDLE ADJUSTMENT
-
1920577 CUP, IDLE ADJUSTMENT SCREWCUP, IDLE ADJUSTMENT SCREW
-
191399-1713 SCREW, IDLE ADJUSTMENTSCREW, IDLE ADJUSTMENT
-
191399-1713 SCREW, IDLE ADJUSTMENTSCREW, IDLE ADJUSTMENT
-
201399-99 GASKET FLOAT BOWL COVERGASKET FLOAT BOWL COVER
-
211399-1133 COVER, FLOAT BOWLCOVER, FLOAT BOWL
-
221399-3938 ELEMENT, FILTERELEMENT, FILTER
-
2310-22625 SCREW, FLOAT BOWL COVER (SHORT)SCREW, FLOAT BOWL COVER (SHORT)
-
2410-25850 SCREW, FLOAT BOWL COVER (LONG)SCREW, FLOAT BOWL COVER (LONG)
-
2527-25851 GASKET, STRAINER COVER (LARGE)GASKET, STRAINER COVER (LARGE)
-
2627-25849 GASKET, STRAINER COVER (SMALL)GASKET, STRAINER COVER (SMALL)
-
271399-1135 COVER, STRAINERCOVER, STRAINER
-
2827-25848 GASKET, STRAINER COVER SCREWGASKET, STRAINER COVER SCREW
-
2910-25822 SCREW, STRAINER COVER FASTENINGSCREW, STRAINER COVER FASTENING
-
3010-23035 SCREW AND LOCKWASHER, THROTTLE SHUTTERSCREW AND LOCKWASHER, THROTTLE SHUTTER
-
3010-23035 SCREW AND LOCKWASHER, THROTTLE SHUTTERSCREW AND LOCKWASHER, THROTTLE SHUTTER
-
311399-1270 SHUTTER, THROTTLESHUTTER, THROTTLE
-
311399-1480 SHUTTER, THROTTLESHUTTER, THROTTLE
-
311399-1740 SHUTTER, THROTTLESHUTTER, THROTTLE
-
321399-960 TUBE, IDLETUBE, IDLE
-
3210-23030 SCREW, PLUG - IDLE TUBESCREW, PLUG - IDLE TUBE
-
321399-1762 TUBE, IDLETUBE, IDLE
-
321399-1479 TUBE, IDLETUBE, IDLE
-
321399-1710 TUBE, IDLETUBE, IDLE
-
321399-1828 TUBE, IDLETUBE, IDLE
-
3327-23180 GASKET, IDLE TUBEGASKET, IDLE TUBE
-
3419-20011 WELCH PLUG, BODY CHANNELWELCH PLUG, BODY CHANNEL
-
3510-20870 SCREW, PLUG - BODY CHANNELSCREW, PLUG - BODY CHANNEL
-
3510-28845 SCREW, PLUG - BODY CHANNELSCREW, PLUG - BODY CHANNEL
-
351399-1145 GASKET AND PACKING SETGASKET AND PACKING SET
-
351399-1717 GASKET AND PACKING SETGASKET AND PACKING SET
-
351399-2015 GASKET AND PACKING SETGASKET AND PACKING SET
-
351399-1705 REPAIR PARTS KITREPAIR PARTS KIT
-
351399-1766 REPAIR PARTS KITREPAIR PARTS KIT
-
351399-1146 REPAIR PARTS KITREPAIR PARTS KIT
-
351399-1764 REPAIR PARTS KITREPAIR PARTS KIT
-
351399-1481 REPAIR PARTS KITREPAIR PARTS KIT
-
351399-1913 REPAIR PARTS KITREPAIR PARTS KIT
-
351399-1986 REPAIR PARTS KITREPAIR PARTS KIT
-
3627-63309 GASKET, CARBURETOR FLANGEGASKET, CARBURETOR FLANGE
-
3627-757911 GASKET, CARBURETOR FLANGEGASKET, CARBURETOR FLANGE
-
3711-24652 NUT, CARBURETOR MOUNTING STUDNUT, CARBURETOR MOUNTING STUD
-
3711-22053 NUT, CARBURETOR MOUNTING STUDNUT, CARBURETOR MOUNTING STUD
