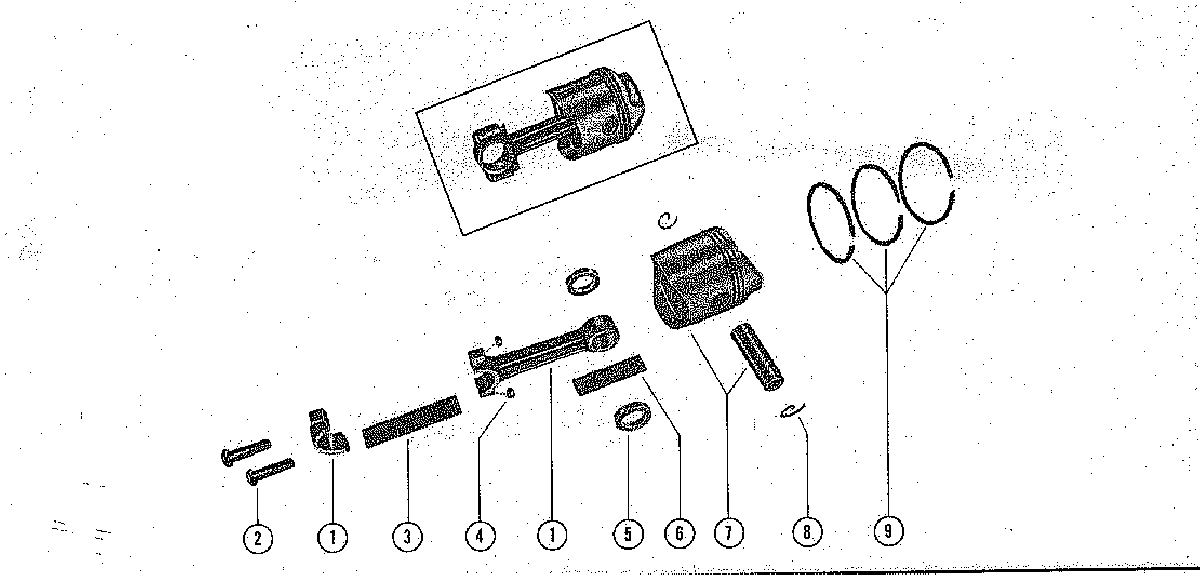

PISTON AND CONNECTING ROD ASSEMBLY для Mercury - 100, 150, 200, 250 1290910 THRU 1499331

  • №
    Артикул
    Название
  • 1
    600-2748A3 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 1
    600-2748A2 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 2
    10-45379 SCREW, CONNECTING ROD
    SCREW, CONNECTING ROD
  • 3
    29-20046T BEARING, NEEDLE - CRANKPIN
    BEARING, NEEDLE - CRANKPIN
  • 4
    11-20061 NUT, CONNECTING ROD SCREW
    NUT, CONNECTING ROD SCREW
  • 5
    12-26178 WASHER, NEEDLE BEARING RETAINING (1/32")
    WASHER, NEEDLE BEARING RETAINING (1/32")
  • 5
    12-28121 WASHER, NEEDLE BEARING RETAINING (1/16")
    WASHER, NEEDLE BEARING RETAINING (1/16")
  • 6
    29-20063 BEARING, NEEDLE - PISTON PIN
    BEARING, NEEDLE - PISTON PIN
  • 7
    713-1527A2 PISTON AND PISTON PIN ASSEMBLY
    PISTON AND PISTON PIN ASSEMBLY
  • 7
    724-2537A2 PISTON AND PISTON PIN ASSEMBLY
    PISTON AND PISTON PIN ASSEMBLY
  • 8
    40-20057 LOCK RING, PISTON PIN
    LOCK RING, PISTON PIN
  • 9
    39-23124A12 RING, PISTON
    RING, PISTON
  • 9
    39-27841A12 RING, PISTON
    RING, PISTON
