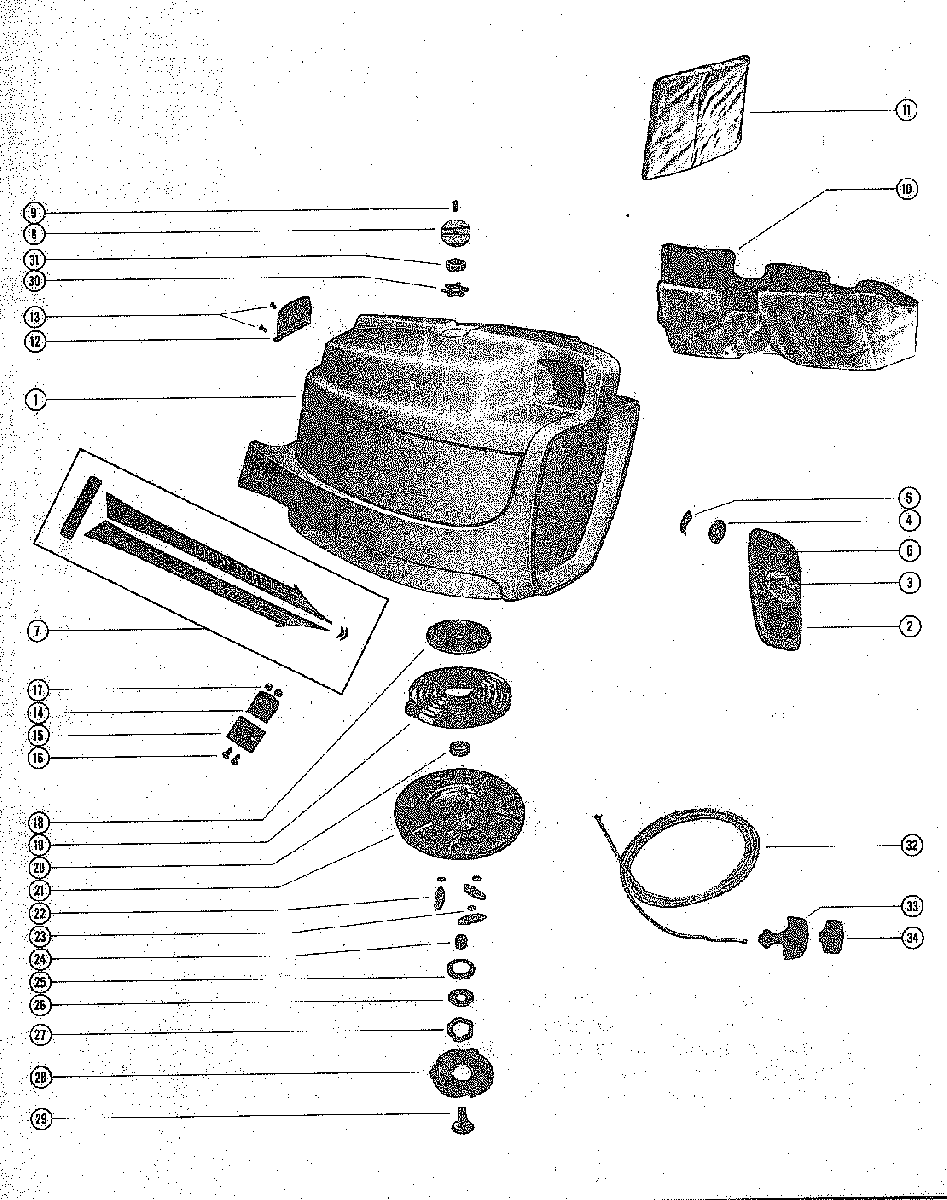

TOP COWL AND STARTER ASSEMBLY для Mercury - 100, 150, 200, 250 1290910 THRU 1499331

  • №
    Артикул
    Название
  • 1
    176-1425A10 TOP COWL ASSEMBLY (NOT AS SHOWN)
    TOP COWL ASSEMBLY (NOT AS SHOWN)
  • 2
    29897A1 PLAQUE ASSEMBLY, TOP COWL (NOT AS SHOWN)
    PLAQUE ASSEMBLY, TOP COWL (NOT AS SHOWN)
  • 3
    26183A5 EMBLEM, TOP COWL PLAQUE
    EMBLEM, TOP COWL PLAQUE
  • 4
    12-27149 WASHER, NYLON - BLANKET TO EMBLEM RiVET
    WASHER, NYLON - BLANKET TO EMBLEM RiVET
  • 5
    53-25539 FASTENER, EMBLEM RIVET
    FASTENER, EMBLEM RIVET
  • 1
    176-1425 TOP COWL
    TOP COWL
  • 2
    29819A1 PLAQUE ASSEMBLY, TOP COWL (NOT AS SHOWN)
    PLAQUE ASSEMBLY, TOP COWL (NOT AS SHOWN)
  • 2
    31100A1 PLAQUE ASSEMBLY, TOP COWL
    PLAQUE ASSEMBLY, TOP COWL
  • 2
    31100A2 PLAQUE ASSEMBLY, TOP COWL
    PLAQUE ASSEMBLY, TOP COWL
  • 2
    31100A3 PLAQUE ASSEMBLY, TOP COWL
    PLAQUE ASSEMBLY, TOP COWL
  • 3
    26183A5 EMBLEM, TOP COWL PLAQUE
    EMBLEM, TOP COWL PLAQUE
  • 3
    26183A5 EMBLEM, TOP COWL PLAQUE
    EMBLEM, TOP COWL PLAQUE
  • 6
    37-31101 DECAL, FRONT PLAQUE - TOP COWL
    DECAL, FRONT PLAQUE - TOP COWL
  • 6
    37-31102 DECAL, FRONT PLAQUE - TOP COWL
    DECAL, FRONT PLAQUE - TOP COWL
  • 6
    37-31869 DECAL, FRONT PLAQUE - TOP COWL
    DECAL, FRONT PLAQUE - TOP COWL
  • 4
    12-27149 WASHER, NYLON - FRONT PLAQUE TO TOP COWL
    WASHER, NYLON - FRONT PLAQUE TO TOP COWL
  • 5
    53-25539 FASTENER, FRONT PLAQUE TO TOP COWL
    FASTENER, FRONT PLAQUE TO TOP COWL
  • 7
    37-29863 DECAL SET, TOP COWL (NOT AS SHOWN)
    DECAL SET, TOP COWL (NOT AS SHOWN)
  • 7
    37-13053A86 DECAL SET, TOP COWL (NOT AS SHOWN)
    DECAL SET, TOP COWL (NOT AS SHOWN)
  • 7
    37-89323A80 DECAL SET, TOP COWL (NOT AS SHOWN)
    DECAL SET, TOP COWL (NOT AS SHOWN)
  • 7
    37-89323A80 DECAL SET, TOP COWL
    DECAL SET, TOP COWL
  • 8
    28041 COVER, TRIM - TOP COWL
    COVER, TRIM - TOP COWL
  • 9
    10-28156 SCREW, TRIM COVER TO TOP COWL
    SCREW, TRIM COVER TO TOP COWL
  • 10
    33575 BLANKET, TOP COWL - FRONT AND SIDE
    BLANKET, TOP COWL - FRONT AND SIDE
  • 11
    28278 BLANKET, TOP COWL - REAR
    BLANKET, TOP COWL - REAR
  • 12
    28823 SCREEN, VENT - TOP COWL
    SCREEN, VENT - TOP COWL
  • 13
    10-8M0113176 SCREW, SCREEN TO TOP COWL
    SCREW, SCREEN TO TOP COWL
  • 13
    10-69079 SCREW, SCREEN TO TOP COWL
    SCREW, SCREEN TO TOP COWL
  • 14
    28113 BRACKET, TOP COWL MOUNTING
    BRACKET, TOP COWL MOUNTING
  • 15
    27-28448 GASKET, TOP COWL MOUNTING BRACKET
    GASKET, TOP COWL MOUNTING BRACKET
  • 16
    10-29072 SCREW, MOUNTING BRACKET TO TOP COWL
    SCREW, MOUNTING BRACKET TO TOP COWL
  • 17
    11-27164 NUT, MOUNTING BRACKET SCREW
    NUT, MOUNTING BRACKET SCREW
  • 18
    20155 RETAINER, STARTER SPRING
    RETAINER, STARTER SPRING
  • 19
    24-29340T02 SPRING, STARTER REWIND
    SPRING, STARTER REWIND
  • 20
    23-20159 BUSHING, SPRING GUIDE
    BUSHING, SPRING GUIDE
  • 21
    50-64008A1 SHEAVE ASSEMBLY, STARTER
    SHEAVE ASSEMBLY, STARTER
  • 22
    20162 PAWL, STARTER
    PAWL, STARTER
  • 23
    13-29402 WASHER, WAVE - STARTER PAWL
    WASHER, WAVE - STARTER PAWL
  • 24
    23-20158 SPACER, SHEAVE SHAFT
    SPACER, SHEAVE SHAFT
  • 25
    26179 RETAINER, WAVE WASHER
    RETAINER, WAVE WASHER
  • 26
    12-26180 WASHER, WAVE WASHER RETAINER
    WASHER, WAVE WASHER RETAINER
  • 27
    13-20160 WASHER, WAVE - STARTER SHEAVE TENSION
    WASHER, WAVE - STARTER SHEAVE TENSION
  • 28
    20164 PLATE, RETAINER - STARTER PAWL
    PLATE, RETAINER - STARTER PAWL
  • 29
    20157 SHAFT, SHEAVE
    SHAFT, SHEAVE
  • 30
    14-20165 TAB WASHER, SHEAVE SHAFT NUT
    TAB WASHER, SHEAVE SHAFT NUT
  • 31
    11-20166 NUT, SHEAVE SHAFT(LEFT HAND THREAD)
    NUT, SHEAVE SHAFT(LEFT HAND THREAD)
  • 32
    50-12066Q10 STARTER CABLE ASSEMBLY
    STARTER CABLE ASSEMBLY
  • 33
    28747 HANDLE, STARTER CABLE
    HANDLE, STARTER CABLE
  • 33
    92-86166Q1 GLUE, ADHESIVE - BLANKET FASTENING
    GLUE, ADHESIVE - BLANKET FASTENING
  • 33
    92-271091 ADHESIVE COMPOUND, EMBLEM FASTENING (3-1/2 OZ. KIT)
    ADHESIVE COMPOUND, EMBLEM FASTENING (3-1/2 OZ. KIT)
