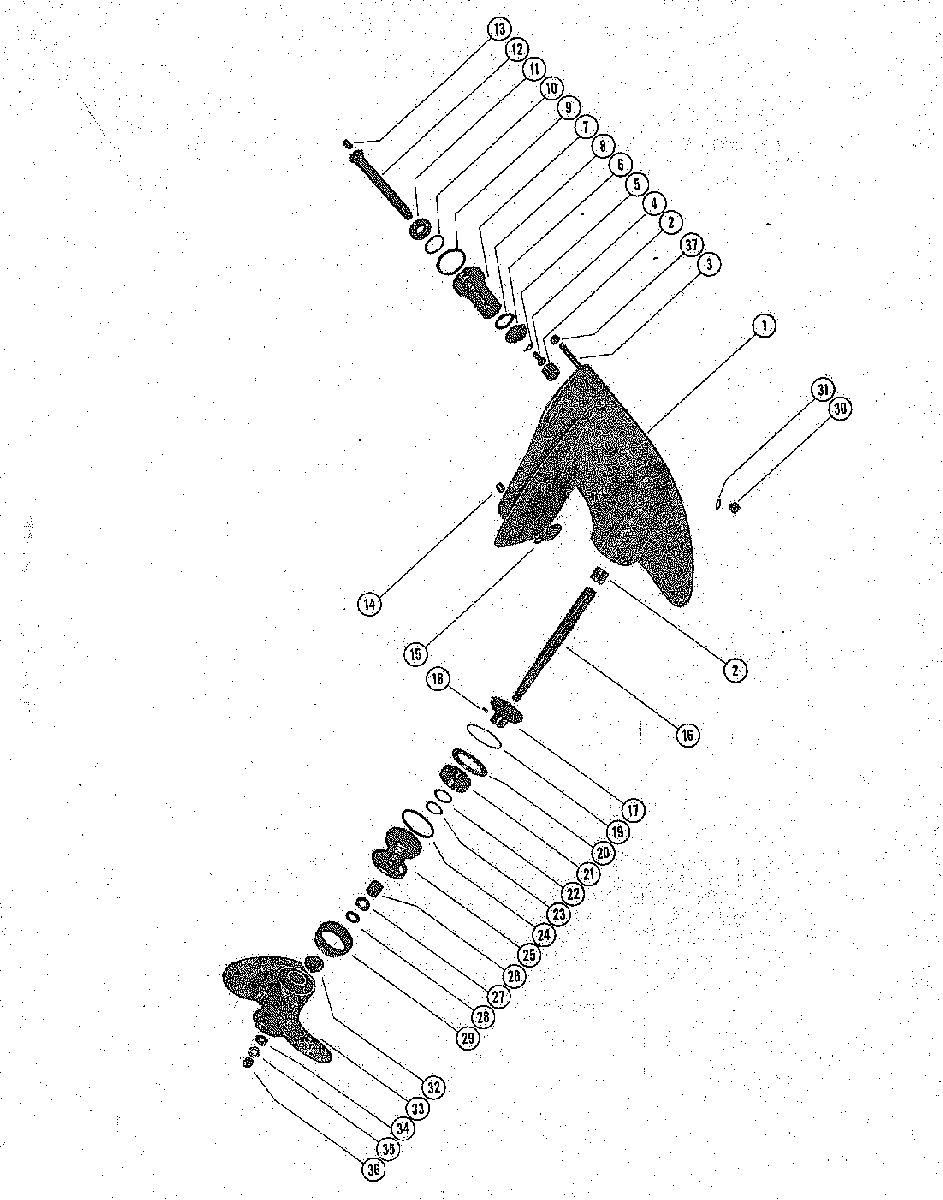

GEAR HOUSING ASSEMBLY для Mercury - 100, 150, 200, 250 1290910 THRU 1499331

  • №
    Артикул
    Название
  • 1614-1440A3 GEAR HOUSING ASSEMBLY, COMPLETE (LESS PROP.)
    GEAR HOUSING ASSEMBLY, COMPLETE (LESS PROP.)
  • 1614-1440A2 GEAR HOUSING ASSEMBLY, COMPLETE (LESS PROP.)
    GEAR HOUSING ASSEMBLY, COMPLETE (LESS PROP.)
  • 1
    1614-1440A1 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 2
    31-28157 BEARING, ROLLER - PROP AND DRIVE SHAFT
    BEARING, ROLLER - PROP AND DRIVE SHAFT
  • 3
    16-26809 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING
    STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING
  • 4
    10-21153 SCREW, PINION GEAR TO DRIVE SHAFT
    SCREW, PINION GEAR TO DRIVE SHAFT
  • 5
    14-20806 TAB WASHER, PINION GEAR SCREW
    TAB WASHER, PINION GEAR SCREW
  • 6
    43-26312 GEAR, PINION
    GEAR, PINION
  • 6
    43-27997 GEAR, PINION
    GEAR, PINION
  • 7
    26315A1 PILOT ASSEMBLY, GEAR HOUSING
    PILOT ASSEMBLY, GEAR HOUSING
  • 8
    25-26317 "O" RING, PILOT ASSEMBLY (LOWER)
    "O" RING, PILOT ASSEMBLY (LOWER)
  • 9
    25-30224 "O" RING, PILOT ASSEMBLY (UPPER)
    "O" RING, PILOT ASSEMBLY (UPPER)
  • 10
    15-21886A1 SHIM, BALL BEARING TO PILOT
    SHIM, BALL BEARING TO PILOT
  • 11
    30-21776 BEARING, BALL - PILOT AND DRIVE SHAFT
    BEARING, BALL - PILOT AND DRIVE SHAFT
  • 12
    45-26694A1 DRIVE SHAFT ASSEMBLY (LOWER)
    DRIVE SHAFT ASSEMBLY (LOWER)
  • 13
    23-26660 BUSHING, DRIVE SHAFT
    BUSHING, DRIVE SHAFT
  • 14
    17-20201 DOWEL, HOLLOW - DRIVE SHAFT HOUSING STUD
    DOWEL, HOLLOW - DRIVE SHAFT HOUSING STUD
  • 15
    35-26314 SCREEN, WATER INLET - GEAR HOUSING
    SCREEN, WATER INLET - GEAR HOUSING
  • 16
    44-28275A2 SHAFT, PROPELLER
    SHAFT, PROPELLER
  • 16
    44-28275A2 SHAFT, PROPELLER
    SHAFT, PROPELLER
  • 17
    43-26311 GEAR, PROPELLER
    GEAR, PROPELLER
  • 17
    43-27998 GEAR, PROPELLER
    GEAR, PROPELLER
  • 18
    17-813061 PIN, PROPELLER GEAR TO SHAFT
    PIN, PROPELLER GEAR TO SHAFT
  • 19
    15-26320A1 SHIM, "L" WASHER TO GEAR HOUSING
    SHIM, "L" WASHER TO GEAR HOUSING
  • 20
    12-26309 "L" WASHER, BALL BEARING
    "L" WASHER, BALL BEARING
  • 21
    30-63326T BEARING, BALL - PROPELLER GEAR
    BEARING, BALL - PROPELLER GEAR
  • 22
    15-21158A1 SHIM, BALL BEARING TO SNAP RING
    SHIM, BALL BEARING TO SNAP RING
  • 23
    53-21159 RING, SNAP - BALL BEARING TO PROPELLER GEAR
    RING, SNAP - BALL BEARING TO PROPELLER GEAR
  • 24
    25-20826 "O" RING, BEARING CARRIER ASSEMBLY
    "O" RING, BEARING CARRIER ASSEMBLY
  • 25
    28460A1 BEARING CARRIER ASSEMBLY
    BEARING CARRIER ASSEMBLY
  • 26
    31-28157 BEARING, ROLLER - BEARING CARRIER
    BEARING, ROLLER - BEARING CARRIER
  • 27
    26-27163 OIL SEAL, BEARING CARRIER (SPRING LOADED)
    OIL SEAL, BEARING CARRIER (SPRING LOADED)
  • 28
    26-26805 OIL SEAL, BEARING CARRIER
    OIL SEAL, BEARING CARRIER
  • 29
    26310 COVER, GEAR HOUSING
    COVER, GEAR HOUSING
  • 30
    10-79953Q04 SCREW, GREASE FILLER HOLE
    SCREW, GREASE FILLER HOLE
  • 31
    12-191833 WASHER, GREASE FILLER HOLD SCREW
    WASHER, GREASE FILLER HOLD SCREW
  • 32
    23-85964A1 COLLAR, PROPELLER SHAFT
    COLLAR, PROPELLER SHAFT
  • 33
    48-26608A1 PROPELLER ASSEMBLY
    PROPELLER ASSEMBLY
  • 33
    48-28880A1 PROPELLER ASSEMBLY
    PROPELLER ASSEMBLY
  • 33
    48-28036A1 PROPELLER ASSEMBLY
    PROPELLER ASSEMBLY
  • 34
    11-64075A1 SPACER, PROPELLER (SPLINED)
    SPACER, PROPELLER (SPLINED)
  • 35
    12-27025 WASHER, PROPELLER NUT
    WASHER, PROPELLER NUT
  • 36
    11-27687 NUT, PROPELLER
    NUT, PROPELLER
  • 37
    11-82670911 NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
    NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
