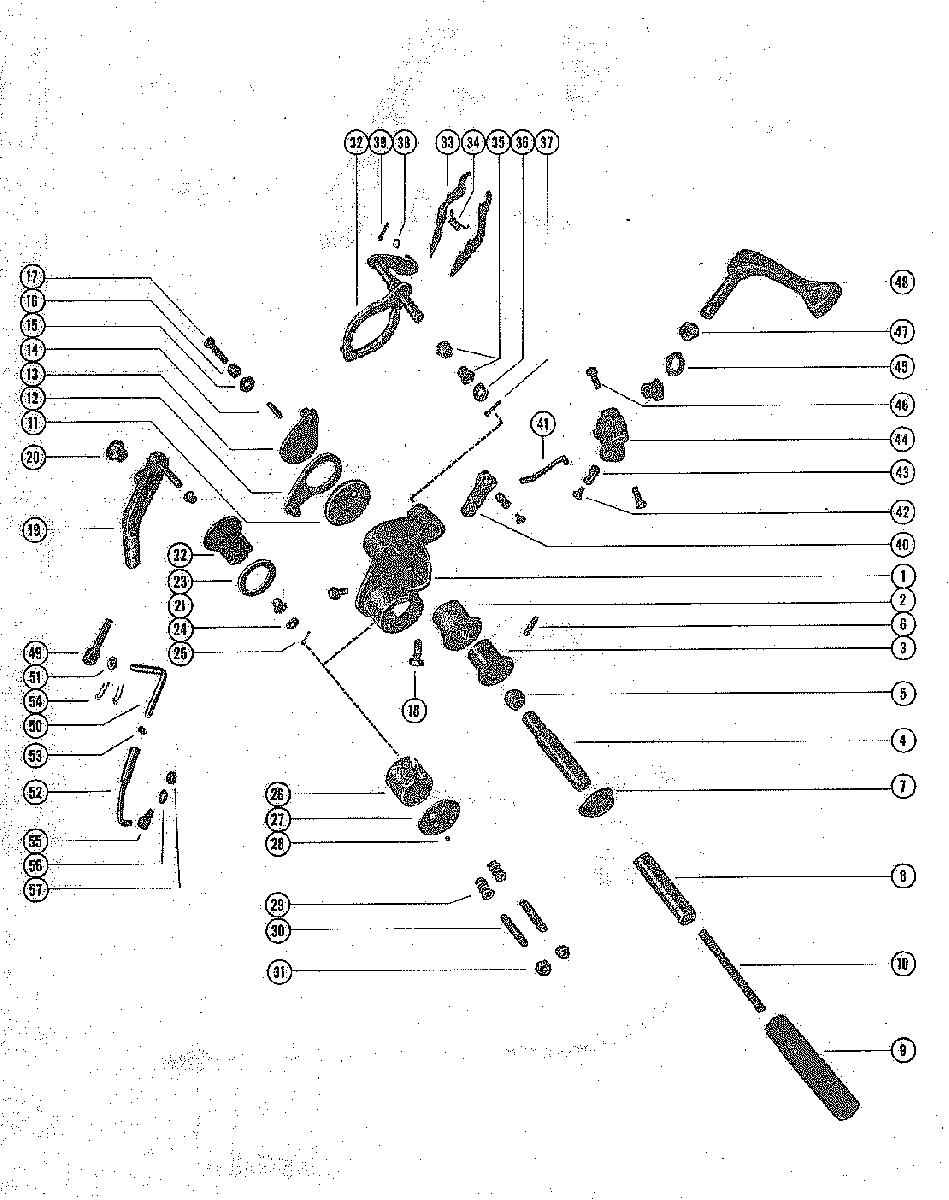

SYNCHRONIZE THROTTLE AND SHIFT CONTROL для Mercury - 100, 150, 200, 250 1290910 THRU 1499331

  • №
    Артикул
    Название
  • 1
    28089 BODY, SYNCHRONIZER
    BODY, SYNCHRONIZER
  • 2
    23-28247 BUSHING, NYLON - SUPPORT SHAFT TO BODY (7/8")
    BUSHING, NYLON - SUPPORT SHAFT TO BODY (7/8")
  • 3
    28215 SHAFT, SUPPORT - PRIMARY DRIVE
    SHAFT, SUPPORT - PRIMARY DRIVE
  • 4
    28808 SHAFT, INPUT - PRIMARY DRIVE
    SHAFT, INPUT - PRIMARY DRIVE
  • 5
    28216 BALL JOINT, NYLON - INPUT SHAFT
    BALL JOINT, NYLON - INPUT SHAFT
  • 6
    17-28235 PIN, BALL JOINT TO INPUT AND SUPPORT SHAFT
    PIN, BALL JOINT TO INPUT AND SUPPORT SHAFT
  • 7
    23-20571 BUSHING, RUBBER - INPUT SHAFT
    BUSHING, RUBBER - INPUT SHAFT
  • 8
    23-28478 SLEEVE, INNER - INPUT SHAFT
    SLEEVE, INNER - INPUT SHAFT
  • 9
    32-28475 TUBE, OUTER - INPUT SHAFT (RUBBER)
    TUBE, OUTER - INPUT SHAFT (RUBBER)
  • 10
    24-28234 SPRING, INPUT SHAFT
    SPRING, INPUT SHAFT
  • 11
    28153 ECCENTRIC, PRIMARY DRIVE SHAFT
    ECCENTRIC, PRIMARY DRIVE SHAFT
  • 12
    28213A1 LINK, PRIMARY TO MAGNETO CONTROL LEVER
    LINK, PRIMARY TO MAGNETO CONTROL LEVER
  • 13
    28226A1 ACTUATOR ASSEMBLY, SHIFT CAM
    ACTUATOR ASSEMBLY, SHIFT CAM
  • 14
    29-25015 PIN, ROLLER - ECCENTRIC POSITIONING
    PIN, ROLLER - ECCENTRIC POSITIONING
  • 15
    12-28463 WASHER, ACTUATOR FASTENING SCREW
    WASHER, ACTUATOR FASTENING SCREW
  • 16
    23-28462 SPACER, ACTUATOR FASTENING SCREW
    SPACER, ACTUATOR FASTENING SCREW
  • 17
    10-28425 SCREW, ACTUATOR TO PRIMARY DRIVE SHAFT
    SCREW, ACTUATOR TO PRIMARY DRIVE SHAFT
  • 18
    10-69035 SCREW, SYNCHRONIZER BODY TO DRIVE SHAFT HOUSING
    SCREW, SYNCHRONIZER BODY TO DRIVE SHAFT HOUSING
  • 19
    28111 LEVER, MAGNETO CONTROL
    LEVER, MAGNETO CONTROL
  • 20
    23-26841 BUSHING, NYLON - MAGNETO CONTROL LEVER
    BUSHING, NYLON - MAGNETO CONTROL LEVER
  • 21
    23-26856 BUSHING, NYLON - MAGNETO CONTROL LEVER (1/4")
    BUSHING, NYLON - MAGNETO CONTROL LEVER (1/4")
  • 22
    28354 CAM, CONTROL LEVER
    CAM, CONTROL LEVER
  • 23
    28353 PLATE, CLUTCH - REAR
    PLATE, CLUTCH - REAR
  • 24
    12-20583 WASHER, CONTROL LEVER TO BODY
    WASHER, CONTROL LEVER TO BODY
  • 25
    18-28365 COTTER PIN, LOCK - CONTROL LEVER TO CAM
    COTTER PIN, LOCK - CONTROL LEVER TO CAM
  • 26
    23-28352 BUSHING, NYLON - SYNCHRONIZER BODY (1")
    BUSHING, NYLON - SYNCHRONIZER BODY (1")
  • 27
    28355 PLATE, CLUTCH - FRONT
    PLATE, CLUTCH - FRONT
  • 28
    30-28685 BALL, DETENT - CLUTCH PLATE TO SYNCHRONIZER
    BALL, DETENT - CLUTCH PLATE TO SYNCHRONIZER
  • 28
    28356 PLATE, CLUTCH RETAINING (NOT REQUIRED ON LATER ENGINES)
    PLATE, CLUTCH RETAINING (NOT REQUIRED ON LATER ENGINES)
  • 29
    24-28357 SPRING, CLUTCH PLATE TENSION
    SPRING, CLUTCH PLATE TENSION
  • 30
    16-69016 STUD, CLUTCH RETAINING PLATE TO CAM
    STUD, CLUTCH RETAINING PLATE TO CAM
  • 31
    11-20110 NUT, CLUTCH RETAINING PLATE STUD
    NUT, CLUTCH RETAINING PLATE STUD
  • 32
    28218A1 SHIFT CAM ASSEMBLY
    SHIFT CAM ASSEMBLY
  • 33
    28221 LEVER, DETENT
    LEVER, DETENT
  • 34
    24-28233 SPRING, TENSION - DETENT LEVER
    SPRING, TENSION - DETENT LEVER
  • 35
    23-26841 BUSHING, NYLON - SHIFT CAM SHAFT (5/16")
    BUSHING, NYLON - SHIFT CAM SHAFT (5/16")
  • 36
    12-20546 WASHER, SHIFT CAM SHAFT
    WASHER, SHIFT CAM SHAFT
  • 37
    18-210711 COTTER PIN, SHIFT CAM SHAFT TO BODY
    COTTER PIN, SHIFT CAM SHAFT TO BODY
  • 38
    13-27071 WASHER, WAVE - SHIFT CAM PIN
    WASHER, WAVE - SHIFT CAM PIN
  • 39
    18-26953 COTTER PIN, UPPER SHIFT SHAFT TO SHIFT CAM
    COTTER PIN, UPPER SHIFT SHAFT TO SHIFT CAM
  • 40
    28109 LEVER, CAM CONTROL
    LEVER, CAM CONTROL
  • 41
    28675 LINK, DRAG - TROLL CONTROL
    LINK, DRAG - TROLL CONTROL
  • 42
    10-28674 SCREW, DRAG LINK TO TROLL ARM AND CAM LEVER
    SCREW, DRAG LINK TO TROLL ARM AND CAM LEVER
  • 43
    17-28673 PIN, ANCHOR - TROLL CONTROL ARM
    PIN, ANCHOR - TROLL CONTROL ARM
  • 44
    28112 ARM, TROLL CONTROL LEVER
    ARM, TROLL CONTROL LEVER
  • 45
    13-25906 WASHER, WAVE - TROLL CONTROL LEVER
    WASHER, WAVE - TROLL CONTROL LEVER
  • 46
    10-28249 SCREW, SET - ARM TO TROLL CONTROL LEVER
    SCREW, SET - ARM TO TROLL CONTROL LEVER
  • 47
    23-26841 BUSHING, NYLON - TROLL CONTROL ELVER
    BUSHING, NYLON - TROLL CONTROL ELVER
  • 48
    26836 LEVER, TOLL CONTROL
    LEVER, TOLL CONTROL
  • 49
    26769 BOLT, SWIVEL - MAGNETO CONTROL LEVER - EARLY MODELS
    BOLT, SWIVEL - MAGNETO CONTROL LEVER - EARLY MODELS
  • 50
    28368 LINK, ADJUSTING - MAGNETO CONTROL ROD - EARLY MODELS
    LINK, ADJUSTING - MAGNETO CONTROL ROD - EARLY MODELS
  • 49
    10-34697 BOLT, SWIVEL - MAGNETO CONTROL LEVER - LATE MODELS
    BOLT, SWIVEL - MAGNETO CONTROL LEVER - LATE MODELS
  • 50
    31428 LINK, ADJUSTING - MAGNETO CONTROL ROD - LATE MODELS
    LINK, ADJUSTING - MAGNETO CONTROL ROD - LATE MODELS
  • 51
    12-26014 WASHER, SWIVEL BOLT TO ADJUSTING LINK - LATE MODELS
    WASHER, SWIVEL BOLT TO ADJUSTING LINK - LATE MODELS
  • 52
    28367 ROD, MAGNETO CONTROL
    ROD, MAGNETO CONTROL
  • 53
    11-68219 NUT, LOCK - ADJUSTING LINK
    NUT, LOCK - ADJUSTING LINK
  • 54
    18-26811 COTTER PIN, ADJUSTING LINK TO SWIVEL BOLT
    COTTER PIN, ADJUSTING LINK TO SWIVEL BOLT
  • 54
    18-26811 COTTER PIN, ADJUSTING LINK TO SWIVEL BOLT
    COTTER PIN, ADJUSTING LINK TO SWIVEL BOLT
  • 55
    28232 BOLT, TOGGLE-THROTTLE CONTROL CAM
    BOLT, TOGGLE-THROTTLE CONTROL CAM
  • 56
    13-29402 WASHER, WAVE - TOGGLE BOLT
    WASHER, WAVE - TOGGLE BOLT
  • 57
    11-826709109 NUT, TOGGLE BOLT FASTENING
    NUT, TOGGLE BOLT FASTENING
