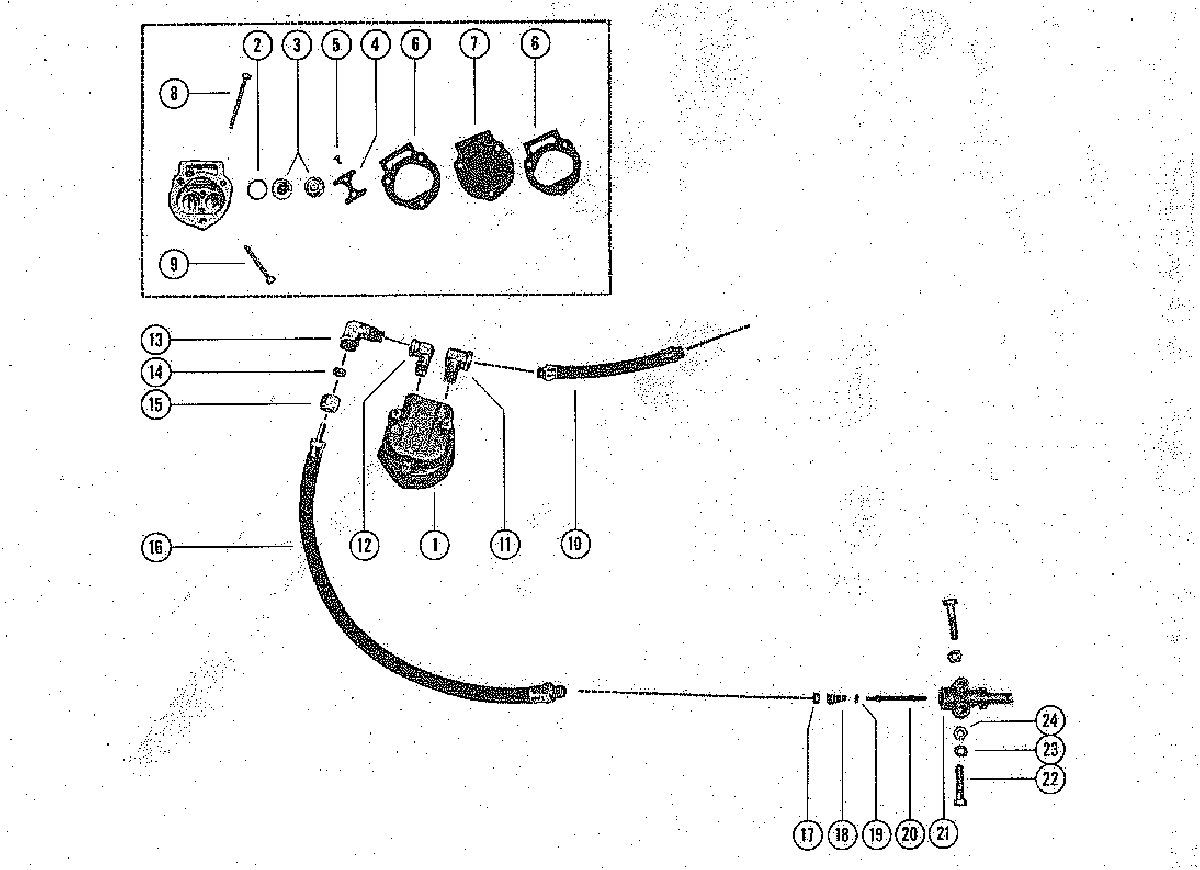

FUEL PUMP AND FUEL LINE ASSEMBLY для Mercury - 100, 150, 200, 250 1290910 THRU 1499331

  • №
    Артикул
    Название
  • 1
    23009A1 FUEL PUMP ASSEMBLY
    FUEL PUMP ASSEMBLY
  • 1
    30269A2 FUEL PUMP ASSEMBLY (SEE NOTE BELOW)
    FUEL PUMP ASSEMBLY (SEE NOTE BELOW)
  • 2
    27-23005 GASKET, CHECK VALVE TO PUMP HOUSING
    GASKET, CHECK VALVE TO PUMP HOUSING
  • 3
    21-8M0082362 VALVE, CHECK
    VALVE, CHECK
  • 4
    23004 RETAINER, CHECK VALVE
    RETAINER, CHECK VALVE
  • 5
    10-43725 SCREW, RETAINER TO HOUSING
    SCREW, RETAINER TO HOUSING
  • 6
    27-24863 GASKET, FUEL PUMP
    GASKET, FUEL PUMP
  • 7
    23014 DIAPHRAGM, FUEL PUMP
    DIAPHRAGM, FUEL PUMP
  • 8
    10-29246 SCREW, FUEL PUMP MOUNTING (1-5/8)
    SCREW, FUEL PUMP MOUNTING (1-5/8)
  • 9
    10-28712 SCREW, FUEL PUMP MOUNTING(1-5/8)
    SCREW, FUEL PUMP MOUNTING(1-5/8)
  • 10
    32-30040 FUEL LINE, FUEL PUMP TO CARBURETOR (5-1/4)
    FUEL LINE, FUEL PUMP TO CARBURETOR (5-1/4)
  • 11
    22-59351 FITTING,FUEL PUMP OUTLET
    FITTING,FUEL PUMP OUTLET
  • 11
    22-59351 FITTING, FUEL PUMP OUTLET
    FITTING, FUEL PUMP OUTLET
  • 12
    22-59351 FITTING, FUEL PUMP INLET
    FITTING, FUEL PUMP INLET
  • 13
    22-22995 FITTING, FUEL PUMP FITTING TO FUEL LINE
    FITTING, FUEL PUMP FITTING TO FUEL LINE
  • 14
    22-22946 SLEEVE, RUBBER
    SLEEVE, RUBBER
  • 15
    22-22948 NUT, FITTING
    NUT, FITTING
  • 16
    32-28474 FUEL LINE, ADAPTOR TO FUEL PUMP(13")
    FUEL LINE, ADAPTOR TO FUEL PUMP(13")
  • 16
    32-30301 FUEL LINE, ADAPTOR TO FUEL PUMP (11-5/8")
    FUEL LINE, ADAPTOR TO FUEL PUMP (11-5/8")
  • 17
    30188 CUP WASHER, ADAPTOR
    CUP WASHER, ADAPTOR
  • 18
    24-23067T SPRING, ADAPTOR STEM
    SPRING, ADAPTOR STEM
  • 19
    25-16524 "O" RING, ADAPTOR STEM
    "O" RING, ADAPTOR STEM
  • 20
    23069 STEM, CHECK UNIT ADAPTOR
    STEM, CHECK UNIT ADAPTOR
  • 21
    22833 ADAPTOR, CHECK UNIT
    ADAPTOR, CHECK UNIT
  • 22
    10-21091 SCREW, CHECK UNIT ADAPTOR TO STEERING BRACKET
    SCREW, CHECK UNIT ADAPTOR TO STEERING BRACKET
  • 23
    12-20028 WASHER, ADAPTOR FASTENING SCREW
    WASHER, ADAPTOR FASTENING SCREW
  • 24
    11-8267139 NUT, ADAPTOR FASTENING SCREW
    NUT, ADAPTOR FASTENING SCREW
