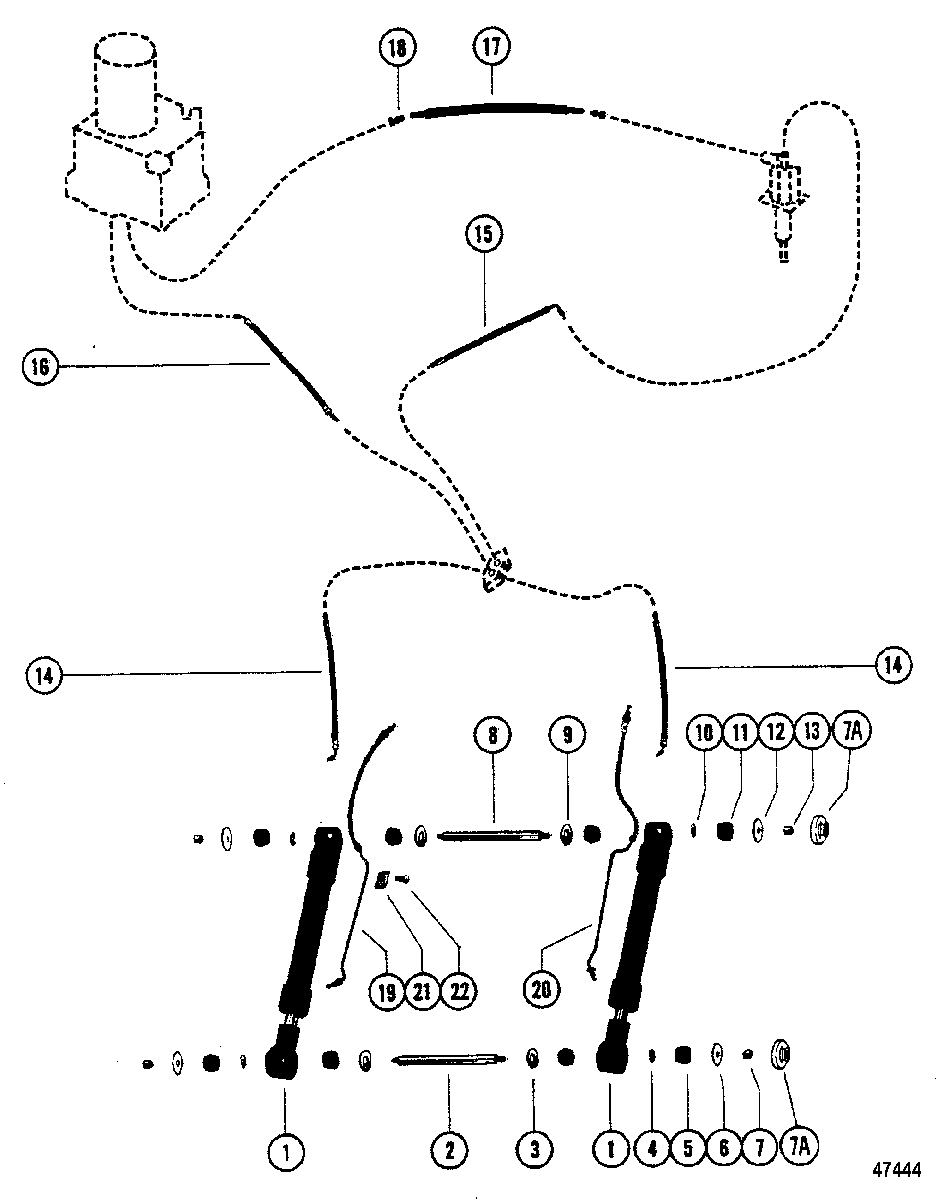

TRIM CYLINDERS AND HOSES(EXTERNAL LINES) для Mercruiser - TR/TRS 1977-1993 4794900 & Up

  • №
    Артикул
    Название
  • --
    87412A3 TRIM CYLINDER ASS'Y, COMPLETE (STBD.)
    SEE TRIM CYLINDER REPAIR KITS (EXTERNAL LINES) FOR REPAIR KIT BREAKDOWN
    TRIM CYLINDER ASS'Y, COMPLETE (STBD.)
    SEE TRIM CYLINDER REPAIR KITS (EXTERNAL LINES) FOR REPAIR KIT BREAKDOWN
  • 1
    87411A3 TRIM CYLINDER ASS'Y, COMPLETE (PORT)
    SEE TRIM CYLINDER REPAIR KITS (EXTERNAL LINES) FOR REPAIR KIT BREAKDOWN
    TRIM CYLINDER ASS'Y, COMPLETE (PORT)
    SEE TRIM CYLINDER REPAIR KITS (EXTERNAL LINES) FOR REPAIR KIT BREAKDOWN
  • 2
    17-14874A1 PIN, REAR (1/2-20 THREADS)
    PIN, REAR (1/2-20 THREADS)
  • 3
    12-89664 WASHER, (.920 x 1.750 x .060), ANCHOR PIN (1/2-20 THREADS)
    WASHER, (.920 x 1.750 x .060), ANCHOR PIN (1/2-20 THREADS)
  • 4
    24-49593 SPRING, ANCHOR PIN (1/2-20 THREADS)
    SPRING, ANCHOR PIN (1/2-20 THREADS)
  • 5
    23-90203 BUSHING, RUBBER (1/2-20 THREADS)
    BUSHING, RUBBER (1/2-20 THREADS)
  • 6
    12-89665 WASHER, Stainless Steel, ANCHOR PIN (1/2-20 THREADS)
    WASHER, Stainless Steel, ANCHOR PIN (1/2-20 THREADS)
  • 7
    11-35000 NUT, (.500-20) Stainless Steel, ANCHOR PIN (1/2-20 THREADS)
    NUT, (.500-20) Stainless Steel, ANCHOR PIN (1/2-20 THREADS)
  • 8
    17-14875A1 PIN, FRONT (1/2-20 THREADS)
    PIN, FRONT (1/2-20 THREADS)
  • 9
    12-89664 WASHER, (.920 x 1.750 x .060), ANCHOR PIN (1/2-20 THREADS)
    WASHER, (.920 x 1.750 x .060), ANCHOR PIN (1/2-20 THREADS)
  • 10
    24-49593 SPRING, ANCHOR PIN (1/2-20 THREADS)
    SPRING, ANCHOR PIN (1/2-20 THREADS)
  • 11
    23-90203 BUSHING, RUBBER (1/2-20 THREADS)
    BUSHING, RUBBER (1/2-20 THREADS)
  • 12
    12-89665 WASHER, Stainless Steel, ANCHOR PIN (1/2-20 THREADS)
    WASHER, Stainless Steel, ANCHOR PIN (1/2-20 THREADS)
  • 13
    11-35000 NUT, (.500-20) Stainless Steel, ANCHOR PIN (1/2-20 THREADS)
    NUT, (.500-20) Stainless Steel, ANCHOR PIN (1/2-20 THREADS)
  • 2
    17-14874A1 PIN ASSEMBLY, ANCHOR (REAR) (7/16-20 THREADS)
    PIN ASSEMBLY, ANCHOR (REAR) (7/16-20 THREADS)
  • 3
    12-89664 WASHER, REAR ANCHOR PIN (7/16-20 THREADS)
    WASHER, REAR ANCHOR PIN (7/16-20 THREADS)
  • 5
    23-90203 BUSHING, RUBBER (7/16-20 THREADS)
    BUSHING, RUBBER (7/16-20 THREADS)
  • 6
    12-44163 WASHER, (.450 x 1.75 x .12), REAR ANCHOR PIN (7/16-20 THREADS)
    WASHER, (.450 x 1.75 x .12), REAR ANCHOR PIN (7/16-20 THREADS)
  • 7
    11-859116 NUT, (.4375-20), REAR ANCHOR PIN (7/16-20 THREADS)
    NUT, (.4375-20), REAR ANCHOR PIN (7/16-20 THREADS)
  • 7A
    19-14842 CAP, REAR ANCHOR PIN (7/16-20 THREADS)
    CAP, REAR ANCHOR PIN (7/16-20 THREADS)
  • 8
    17-14875A1 PIN KIT, ANCHOR (FRONT) (7/16-20 THREADS)
    PIN KIT, ANCHOR (FRONT) (7/16-20 THREADS)
  • 9
    12-89664 WASHER, (.920 x 1.750 x .060), FRONT ANCHOR PIN (7/16-20 THREADS)
    WASHER, (.920 x 1.750 x .060), FRONT ANCHOR PIN (7/16-20 THREADS)
  • 11
    23-90203 BUSHING, RUBBER (7/16-20 THREADS)
    BUSHING, RUBBER (7/16-20 THREADS)
  • 12
    12-44163 WASHER, (.450 x 1.75 x .12), FRONT ANCHOR PIN (7/16-20 THREADS)
    WASHER, (.450 x 1.75 x .12), FRONT ANCHOR PIN (7/16-20 THREADS)
  • 13
    11-859116 NUT, (.4375-20), FRONT ANCHOR PIN (7/16-20 THREADS)
    NUT, (.4375-20), FRONT ANCHOR PIN (7/16-20 THREADS)
  • 7A
    19-14842 CAP, FRONT ANCHOR PIN 97/16-20 THREADS)
    CAP, FRONT ANCHOR PIN 97/16-20 THREADS)
  • 14
    32-86036Q HOSE, CONNECTOR TO TRIM CYLINDER (12-1/2")
    HOSE, CONNECTOR TO TRIM CYLINDER (12-1/2")
  • 15
    32-63158A1 HOSE, CONNECTOR TO VALVE (25")- PRESTOLITE PUMP
    HOSE, CONNECTOR TO VALVE (25")- PRESTOLITE PUMP
  • 16
    32-63157A1 HOSE, CONNECTOR PUMP (50-1/2") -PRESTOLITE PUMP
    HOSE, CONNECTOR PUMP (50-1/2") -PRESTOLITE PUMP
  • 15
    32-97010A1 HOSE, CONNECTOR TO VALVE (47-1/2") -OILDYNE PUMP
    HOSE, CONNECTOR TO VALVE (47-1/2") -OILDYNE PUMP
  • 16
    32-97009A1 HOSE, CONNECTOR TO PUMP (46")- OILDYNE PUMP
    HOSE, CONNECTOR TO PUMP (46")- OILDYNE PUMP
  • 17
    32-8M0111655 TUBING, PUMP TO REVERSE LOCK VALVE (40")
    TUBING, PUMP TO REVERSE LOCK VALVE (40")
  • 18
    22-49718 NUT, COMPRESSION - HYDRAULIC TUBING
    NUT, COMPRESSION - HYDRAULIC TUBING
  • 19
    32-87558 HOSE, PORT CYLINDER
    HOSE, PORT CYLINDER
  • 20
    32-87559 HOSE, STARBOARD CYLINDER
    HOSE, STARBOARD CYLINDER
  • 21
    85060 PLATE, CLAMPING - HYDRAULIC HOSE
    PLATE, CLAMPING - HYDRAULIC HOSE
  • 22
    10-85486 SCREW, (.250-20 x .380) Stainless Steel, CLAMPING PLATE
    SCREW, (.250-20 x .380) Stainless Steel, CLAMPING PLATE
