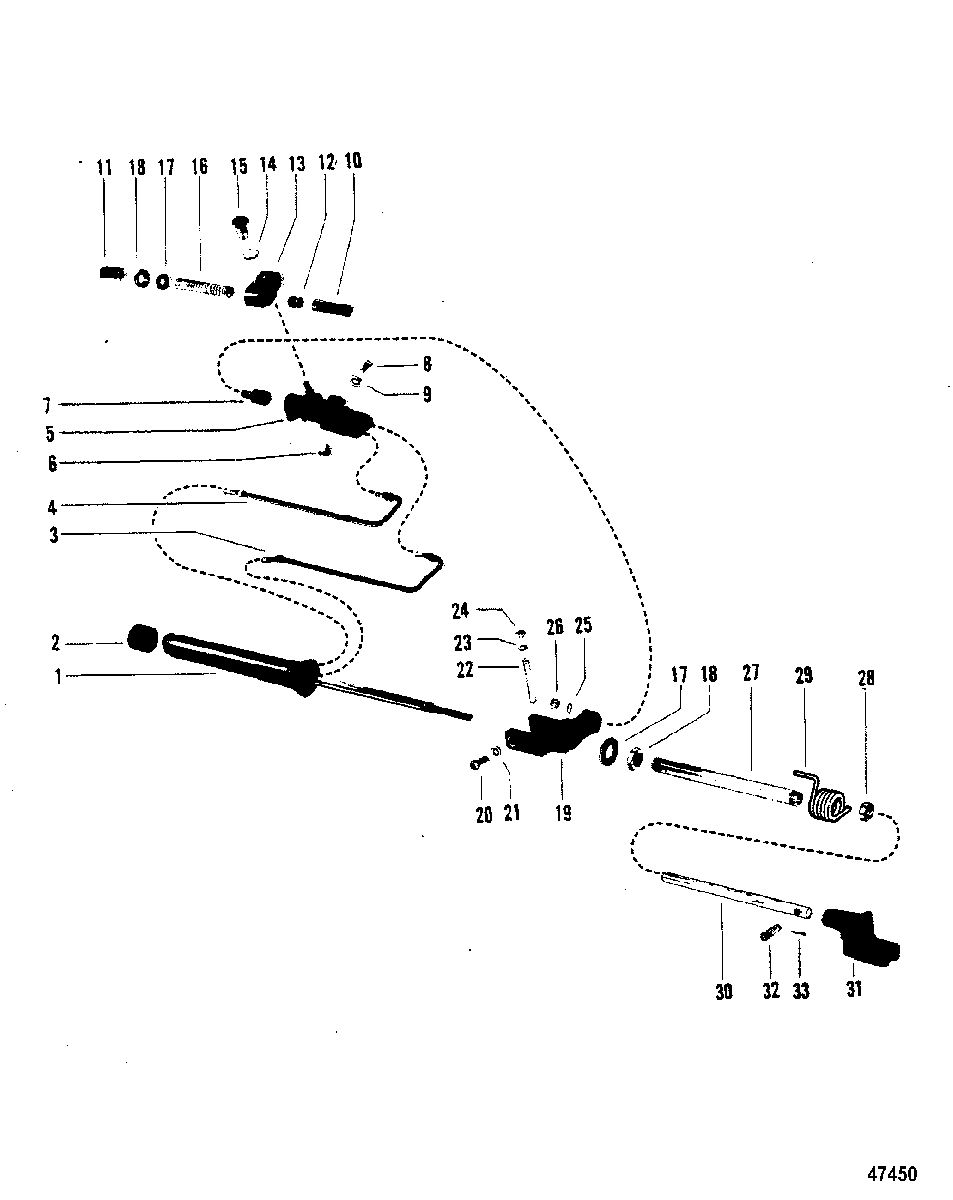

POWER STEERING COMPONENTS для Mercruiser - TR/TRS 1977-1993 4794900 & Up

  • №
    Артикул
    Название
  • 1
    57969A12 CYLINDER ASSEMBLY, Booster, BOOSTER - POWER STEERING
    CYLINDER ASSEMBLY, Booster, BOOSTER - POWER STEERING
  • 2
    26059 CAP, RUBBER - BOOSTER CYLINDER
    CAP, RUBBER - BOOSTER CYLINDER
  • 3
    32-57633 TUBE, EXTENDING - POWER STEERING
    TUBE, EXTENDING - POWER STEERING
  • 4
    32-57634 TUBE, RETRACTING - POWER STEERING
    TUBE, RETRACTING - POWER STEERING
  • 5
    816458A1 VALVE ASSEMBLY, POWER STEERING
    VALVE ASSEMBLY, POWER STEERING
  • 6
    22-67305 FITTING, Grease, GREASE - POWER VALVE
    FITTING, Grease, GREASE - POWER VALVE
  • 7
    16-55109T STUD, ADAPTER - POWER STEERING VALVE
    STUD, ADAPTER - POWER STEERING VALVE
  • 8
    10-37612 SCREW, (.375-16 x 1.250), CLAMPING (1-1/4")
    SCREW, (.375-16 x 1.250), CLAMPING (1-1/4")
  • 9
    13-35048 LOCKWASHER, (.375), CLAMPING SCREW
    LOCKWASHER, (.375), CLAMPING SCREW
  • 10
    23-60652 SLEEVE, ADJUSTING - CABLE GUIDE TUBE
    SLEEVE, ADJUSTING - CABLE GUIDE TUBE
  • 11
    64414 GUIDE, CABLE GUIDE TUBE
    GUIDE, CABLE GUIDE TUBE
  • 12
    23-60773 SLEEVE, CABLE GUIDE TUBE
    SLEEVE, CABLE GUIDE TUBE
  • 13
    55110T ADAPTOR, CABLE GUIDE TUBE (DUAL)
    ADAPTOR, CABLE GUIDE TUBE (DUAL)
  • 14
    13-20897 LOCKWASHER, DUAL ADAPTER NUT
    LOCKWASHER, DUAL ADAPTER NUT
  • 15
    11-55111 NUT, DUAL ADAPTER TO POWE STEERING VALVE
    NUT, DUAL ADAPTER TO POWE STEERING VALVE
  • 16
    32-55112 TUBE, CABLE GUIDE
    TUBE, CABLE GUIDE
  • 17
    12-37985 WASHER, CABLE GUIDE TUBE AND MOUNTING TUBE
    WASHER, CABLE GUIDE TUBE AND MOUNTING TUBE
  • 18
    11-8M0041651 NUT, (.875-14), CABLE GUIDE TUBE AND MOUNTING TUBE
    NUT, (.875-14), CABLE GUIDE TUBE AND MOUNTING TUBE
  • 19
    57286 BRACKET, MOUNTING - TRANSOM PLATE
    BRACKET, MOUNTING - TRANSOM PLATE
  • 20
    10-31832 BOLT, (.500-20 x 1.00), MOUNTING BRACKET TO TRANSOM PLATE (1")
    BOLT, (.500-20 x 1.00), MOUNTING BRACKET TO TRANSOM PLATE (1")
  • 21
    13-31848 LOCKWASHER, (.500), MOUNTING BRACKET SCREW
    LOCKWASHER, (.500), MOUNTING BRACKET SCREW
  • 22
    10-57968 SCREW, (.375-24 x 3.00), ADJUSTING - MOUNTING BRACKET (3")
    SCREW, (.375-24 x 3.00), ADJUSTING - MOUNTING BRACKET (3")
  • 23
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 24
    11-46335 NUT, ADJUSTING SCREW
    NUT, ADJUSTING SCREW
  • 25
    12-20959 WASHER, VALVE ADAPTER STUD
    WASHER, VALVE ADAPTER STUD
  • 26
    11-898832 NUT, (.500-20), VALVE ADAPTER STUD
    NUT, (.500-20), VALVE ADAPTER STUD
  • 27
    57971 TUBE, MOUNTING - BOOSTER ROD EXTENSION
    TUBE, MOUNTING - BOOSTER ROD EXTENSION
  • 28
    11-55983 NUT, (.875-14), JAM - MOUNTING TUBE
    NUT, (.875-14), JAM - MOUNTING TUBE
  • 29
    24-78498 SPRING, TORSION - MOUNTING TUBE
    SPRING, TORSION - MOUNTING TUBE
  • 30
    57970 ROD, Extender, CYLINDER BOOSTER ROD
    ROD, Extender, CYLINDER BOOSTER ROD
  • 31
    87854T ADAPTOR, Cable End, ROD END
    ADAPTOR, Cable End, ROD END
  • 32
    17-52798 PIN, Clevis, CLEVIS - STEERING CABLE AND CLEVIS ATTACHING
    PIN, Clevis, CLEVIS - STEERING CABLE AND CLEVIS ATTACHING
  • 33
    18-46950 COTTER PIN, CLEVIS PIN RETAINING
    COTTER PIN, CLEVIS PIN RETAINING
