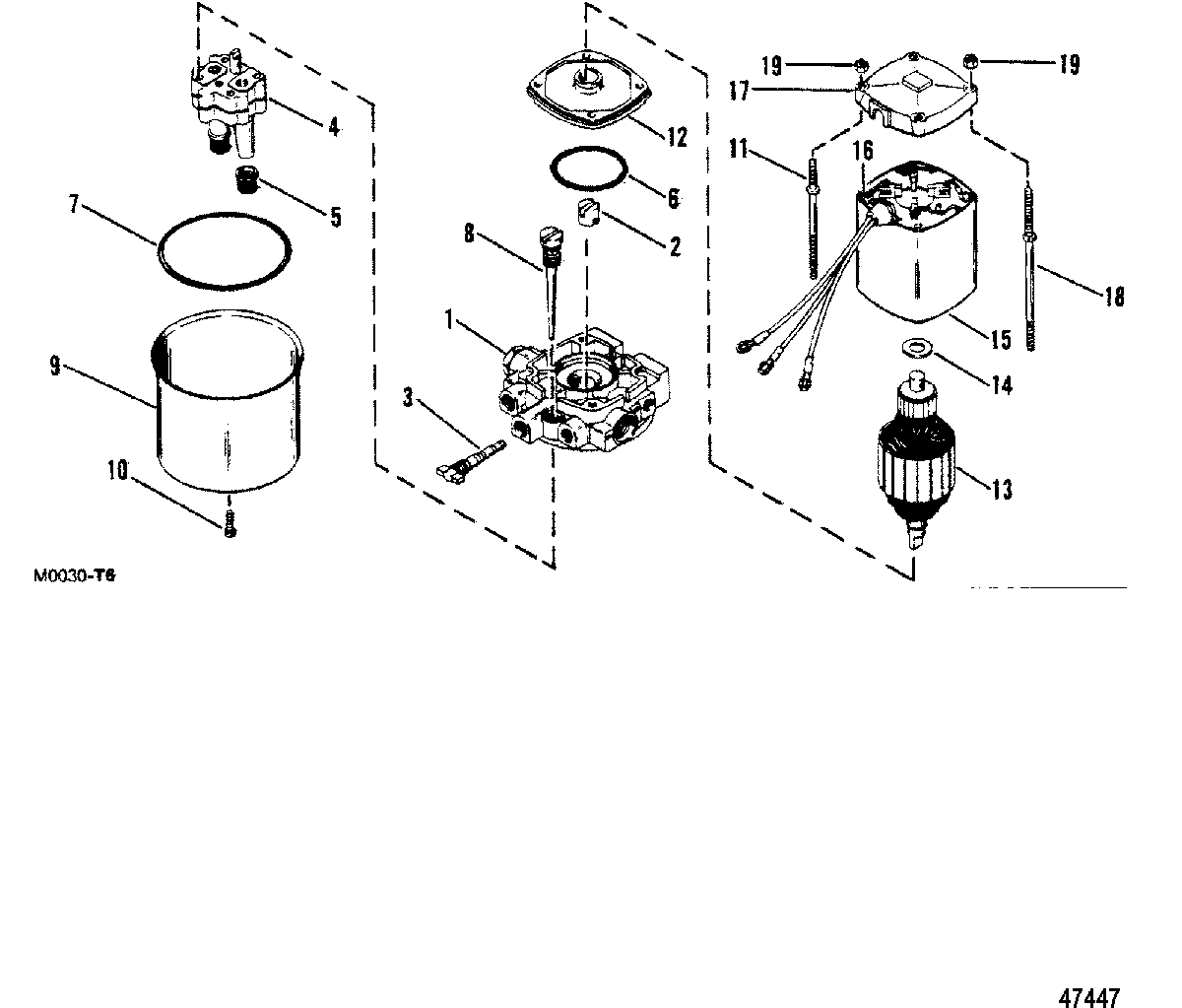

HYDRAULIC PUMP(OILDYNE PUMP METAL RESERVOIR) для Mercruiser - TR/TRS 1977-1993 4794900 & Up

  • №
    Артикул
    Название
  • --
    865380A13 PUMP ASSEMBLY, Hydraulic
    PUMP ASSEMBLY, Hydraulic
  • 1
    41217T ADAPTER
    ADAPTER
  • 2
    803852 COUPLING
    COUPLING
  • 3
    99073A2 MANUAL RELEASE (INCLUDES 2 "O" RINGS)
    MANUAL RELEASE (INCLUDES 2 "O" RINGS)
  • 3
    99073A2 MANUAL RELEASE (INCLUDES 3 "O" RINGS)
    MANUAL RELEASE (INCLUDES 3 "O" RINGS)
  • 4
    41216 PUMP (INCLUDES SCREWS)
    PUMP (INCLUDES SCREWS)
  • 5
    35-89496 FILTER
    FILTER
  • 6
    25-89498 O-RING, MOTOR END
    O-RING, MOTOR END
  • 7
    25-89497 O-RING, RESERVOIR END
    O-RING, RESERVOIR END
  • 8
    41218 DIPSTICK
    DIPSTICK
  • 9
    41219T RESERVOIR
    RESERVOIR
  • 10
    10-41220 SCREW, RESERVOIR (INCLUDES "O" RING)
    SCREW, RESERVOIR (INCLUDES "O" RING)
  • 11
    16-41222 THRU STUD (SHORT)
    THRU STUD (SHORT)
  • 11
    16-41221 THRU STUD (LONG)
    THRU STUD (LONG)
  • --
    17649A02 MOTOR, HYDRAULIC PUMP
    MOTOR, HYDRAULIC PUMP
  • 12
    89484 END FRAME, DRIVE END
    END FRAME, DRIVE END
  • 13
    41214 ARMATURE
    ARMATURE
  • 14
    12-89482 WASHER, THRUST - ARMATURE
    WASHER, THRUST - ARMATURE
  • 15
    41215 FIELD FRAME
    FIELD FRAME
  • 16
    17649A02 BRUSH CARD
    BRUSH CARD
  • 17
    90-89448 END FRAME, COMMUTATOR END
    END FRAME, COMMUTATOR END
  • 18
    10-41212 THRU BOLT, MOTOR (SHORT)
    THRU BOLT, MOTOR (SHORT)
  • 18
    10-41213 THRU BOLT, MOTOR (LONG)
    THRU BOLT, MOTOR (LONG)
  • 19
    11-89481 NUT, THRU BOLT AND STUD
    NUT, THRU BOLT AND STUD
  • 20
    812498A1 VALVE KIT, Up Pressure Relief (REPAIR KIT)
    VALVE KIT, Up Pressure Relief (REPAIR KIT)
  • 21
    812499A1 VALVE KIT, Down Pressure Relief (REPAIR KIT)
    VALVE KIT, Down Pressure Relief (REPAIR KIT)
  • 22
    95353A1 VALVE KIT, Relief (REPAIR KIT)
    VALVE KIT, Relief (REPAIR KIT)
  • 23
    99073A2 REPAIR KIT, Overhaul
    REPAIR KIT, Overhaul
  • 24
    19-11005A1 PLUG ASSEMBLY, Valve (REPAIR KIT)
    PLUG ASSEMBLY, Valve (REPAIR KIT)
