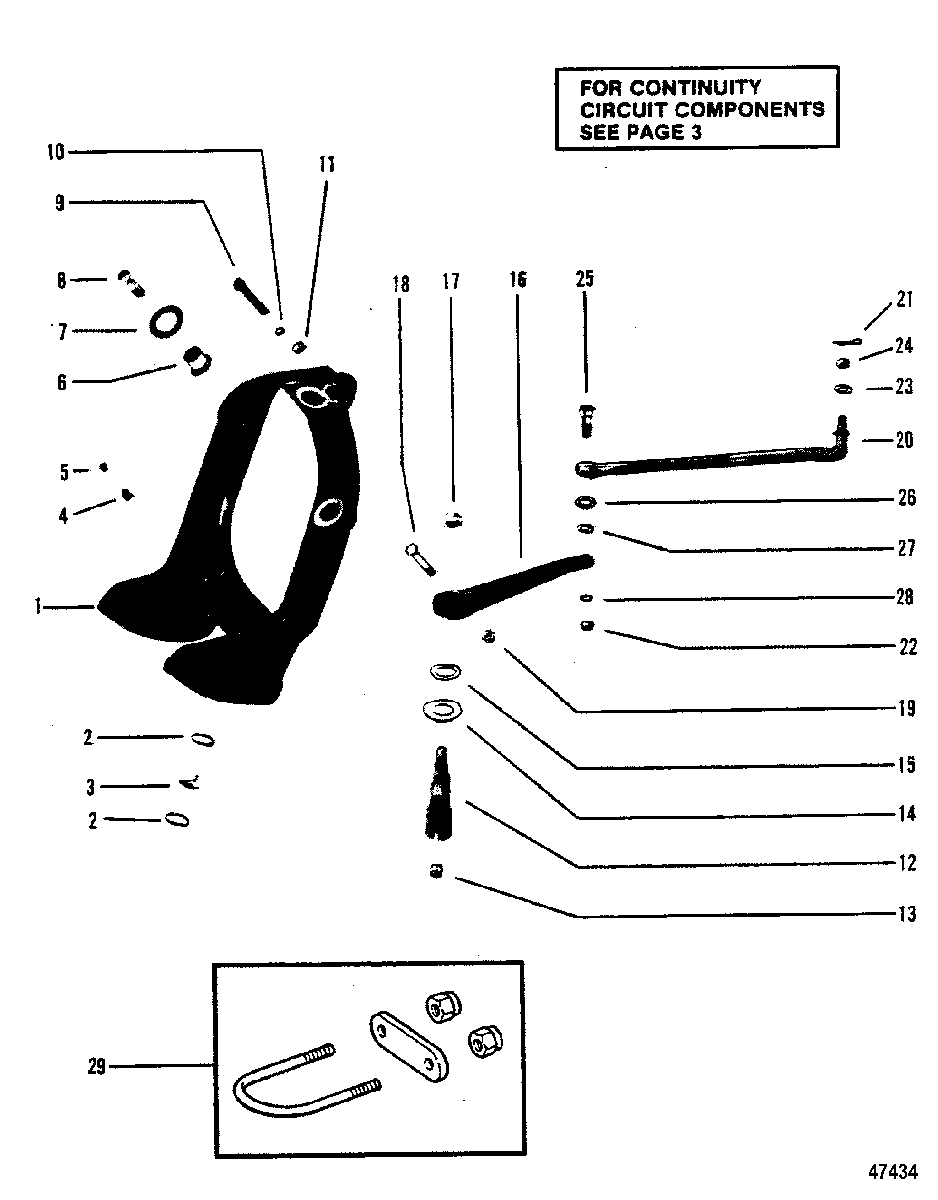

GIMBAL RING AND STEERING LEVER для Mercruiser - TR/TRS 1977-1993 4794900 & Up

№

Артикул

Название
1

SEENOTE1 GIMBAL RING ASSEMBLY (SPLINED)

GIMBAL RING ASSEMBLY (SPLINED)
1

SEENOTE2 GIMBAL RING ASSEMBLY (SQUARE WITH THRU BOLTS)

GIMBAL RING ASSEMBLY (SQUARE WITH THRU BOLTS)
1

8M0057395 GIMBAL RING ASSEMBLY (SQUARE WITH "U"-BOLTS)

GIMBAL RING ASSEMBLY (SQUARE WITH "U"-BOLTS)
2

26-54927 SEAL, Oil, GIMBAL RING

SEAL, Oil, GIMBAL RING
3

31-54928 BEARING, Roller, GIMBAL

BEARING, Roller, GIMBAL
4

22-69059 FITTING (1/8 - 27)

FITTING (1/8 - 27)
5

19-77633Q LUBRICAP, GREASE FITTING

LUBRICAP, GREASE FITTING
6

23-54002 BUSHING, GIMBAL RING

BUSHING, GIMBAL RING
7

12-54019 WASHER, ANTI-GALLING - BELL HOUSING

WASHER, ANTI-GALLING - BELL HOUSING
8

17-59812 PIN, GIMBAL RING TO HOUSING

PIN, GIMBAL RING TO HOUSING
9

10-45833 SCREW, (.312-18 x 2.500), UPPER SWIVEL SHAFT RETAINING (2-1/2") (SPLINED)

SCREW, (.312-18 x 2.500), UPPER SWIVEL SHAFT RETAINING (2-1/2") (SPLINED)
10

12-20546 WASHER, (.330 x .500 x .060), UPPER SWIVEL SHAFT RETAINING SCREW (SPLINED)

WASHER, (.330 x .500 x .060), UPPER SWIVEL SHAFT RETAINING SCREW (SPLINED)
9

10-68299 SCREW, (.375-16 x 3.00) Stainless Steel, UPPER SWIVEL SHAFT RETAINING (3") (SQUARE)

SCREW, (.375-16 x 3.00) Stainless Steel, UPPER SWIVEL SHAFT RETAINING (3") (SQUARE)
10

12-34931 WASHER, (.406 x .734 x .063) Stainless Steel, UPPER SWIVEL SHAFT RETAINING SCREW (SQUARE)

WASHER, (.406 x .734 x .063) Stainless Steel, UPPER SWIVEL SHAFT RETAINING SCREW (SQUARE)
11

11-82671112 NUT, UPPER SWIVEL SHAFT RETAINING SCREW (SQUARE)

NUT, UPPER SWIVEL SHAFT RETAINING SCREW (SQUARE)
12

SEENOTE1 GIMBAL RING ASSEMBLY, UPPER SWIVEL (SPLINED/SPLINED)

GIMBAL RING ASSEMBLY, UPPER SWIVEL (SPLINED/SPLINED)
13

22-32561 PLUG, Pipe - Allen Head (.250-18), UPPER SWIVEL SHAFT (SPLINED/SPLINED)

PLUG, Pipe - Allen Head (.250-18), UPPER SWIVEL SHAFT (SPLINED/SPLINED)
12

SEENOTE3 SHAFT, UPPER SWIVEL (SQUARE/SPLINED)

SHAFT, UPPER SWIVEL (SQUARE/SPLINED)
13

19-88559 PLUG, UPPER SWIVEL SHAFT ( SQUARE/SPLINED)

PLUG, UPPER SWIVEL SHAFT ( SQUARE/SPLINED)
12

44448T SHAFT, UPPER SWIVEL (SQUARE/SQUARE)

SHAFT, UPPER SWIVEL (SQUARE/SQUARE)
13

19-88559 PLUG, UPPER SWIVEL SHAFT (SQUARE/SQUARE)

PLUG, UPPER SWIVEL SHAFT (SQUARE/SQUARE)
14

12-54026 WASHER, UPPER SWIVEL SHAFT (2" O.D.)

WASHER, UPPER SWIVEL SHAFT (2" O.D.)
15

12-54027 WASHER, UPPER SWIVEL SHAFT (1-5/8" O.D.)

WASHER, UPPER SWIVEL SHAFT (1-5/8" O.D.)
16

SEENOTE3 SHAFT, STEERING (SPLINED)

SHAFT, STEERING (SPLINED)
16

44447T LEVER, STEERING (SQUARE)

LEVER, STEERING (SQUARE)
17

11-8M2014641 NUT, (.750-16), STEERING LEVER TO UPPER SWIVEL SHAFT

NUT, (.750-16), STEERING LEVER TO UPPER SWIVEL SHAFT
18

10-68479 SCREW, (.437-20 x 2.250), STEERING LEVER (2-1/4")

SCREW, (.437-20 x 2.250), STEERING LEVER (2-1/4")
19

11-8M2008293 NUT, (.437-20), STEERING LEVER SCREW

NUT, (.437-20), STEERING LEVER SCREW
20

67538A1 LINK ROD ASSEMBLY, STEERING

LINK ROD ASSEMBLY, STEERING
21

18-45882 COTTER PIN, RETAINING

COTTER PIN, RETAINING
22

11-55438 NUT, (.375-24), LINK ROD BOLT

NUT, (.375-24), LINK ROD BOLT
23

12-20086 WASHER, (.390 x .620 x .060), LINK ROD

WASHER, (.390 x .620 x .060), LINK ROD
24

11-55438 NUT, (.375-24), LINK ROD

NUT, (.375-24), LINK ROD
25

10-66389 SCREW, (.375-24 x .875), LINK ROD TO STEERING LEVER

SCREW, (.375-24 x .875), LINK ROD TO STEERING LEVER
26

12-34966 WASHER, NYLON - LINK ROD BOLT

WASHER, NYLON - LINK ROD BOLT
27

13-54667 WASHER, WAVE - LINK ROD BOLT

WASHER, WAVE - LINK ROD BOLT
28

12-20086 WASHER, (.390 x .620 x .060), LINK ROD BOLT

WASHER, (.390 x .620 x .060), LINK ROD BOLT
29

10-41455A1 U BOLT KIT

U BOLT KIT
-

42385A7 GIMBAL RING KIT

GIMBAL RING KIT
