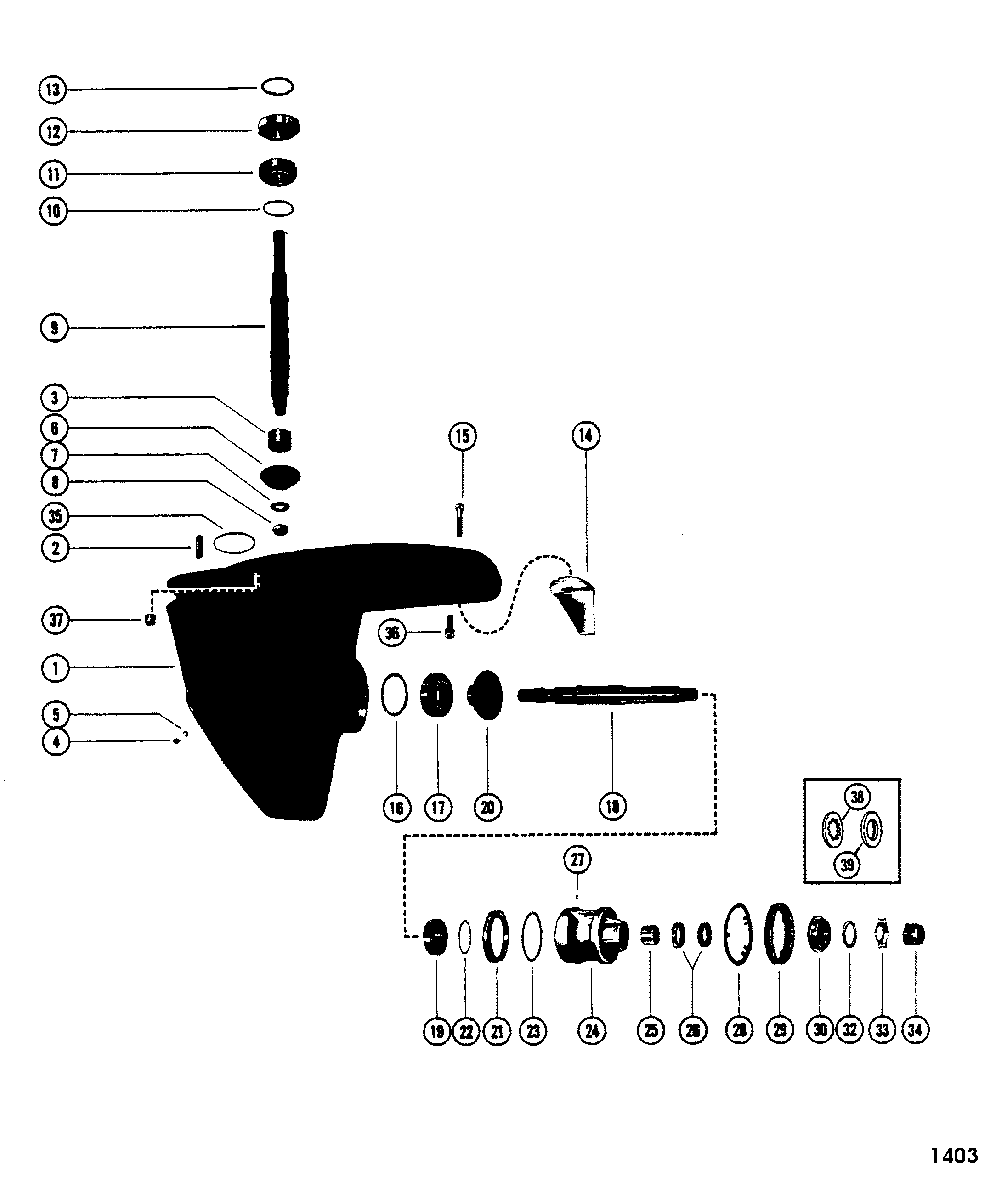

GEAR HOUSING(TRS) для Mercruiser - TR/TRS 1977-1993 4794900 & Up

  • №
    Артикул
    Название
  • --
    1646-5321A14 GEAR HOUSING ASSEMBLY, COMPLETE (LEFT HAND ROTATION)
    GEAR HOUSING ASSEMBLY, COMPLETE (LEFT HAND ROTATION)
  • --
    1646-5321A13 GEAR HOUSING ASSEMBLY, COMPLETE (RIGHT HAND RATATION)
    GEAR HOUSING ASSEMBLY, COMPLETE (RIGHT HAND RATATION)
  • 1
    1646-5321A6 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 2
    16-8M0041668 STUD, (.437-14/.437-20 x 1.875), GEAR HOUSING (1-7/8")
    STUD, (.437-14/.437-20 x 1.875), GEAR HOUSING (1-7/8")
  • 3
    31-68290A1 BEARING, DRIVE SHAFT
    BEARING, DRIVE SHAFT
  • 4
    10-79953Q04 SCREW, (.375-16 x .250), VENT - GEAR HOUSING
    SCREW, (.375-16 x .250), VENT - GEAR HOUSING
  • 5
    12-191833 WASHER, VENT SCREW
    WASHER, VENT SCREW
  • 6
    43-70934T1 GEAR (16 TEETH)
    GEAR (16 TEETH)
  • 7
    12-54048 WASHER
    WASHER
  • 8
    11-55819 NUT, PINION GEAR TO DRIVE SHAFT
    NUT, PINION GEAR TO DRIVE SHAFT
  • 9
    45-66666 DRIVESHAFT
    DRIVESHAFT
  • 10
    15-66672A1 SHIM ASSEMBLY, ROLLER BEARING TO GEAR HOUSING
    SHIM ASSEMBLY, ROLLER BEARING TO GEAR HOUSING
  • 11
    31-66670A1 BEARING ASSEMBLY, Roller, DRIVE SHAFT
    BEARING ASSEMBLY, Roller, DRIVE SHAFT
  • 12
    31-68266A1 BEARING ASSEMBLY, Tapered Roller, DRIVE SHAFT
    BEARING ASSEMBLY, Tapered Roller, DRIVE SHAFT
  • 13
    25-54030 O-RING, (2.987 x .103), GEAR HOUSING
    O-RING, (2.987 x .103), GEAR HOUSING
  • 14
    97-31640Q4 TRIM TAB ASSEMBLY, GEAR HOUSING
    TRIM TAB ASSEMBLY, GEAR HOUSING
  • 15
    10-41350 SCREW, (.437-14 x 2.50) Stainless Steel, TRIM TAB TO GEAR HOUSING (2-1/2")
    SCREW, (.437-14 x 2.50) Stainless Steel, TRIM TAB TO GEAR HOUSING (2-1/2")
  • 16
    15-47397A1 SHIM SET, ROLLER BEARING (LEFT HAND ROTATION)
    SHIM SET, ROLLER BEARING (LEFT HAND ROTATION)
  • 17
    31-35928T1 BEARING ASSEMBLY, Tapered Roller (LEFT HAND ROTATION)
    BEARING ASSEMBLY, Tapered Roller (LEFT HAND ROTATION)
  • 18
    44-92327T1 PROPELLER SHAFT (LEFT HAND ROTATION)
    PROPELLER SHAFT (LEFT HAND ROTATION)
  • 19
    31-8M0103470 BEARING ASSEMBLY, Tapered Roller (LEFT HAND ROTATION)
    BEARING ASSEMBLY, Tapered Roller (LEFT HAND ROTATION)
  • 16
    15-36178A02 SHIM ASSEMBLY, ROLLER BEARING (RIGHT HAND ROTATION)
    SHIM ASSEMBLY, ROLLER BEARING (RIGHT HAND ROTATION)
  • 17
    31-68266A1 BEARING ASSEMBLY, Tapered Roller (RIGHT HAND ROTATION)
    BEARING ASSEMBLY, Tapered Roller (RIGHT HAND ROTATION)
  • 18
    44-92328 PROPELLER SHAFT (RIGHT HAND ROTATION)
    PROPELLER SHAFT (RIGHT HAND ROTATION)
  • 19
    31-35928T1 BEARING ASSEMBLY, Tapered Roller (RIGHT HAND ROTATION)
    BEARING ASSEMBLY, Tapered Roller (RIGHT HAND ROTATION)
  • 20
    43-70933 GEAR (18 TEETH)
    GEAR (18 TEETH)
  • 21
    12-66667 THRUST RING
    THRUST RING
  • 22
    67440T LOAD RING, THRUST RING
    LOAD RING, THRUST RING
  • 23
    25-31534 O-RING, BEARING CARRIER
    O-RING, BEARING CARRIER
  • 24
    66663A1 CARRIER ASSEMBLY, Bearing
    CARRIER ASSEMBLY, Bearing
  • 25
    31-30956T BEARING, Needle, BEARING CARRIER
    BEARING, Needle, BEARING CARRIER
  • 26
    26-76868 SEAL, BEARING CARRIER
    SEAL, BEARING CARRIER
  • 27
    28-30281 KEY, LOCATING - BEARING CARRIER
    KEY, LOCATING - BEARING CARRIER
  • 28
    14-79447 TAB WASHER, GEAR HOUSING COVER
    TAB WASHER, GEAR HOUSING COVER
  • 29
    8M2000347 RETAINER, GEAR HOUSING
    RETAINER, GEAR HOUSING
  • 30
    92950 THRUST HUB
    (USE WITH RUBBER HUB CLEAVER PROPELLERS)
    THRUST HUB
    (USE WITH RUBBER HUB CLEAVER PROPELLERS)
  • 32
    12-31211Q03 WASHER, Splined, BEARING HUB
    (USE WITH RUBBER HUB CLEAVER PROPELLERS)
    WASHER, Splined, BEARING HUB
    (USE WITH RUBBER HUB CLEAVER PROPELLERS)
  • 33
    14-816629Q TAB WASHER, PROPELLER NUT
    USE WITH RUBBER HUB CLEAVER PROPELLERS
    TAB WASHER, PROPELLER NUT
    USE WITH RUBBER HUB CLEAVER PROPELLERS
  • 34
    11-52707Q1 PROP NUT KIT, (.750-16), PROPELLER
    PROP NUT KIT, (.750-16), PROPELLER
  • 35
    25-54029 O-RING, (2.800 x .103), GEAR HOUSING
    O-RING, (2.800 x .103), GEAR HOUSING
  • 36
    10-47557 SCREW, (.500-13 x 1.500), GEAR HOUSING (1-1/2")
    SCREW, (.500-13 x 1.500), GEAR HOUSING (1-1/2")
  • 37
    11-34933 NUT, (.437-20) Stainless Steel, DRIVE SHAFT HOUSING STUD
    NUT, (.437-20) Stainless Steel, DRIVE SHAFT HOUSING STUD
  • 38
    12-39701 WASHER, SPLINED
    USE WITH SOLID HUB CLEAVER PROPELLERS
    WASHER, SPLINED
    USE WITH SOLID HUB CLEAVER PROPELLERS
  • 39
    12-39698 WASHER, FLAT
    USE WITH SOLID HUB CLEAVER PROPELLERS
    WASHER, FLAT
    USE WITH SOLID HUB CLEAVER PROPELLERS
