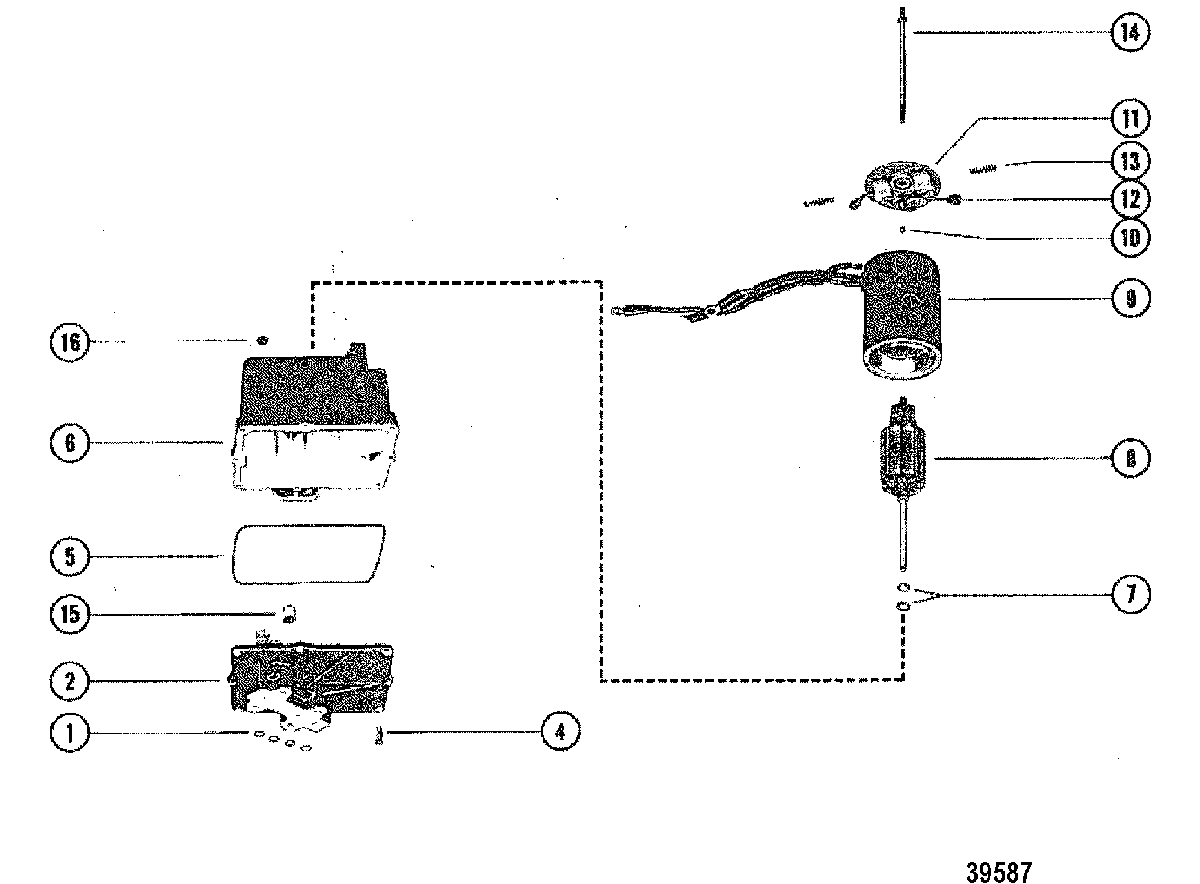

HYDRAULIC PUMP(PLASTIC RESERVOIR) для Mercruiser - TR/TRS 1977-1993 4794900 & Up

  • №
    Артикул
    Название
  • --
    93247A7 PUMP ASSEMBLY, Hydraulic, COMPLETE
    PUMP ASSEMBLY, Hydraulic, COMPLETE
  • --
    93247A7 PUMP ASSEMBLY, Hydraulic, COMPLETE
    PUMP ASSEMBLY, Hydraulic, COMPLETE
  • 1
    25-48171 O-RING, (.364. x .070), HYDRAULIC PUMP
    O-RING, (.364. x .070), HYDRAULIC PUMP
  • 2
    392-7734 VALVE BODY AND GEAR ASSEMBLY
    VALVE BODY AND GEAR ASSEMBLY
  • 2
    93247A7 VALVE BODY AND GEAR ASSEMBLY
    VALVE BODY AND GEAR ASSEMBLY
  • 4
    10-69570 SCREW, (#10-16 x .750), VALVE BODY TO RESERVOIR
    SCREW, (#10-16 x .750), VALVE BODY TO RESERVOIR
  • 5
    392-7735 SEAL, RESERVOIR TO VALVE BODY AND GEAR
    SEAL, RESERVOIR TO VALVE BODY AND GEAR
  • 6
    392-7731 RESEROVIR ASSEMBLY (PLASTIC)
    RESEROVIR ASSEMBLY (PLASTIC)
  • 7
    392-7732 WASHER, THRUST - ARMATURE
    WASHER, THRUST - ARMATURE
  • 8
    392-7729 ARMATURE, FIELD AND FRAME
    ARMATURE, FIELD AND FRAME
  • 9
    392-2942 FIELD AND FRAME ASSEMBLY
    FIELD AND FRAME ASSEMBLY
  • 9
    392-8261 FIELD AND FRAME ASSEMBLY
    FIELD AND FRAME ASSEMBLY
  • 10
    392-7730 BALL, COMMUTATOR END PLATE
    BALL, COMMUTATOR END PLATE
  • 11
    392-2940 PLATE ASSEMBLY, COMMUTATOR END
    PLATE ASSEMBLY, COMMUTATOR END
  • 11
    392-8262 PLATE ASSEMBLY, COMMUTATOR END
    PLATE ASSEMBLY, COMMUTATOR END
  • 12
    392-8989 BRUSH SET, COMMUTATOR END PLATE
    BRUSH SET, COMMUTATOR END PLATE
  • 13
    392-2529 SPRING SET, BRUSH TENSION
    SPRING SET, BRUSH TENSION
  • 14
    392-7733 BOLT SET, THRU - PLATE AND FRAME
    BOLT SET, THRU - PLATE AND FRAME
  • 15
    392-7727 COUPLER AND SHAFT
    COUPLER AND SHAFT
  • 16
    392-7728 FILL PLUG, RESERVOIR
    FILL PLUG, RESERVOIR
