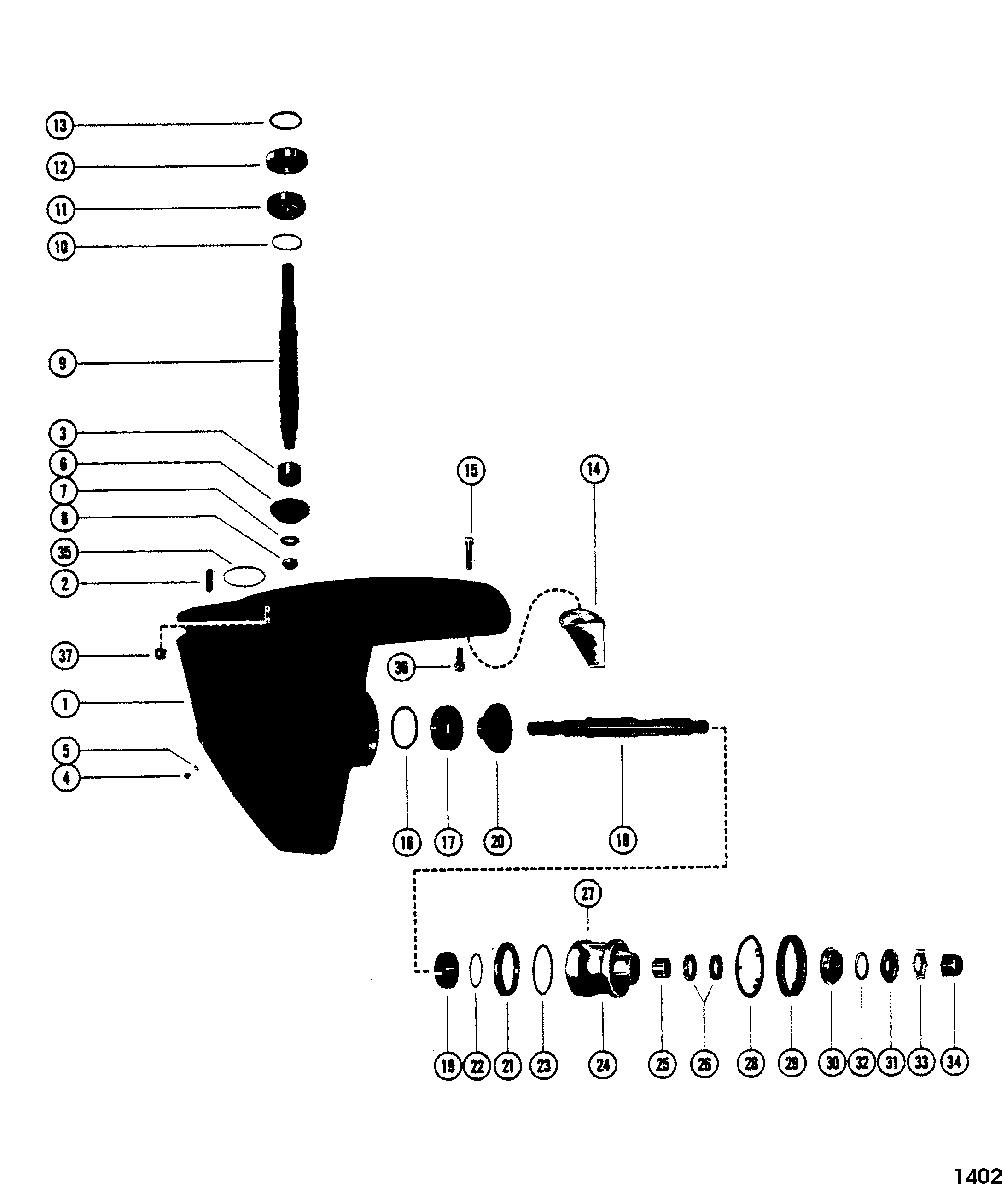

GEAR HOUSING(TR) для Mercruiser - TR/TRS 1977-1993 4794900 & Up

№

Артикул

Название
--

1641-4855A13 GEAR HOUSING ASSEMBLY, COMPLETE (LEFT HAND ROTATION)

GEAR HOUSING ASSEMBLY, COMPLETE (LEFT HAND ROTATION)
--

1641-4855A14 GEAR HOUSING ASSEMBLY, COMPLETE (RIGHT HAND ROTATION)

GEAR HOUSING ASSEMBLY, COMPLETE (RIGHT HAND ROTATION)
1

1641-4855A6 GEAR HOUSING ASSEMBLY

GEAR HOUSING ASSEMBLY
2

16-8M0041668 STUD, (.437-14/.437-20 x 1.875), GEAR HOUSING (1-7/8")

STUD, (.437-14/.437-20 x 1.875), GEAR HOUSING (1-7/8")
3

31-35246 BEARING, Roller, DRIVE SHAFT

BEARING, Roller, DRIVE SHAFT
4

10-79953Q04 SCREW, (.375-16 x .250), VENT - GEAR HOUSING

SCREW, (.375-16 x .250), VENT - GEAR HOUSING
5

12-191833 WASHER, SEAL - VENT SCREW

WASHER, SEAL - VENT SCREW
6

43-62880T1 GEAR, Pinion (16 TEETH)

GEAR, Pinion (16 TEETH)
7

12-54048 WASHER, PINION GEAR TO DRIVE SHAFT

WASHER, PINION GEAR TO DRIVE SHAFT
8

11-55819 NUT, PINION GEAR TO DRIVE SHAFT

NUT, PINION GEAR TO DRIVE SHAFT
9

45-62783T DRIVESHAFT

DRIVESHAFT
10

15-26320A1 SHIM ASSEMBLY, ROLLER BEARING TO GEAR HOUSING

SHIM ASSEMBLY, ROLLER BEARING TO GEAR HOUSING
11

31-48941A1 BEARING ASSEMBLY, Roller, DRIVE SHAFT

BEARING ASSEMBLY, Roller, DRIVE SHAFT
12

31-35990A1 BEARING ASSEMBLY, Roller, DRIVE SHAFT

BEARING ASSEMBLY, Roller, DRIVE SHAFT
13

25-54030 O-RING, (2.987 x .103), GEAR HOUSING

O-RING, (2.987 x .103), GEAR HOUSING
14

97-31640Q4 TRIM TAB ASSEMBLY, GEAR HOUSING

TRIM TAB ASSEMBLY, GEAR HOUSING
15

10-41350 SCREW, (.437-14 x 2.50) Stainless Steel, TRIM TAB TO GEAR HOUSING (2-1/2")

SCREW, (.437-14 x 2.50) Stainless Steel, TRIM TAB TO GEAR HOUSING (2-1/2")
16

15-55499A1 SHIM ASSEMBLY, ROLLER BEARING (LEFT HAND ROTATION)

SHIM ASSEMBLY, ROLLER BEARING (LEFT HAND ROTATION)
17

31-8M0103475 BEARING ASSEMBLY, Tapered Roller (LEFT HAND ROTATION)

BEARING ASSEMBLY, Tapered Roller (LEFT HAND ROTATION)
18

44-62820T1 PROPELLER SHAFT (LEFT HAND ROTATION)

PROPELLER SHAFT (LEFT HAND ROTATION)
19

31-8M0103474 BEARING ASSEMBLY, Tapered Roller (LEFT HAND ROTATION)

BEARING ASSEMBLY, Tapered Roller (LEFT HAND ROTATION)
16

15-47397A1 SHIM SET, ROLLER BEARING (RIGHT HAND ROTATION)

SHIM SET, ROLLER BEARING (RIGHT HAND ROTATION)
17

31-62801A1 BEARING ASSEMBLY, Tapered Roller (RIGHT HAND ROTATION)

BEARING ASSEMBLY, Tapered Roller (RIGHT HAND ROTATION)
18

44-62792 PROPELLER SHAFT (RIGHT HAND ROTATION)

PROPELLER SHAFT (RIGHT HAND ROTATION)
19

31-62799A1 BEARING SET (RIGHT HAND ROTATION)

BEARING SET (RIGHT HAND ROTATION)
20

43-62881T1 GEAR, Drive (24 TEETH)

GEAR, Drive (24 TEETH)
21

66103A1 THRUST RING ASSEMBLY

THRUST RING ASSEMBLY
22

23-66093T LOAD RING, THURST RING

LOAD RING, THURST RING
23

25-34821 O-RING, BEARING CARRIER

O-RING, BEARING CARRIER
24

863913A04 CARRIER ASSEMBLY, Bearing

CARRIER ASSEMBLY, Bearing
25

31-54042T BEARING, Roller, BEARING CARRIER

BEARING, Roller, BEARING CARRIER
26

26-821092 SEAL, Oil, BEARING CARRIER

SEAL, Oil, BEARING CARRIER
27

28-30281 KEY, LOCATING - BEARING CARRIER

KEY, LOCATING - BEARING CARRIER
28

14-54167 TAB WASHER, GEAR HOUSING COVER

TAB WASHER, GEAR HOUSING COVER
29

54163 RETAINER, GEAR HOUSING

RETAINER, GEAR HOUSING
30

55074T THRUST HUB

THRUST HUB
31

12-55073A2 WASHER ASSEMBLY, SPLINED - PROPELLER SHAFT

WASHER ASSEMBLY, SPLINED - PROPELLER SHAFT
32

12-55072 WASHER, BEARING CARRIER

WASHER, BEARING CARRIER
33

14-34817 TAB WASHER, PROPELLER NUT

TAB WASHER, PROPELLER NUT
34

11-82671127 NUT, (1.0-14), PROPELLER (1-1/4-7 THREAD)

NUT, (1.0-14), PROPELLER (1-1/4-7 THREAD)
35

25-54029 O-RING, (2.800 x .103), GEAR HOUSING

O-RING, (2.800 x .103), GEAR HOUSING
36

10-47557 SCREW, (.500-13 x 1.500), GEAR HOUSING (1-1/2")

SCREW, (.500-13 x 1.500), GEAR HOUSING (1-1/2")
37

11-34933 NUT, (.437-20) Stainless Steel, DRIVE SHAFT HOUSING STUD

NUT, (.437-20) Stainless Steel, DRIVE SHAFT HOUSING STUD
