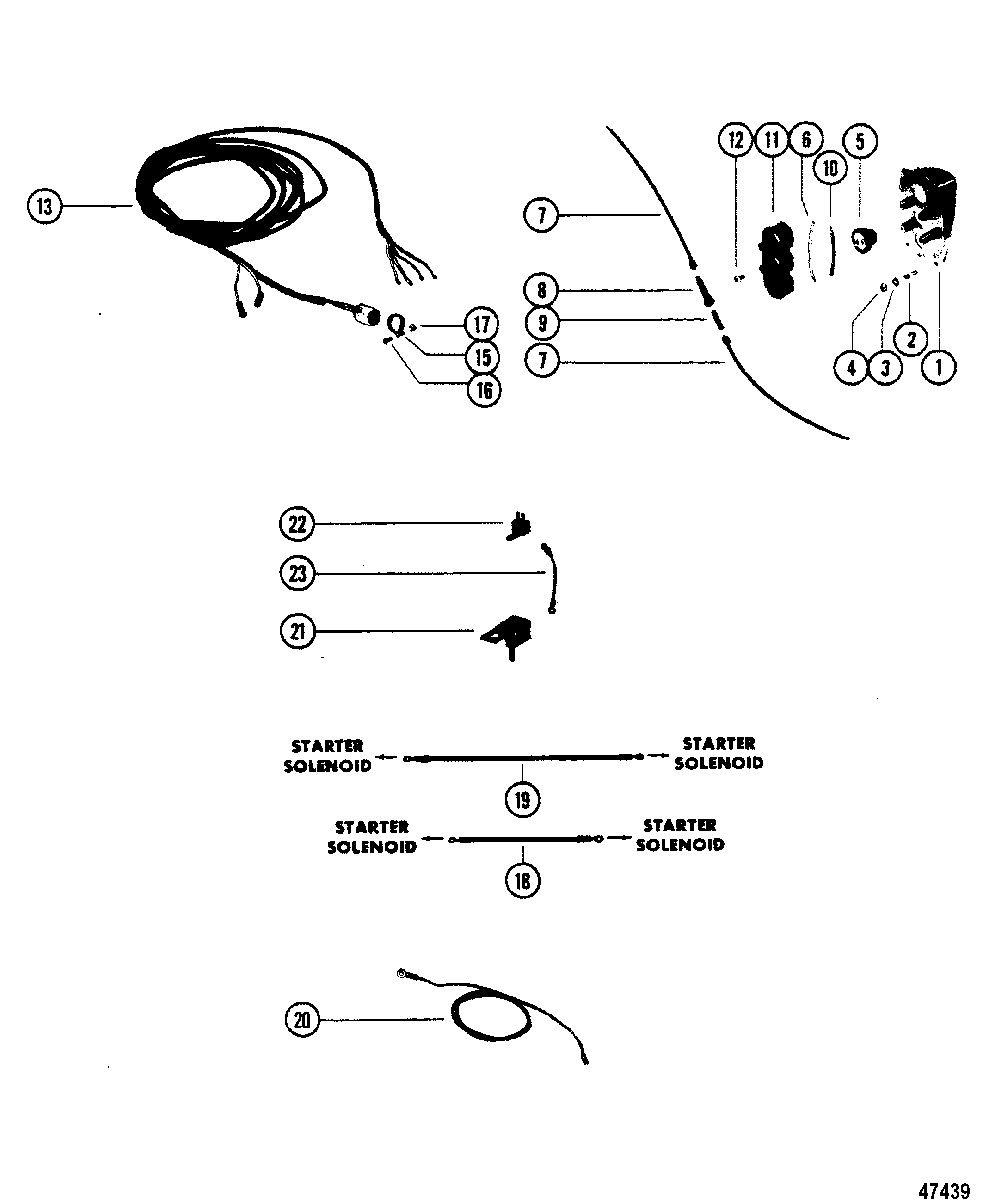

CONTROL PANEL(PRESTOLITE PUMP USE WITH ERL) для Mercruiser - TR/TRS 1977-1993 4794900 & Up

  • №
    Артикул
    Название
  • --
    55642A13 CONTROL PANEL ASSEMBLY, COMPLETE
    CONTROL PANEL ASSEMBLY, COMPLETE
  • 1
    55642A17 PANEL, CONTROL
    PANEL, CONTROL
  • 2
    16-55422 STUD, (#10-32 x 2.00), CONTROL PANEL TO BOAT (2")
    STUD, (#10-32 x 2.00), CONTROL PANEL TO BOAT (2")
  • 3
    12-24676 WASHER, (.200 x .440 x .032), CONTROL PANEL STUD
    WASHER, (.200 x .440 x .032), CONTROL PANEL STUD
  • 4
    11-27164 NUT AND LOCKWASHER, (#10-32), CONTROL PANEL STUD
    NUT AND LOCKWASHER, (#10-32), CONTROL PANEL STUD
  • 5
    55738A1 SWITCH ASSEMBLY, PUSH BUTTON - CONTROL PANEL
    SWITCH ASSEMBLY, PUSH BUTTON - CONTROL PANEL
  • 6
    48078 WIRE, Jumper (RED - 3-1/4") - USE WITHOUT FUSE
    WIRE, Jumper (RED - 3-1/4") - USE WITHOUT FUSE
  • 7
    84-69174A2 WIRE, (24.00 Inches) (RED - 24")
    WIRE, (24.00 Inches) (RED - 24")
  • 8
    88-69358A1 CAP ASSEMBLY, FUSE HOLDER
    CAP ASSEMBLY, FUSE HOLDER
  • 9
    88-79091 FUSE, 20 Ampere (20 AMP)
    FUSE, 20 Ampere (20 AMP)
  • 10
    53107 WIRE, Jumper (3.00 Inches) (PURPLE - 3")
    WIRE, Jumper (3.00 Inches) (PURPLE - 3")
  • 11
    55641 RETAINER, PUSH BUTTON SWITCH
    RETAINER, PUSH BUTTON SWITCH
  • 12
    10-62568 SCREW, (#10-16 x .375), SWITCH RETAINER (1/2")
    SCREW, (#10-16 x .375), SWITCH RETAINER (1/2")
  • 13
    84-87394A20 HARNESS ASSEMBLY, CONTROL PANEL
    HARNESS ASSEMBLY, CONTROL PANEL
  • 15
    95814 CLAMP, HARNESS
    CLAMP, HARNESS
  • 16
    10-29227 SCREW, (#8-32 x 0.50), HARNESS CLAMP (1/2")
    SCREW, (#8-32 x 0.50), HARNESS CLAMP (1/2")
  • 17
    11-34388 NUT, HARNESS CLAMP SCREW
    NUT, HARNESS CLAMP SCREW
  • 18
    84-79139A2 WIRE ASSEMBLY, Jumper, SOLENOID (RED - 7-1/2")
    WIRE ASSEMBLY, Jumper, SOLENOID (RED - 7-1/2")
  • 19
    55992 WIRE, Jumper, SOLENOID (BLACK - 11-1/2")
    WIRE, Jumper, SOLENOID (BLACK - 11-1/2")
  • 20
    84-79139A9 CABLE ASSEMBLY, Battery (POSITIVE)
    CABLE ASSEMBLY, Battery (POSITIVE)
  • 20
    84-79138A1 CABLE ASSEMBLY (NEGATIVE)
    CABLE ASSEMBLY (NEGATIVE)
  • 21
    88-79023T90 FUSE ASSEMBLY, 90 Ampere (90 AMP)
    FUSE ASSEMBLY, 90 Ampere (90 AMP)
  • 22
    88-79137 BREAKER, Circuit
    BREAKER, Circuit
  • 23
    84-79148A1 WIRE ASSEMBLY, Jumper (RED)
    WIRE ASSEMBLY, Jumper (RED)
