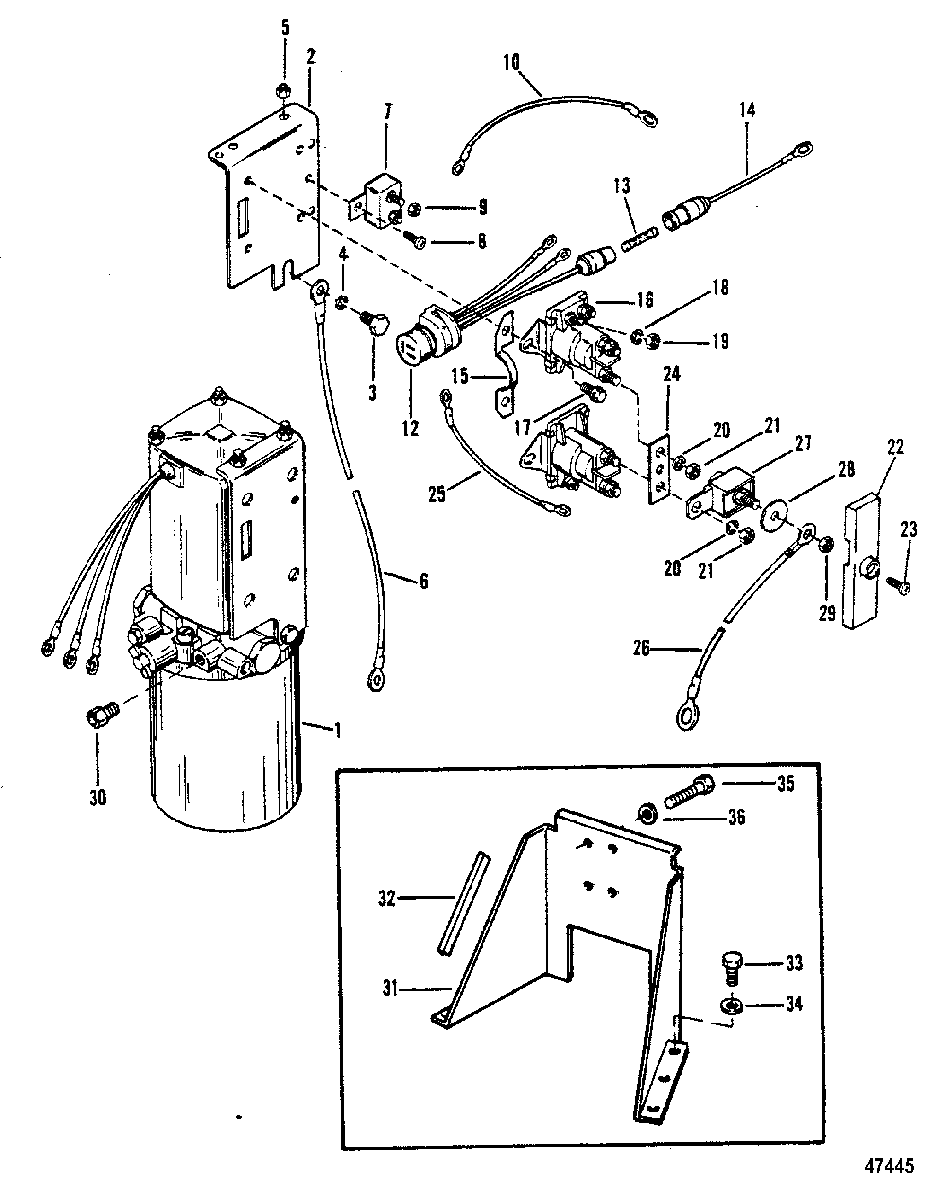

HYDRAULIC PUMP AND BRACKET(OILDYNE PUMP METAL RESERVOIR) для Mercruiser - TR/TRS 1977-1993 4794900 & Up
-
№АртикулНазвание
-
1865380A13 PUMP ASSEMBLY, HydraulicPUMP ASSEMBLY, Hydraulic
-
290426F1 BRACKET, MOUNTING - STARTER SOLENOIDBRACKET, MOUNTING - STARTER SOLENOID
-
310-90285 SCREW, (.312-18 x .625), MOUNTING BRACKET (5/8")SCREW, (.312-18 x .625), MOUNTING BRACKET (5/8")
-
412-56720 WASHER, (.330 x .750 x .060) Stainless Steel, MOUNTING BRACEKT SCREWWASHER, (.330 x .750 x .060) Stainless Steel, MOUNTING BRACEKT SCREW
-
511-826709106 NUT, (#10-32), MOUNTING BRACKET TO HYDRAULIC PUMPNUT, (#10-32), MOUNTING BRACKET TO HYDRAULIC PUMP
-
684-79138A9 CABLE ASSEMBLY, (6.00 Feet) Black-Negative, BLACK (NEGATIVE)CABLE ASSEMBLY, (6.00 Feet) Black-Negative, BLACK (NEGATIVE)
-
788-8M0085705 BREAKER, Circuit - 20 Ampere (20 AMP.)BREAKER, Circuit - 20 Ampere (20 AMP.)
-
810-8M0113176 SCREW, (#10-24 x .375), CIRCUIT BREAKERSCREW, (#10-24 x .375), CIRCUIT BREAKER
-
911-45076 NUT, (#10-32) Brass, CIRCUIT BREAKER TERMINALNUT, (#10-32) Brass, CIRCUIT BREAKER TERMINAL
-
1084-87379A5 WIRE, SOLENOID TO SOLENOID (RED)WIRE, SOLENOID TO SOLENOID (RED)
-
1284-79147A3 HARNESS ASSEMBLY, HYDRAULIC PUMPHARNESS ASSEMBLY, HYDRAULIC PUMP
-
1388-79091 FUSE, 20 Ampere (20 AMP.)FUSE, 20 Ampere (20 AMP.)
-
1484-95084A2 CABLE ASSEMBLY, FUSECABLE ASSEMBLY, FUSE
-
1588075 RETAINER, HARNESS TO MOUNTING BRACKETRETAINER, HARNESS TO MOUNTING BRACKET
-
1689-96158T SOLENOID, Starter, TRIM PUMPSOLENOID, Starter, TRIM PUMP
-
1710-41508 SCREW, (.250-20 x .500) Stainless Steel, STARTER SOLENOID TO BRACKET (3/8")SCREW, (.250-20 x .500) Stainless Steel, STARTER SOLENOID TO BRACKET (3/8")
-
1813-26995 LOCKWASHER, (#8) Stainless Steel, STARTER SOLENOID TERMINAL (#8)LOCKWASHER, (#8) Stainless Steel, STARTER SOLENOID TERMINAL (#8)
-
1911-26419 NUT, (#8-32) Brass, STARTER SOLENOID TERMINAL (#8-32)NUT, (#8-32) Brass, STARTER SOLENOID TERMINAL (#8-32)
-
2013-26992 LOCKWASHER, (.250) Stainless Steel, STARTER SOLENOID TERMINAL (1/4")LOCKWASHER, (.250) Stainless Steel, STARTER SOLENOID TERMINAL (1/4")
-
2111-94330 NUT, (.250-20) Brass, STARTER SOLENOID TERMINAL (1/4-20)NUT, (.250-20) Brass, STARTER SOLENOID TERMINAL (1/4-20)
-
2285-861680 BOOT, RUBBER - STARTER SOLENOID TERMINALBOOT, RUBBER - STARTER SOLENOID TERMINAL
-
2310-48409 SCREW, (#10-24 x .625), SOLENOID INSULATORSCREW, (#10-24 x .625), SOLENOID INSULATOR
-
2494275 LINK, SOLENOID TO SOLENOIDLINK, SOLENOID TO SOLENOID
-
2584-86322A15 CABLE ASSEMBLY, (5.50 Inches) Black, SOLENOID TO SOLENOID (BLACK)CABLE ASSEMBLY, (5.50 Inches) Black, SOLENOID TO SOLENOID (BLACK)
-
2684-79139A12 CABLE ASSEMBLY, Red-Positive, RED (POSITIVE)CABLE ASSEMBLY, Red-Positive, RED (POSITIVE)
-
2788-79023T10 FUSE ASSEMBLY, 110 Ampere (110 AMP.)FUSE ASSEMBLY, 110 Ampere (110 AMP.)
-
2812-96457 WASHER, Phenolic (.27 x .81 x .062), FUSE TERMINALWASHER, Phenolic (.27 x .81 x .062), FUSE TERMINAL
-
2911-21825 NUT, (.250-28), FUSE TERMINALNUT, (.250-28), FUSE TERMINAL
-
3022-89029 ADAPTOR, HYDRAULIC PUMPADAPTOR, HYDRAULIC PUMP
-
31862548A1 BRACKET ASSEMBLY, MOUNTING - HYD. PUMP (FLOOR MOUNTED)BRACKET ASSEMBLY, MOUNTING - HYD. PUMP (FLOOR MOUNTED)
-
3258491 CHANNEL, Rubber (4.00 Inches), RUBBER - PUMP MOUNTING BRACKETCHANNEL, Rubber (4.00 Inches), RUBBER - PUMP MOUNTING BRACKET
-
3310-59784 SCREW, (.250-10 x 1.00), PUMP MOUNTING BRACKET ATTACHING (1")SCREW, (.250-10 x 1.00), PUMP MOUNTING BRACKET ATTACHING (1")
-
3412-29245 WASHER, (.281 x .500 x .060) Stainless Steel, PUMP MOUNTING BRACKET SCREWWASHER, (.281 x .500 x .060) Stainless Steel, PUMP MOUNTING BRACKET SCREW
-
3510-90271 SCREW, (.375-16 x .62), HYDRAULIC PUMP TO MOUNTING BRACKETSCREW, (.375-16 x .62), HYDRAULIC PUMP TO MOUNTING BRACKET
-
3613-58643 LOCKWASHER, (.375), HYDRAULIC PUMP SCREWLOCKWASHER, (.375), HYDRAULIC PUMP SCREW
-
37865380A25 PUMP ASSEMBLY, Hydraulic (INCLUDES ALL PARTS ON THIS PAGE)PUMP ASSEMBLY, Hydraulic (INCLUDES ALL PARTS ON THIS PAGE)
