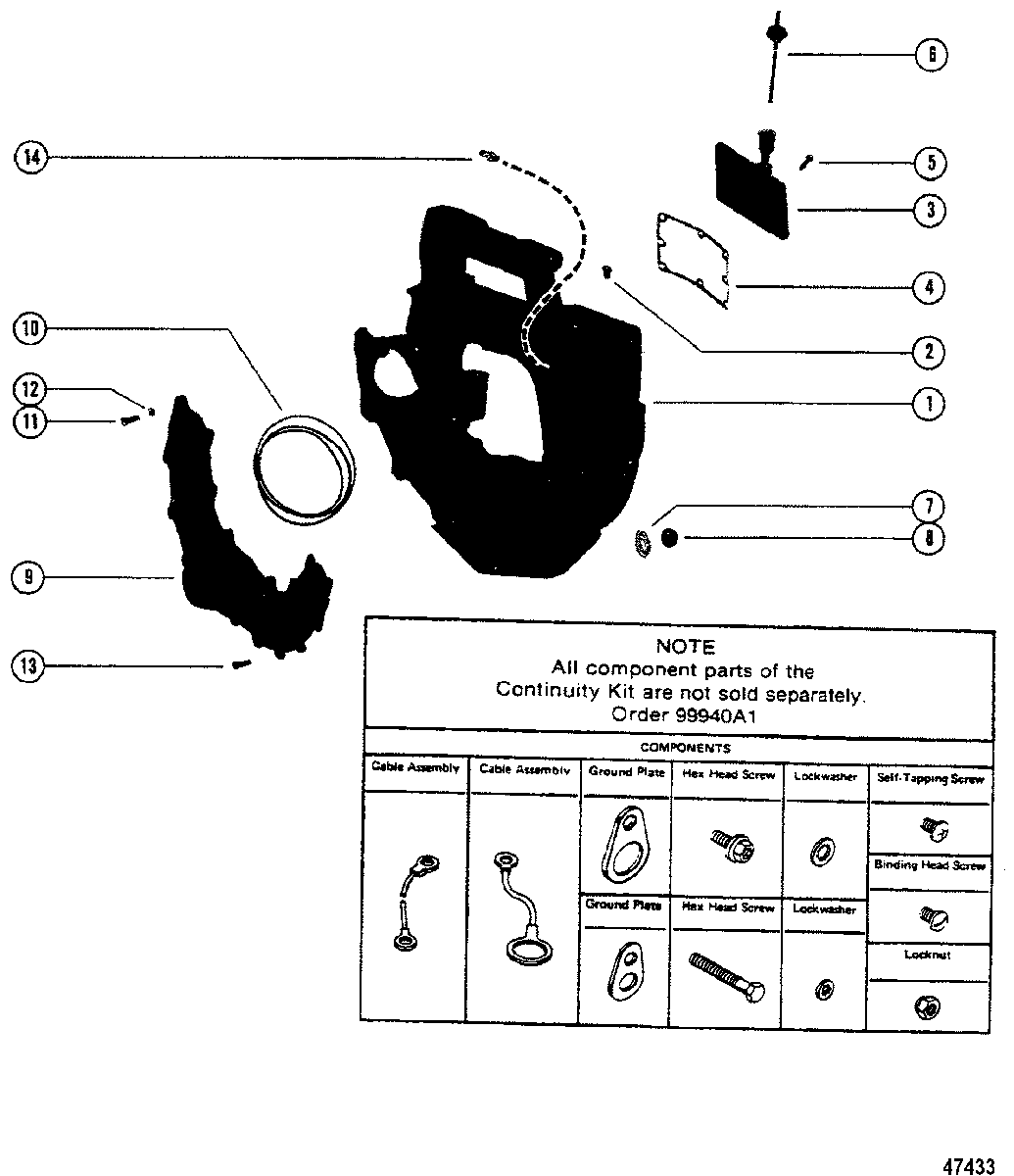

TRANSOM PLATE для Mercruiser - TR/TRS 1977-1993 4794900 & Up

  • №
    Артикул
    Название
  • 1
    62952T PLATE, Transom
    PLATE, Transom
  • 2
    22-47902 FITTING, OIL RESERVOIR
    FITTING, OIL RESERVOIR
  • 3
    54244A3 COVER ASSEMBLY, OIL RESERVOIR
    COVER ASSEMBLY, OIL RESERVOIR
  • 4
    27-543071 GASKET, OIL RESERVOIR COVER
    GASKET, OIL RESERVOIR COVER
  • 5
    10-54523 SCREW, (.312-18 x 1.00), OIL RESERVOIR COVER (1")
    SCREW, (.312-18 x 1.00), OIL RESERVOIR COVER (1")
  • 6
    55083T DIPSTICK, OIL LEVEL - OIL RESERVOIR
    DIPSTICK, OIL LEVEL - OIL RESERVOIR
  • 7
    12-34876 WASHER
    WASHER
  • 8
    11-35000 NUT, (.500-20) Stainless Steel, GIMBAL HOUSING STUD
    NUT, (.500-20) Stainless Steel, GIMBAL HOUSING STUD
  • 9
    54234T COVER, EXHAUST
    COVER, EXHAUST
  • 10
    55897 SEAL, EXHAUST COVER
    SEAL, EXHAUST COVER
  • 11
    10-20639 SCREW, (.312-24 x 1.12), EXHAUST COVER (1-1/8")
    SCREW, (.312-24 x 1.12), EXHAUST COVER (1-1/8")
  • 12
    11-29250 NUT, (.312-24), EXHAUST COVER SCREW
    NUT, (.312-24), EXHAUST COVER SCREW
  • 13
    10-35386 SCREW, (.312-18 x 1.00), EXHAUST COVER - BOTTOM (1")
    SCREW, (.312-18 x 1.00), EXHAUST COVER - BOTTOM (1")
  • 14
    22-34982 CONNECTOR, TRANSOM PLATE (OIL BASE)
    CONNECTOR, TRANSOM PLATE (OIL BASE)
  • -
    79430 COVER, EXHAUST TUBE BLOCK-OFF
    COVER, EXHAUST TUBE BLOCK-OFF
  • -
    99940A2 CONTINUITY KIT (COMPONENTS NOT SOLD SEPARATELY)
    CONTINUITY KIT (COMPONENTS NOT SOLD SEPARATELY)
