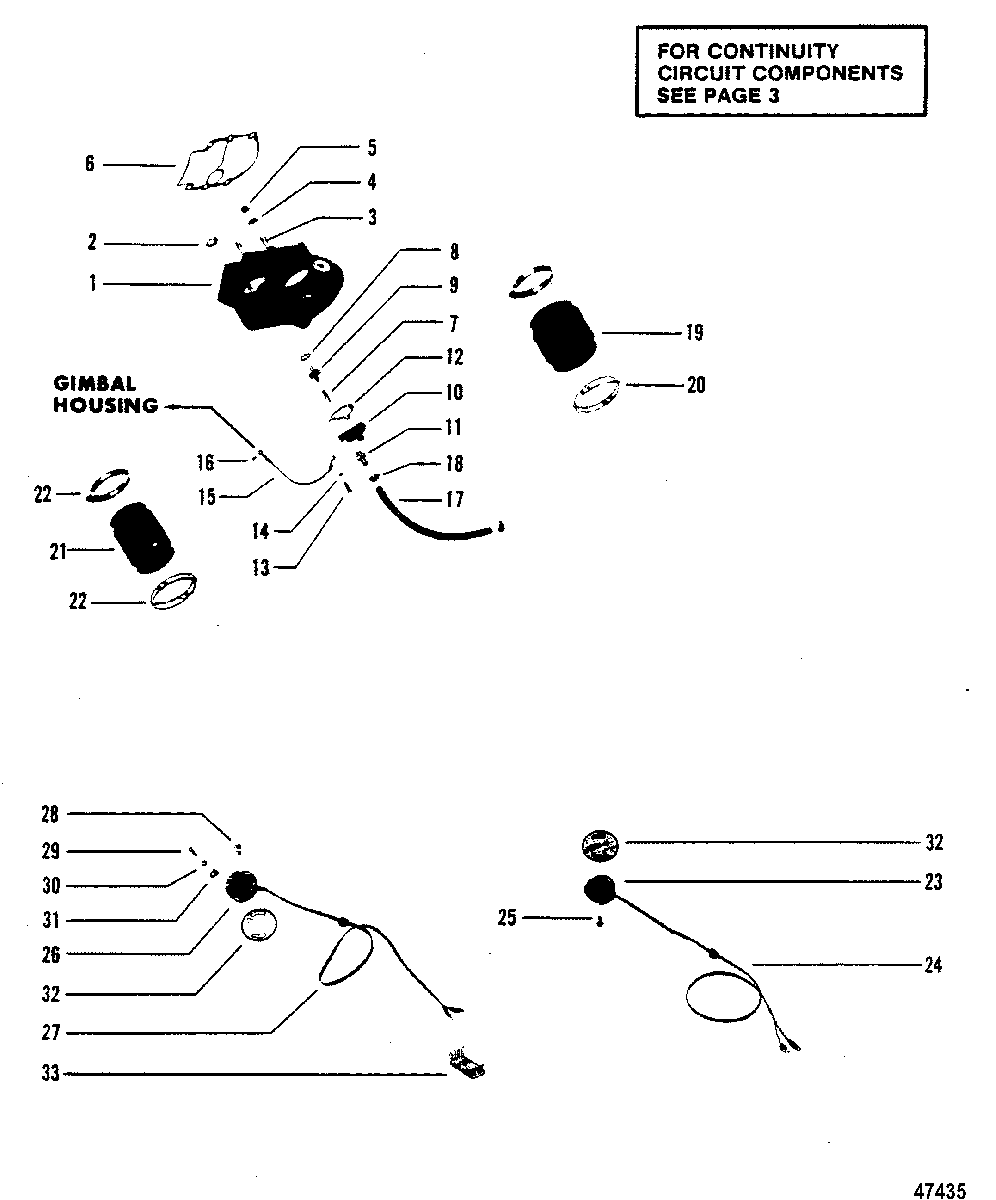

BELL HOUSING для Mercruiser - TR/TRS 1977-1993 4794900 & Up

  • №
    Артикул
    Название
  • 1
    62814A3 BELL HOUSING ASSEMBLY
    BELL HOUSING ASSEMBLY
  • 2
    26-48443 SEAL, Oil, BELL HOUSING
    SEAL, Oil, BELL HOUSING
  • 3
    16-54011 STUD, BELL HOUSING (3-1/4")
    STUD, BELL HOUSING (3-1/4")
  • 4
    12-54012 WASHER, (.530 x .870 x .105) Stainless Steel, BELL HOUSING STUD
    WASHER, (.530 x .870 x .105) Stainless Steel, BELL HOUSING STUD
  • 5
    11-35000 NUT, (.500-20) Stainless Steel, BELL HOUSING STUD
    NUT, (.500-20) Stainless Steel, BELL HOUSING STUD
  • 6
    27-54014Q1 GASKET, BELL HOUSING
    GASKET, BELL HOUSING
  • 7
    24-48442 SPRING, TENSION - OIL RELEASE CHECK VALVE
    SPRING, TENSION - OIL RELEASE CHECK VALVE
  • 8
    25-48452 QUAD RING, OIL RELEASE CHECK VALVE
    QUAD RING, OIL RELEASE CHECK VALVE
  • 9
    20-48219 CHECK VALVE, OIL RELEASE
    CHECK VALVE, OIL RELEASE
  • 10
    54170A1 COVER ASSEMBLY, CHECK VALVE GUIDE
    COVER ASSEMBLY, CHECK VALVE GUIDE
  • 11
    22-34982 CONNECTOR, CHECK VALVE GUIDE COVER
    CONNECTOR, CHECK VALVE GUIDE COVER
  • 12
    27-540211 GASKET, CHECK VALVE GUIDE COVER
    GASKET, CHECK VALVE GUIDE COVER
  • 13
    10-36137 SCREW, (.250-28 x 1.00), CHECK VALVE GUIDE COVER (1")
    SCREW, (.250-28 x 1.00), CHECK VALVE GUIDE COVER (1")
  • 14
    13-26992 LOCKWASHER, (.250) Stainless Steel, CHECK VALVE GUIDE COVER SCREW
    LOCKWASHER, (.250) Stainless Steel, CHECK VALVE GUIDE COVER SCREW
  • 15
    57292 WIRE, Jumper, GIMBAL HOUSING TO COVER
    WIRE, Jumper, GIMBAL HOUSING TO COVER
  • 16
    10-47225 SCREW, (#10-32 x .250), JUMPER CABLE
    SCREW, (#10-32 x .250), JUMPER CABLE
  • 17
    32-34423 HOSE, OIL - BELL HOUSING TO GIMBAL HOUSING (12-5/8")
    HOSE, OIL - BELL HOUSING TO GIMBAL HOUSING (12-5/8")
  • 18
    54-815504104 CLAMP, HOSE
    CLAMP, HOSE
  • 19
    60932A4 BELLOWS ASSEMBLY, UNIVERSAL JOINT
    BELLOWS ASSEMBLY, UNIVERSAL JOINT
  • --
    54-8M0126505 CLIP, Grounding, GROUNDING
    CLIP, Grounding, GROUNDING
  • 20
    54-815504372 CLAMP, BELLOWS
    CLAMP, BELLOWS
  • 21
    78632A1 TUBE, EXHAUST
    TUBE, EXHAUST
  • 22
    54-815504360 CLAMP, EXHAUST BELLOWS
    CLAMP, EXHAUST BELLOWS
  • 23
    805320A2 SWITCH ASSEMBLY, TRIM LIMIT (PORT SIDE)
    SWITCH ASSEMBLY, TRIM LIMIT (PORT SIDE)
  • 24
    84-19279 HARNESS ASSEMBLY, TRIM LIMIT SWITCH (PORT SIDE)
    HARNESS ASSEMBLY, TRIM LIMIT SWITCH (PORT SIDE)
  • 25
    10-63400 SCREW, (#6-32 x .125), HARNESS ATTACHING (5/23") (PORT SIDE)
    SCREW, (#6-32 x .125), HARNESS ATTACHING (5/23") (PORT SIDE)
  • 26
    64947 SENDER, DUMMY (STARBOARD SIDE)
    SENDER, DUMMY (STARBOARD SIDE)
  • 27
    84-64987 HARNESS ASSEMBLY, DUMMY SENDER (STARBOARD SIDE)
    HARNESS ASSEMBLY, DUMMY SENDER (STARBOARD SIDE)
  • 28
    19-96069 PLUG, HARNESS ATTACHING (STARBOARD SIDE)
    PLUG, HARNESS ATTACHING (STARBOARD SIDE)
  • 29
    10-37978 SCREW, (#10-32 x .750) Stainless Steel, TRIM SENDER AND SWITCH TO GIMBAL RING (3/4")
    SCREW, (#10-32 x .750) Stainless Steel, TRIM SENDER AND SWITCH TO GIMBAL RING (3/4")
  • 30
    13-26996 LOCKWASHER, (#10) Stainless Steel, TRIM SENDER AND SWITCH SCREW
    LOCKWASHER, (#10) Stainless Steel, TRIM SENDER AND SWITCH SCREW
  • 31
    57008 RETAINER, TRIM SENDER AND SWITCH SCREW
    RETAINER, TRIM SENDER AND SWITCH SCREW
  • 32
    85-63990 INSULATOR, SWITCH AND SENDER
    INSULATOR, SWITCH AND SENDER
  • 33
    79146 RETAINER, CONNECTOR - TRIM SWITCH LEADS
    RETAINER, CONNECTOR - TRIM SWITCH LEADS
  • -
    805320A2 SENDER KIT, Single Station (OPTIONAL)
    SENDER KIT, Single Station (OPTIONAL)
  • -
    805130A8 SENDER KIT, Dual Station (OPTIONAL)
    SENDER KIT, Dual Station (OPTIONAL)
  • -
    42385A7 GIMBAL RING KIT
    GIMBAL RING KIT
