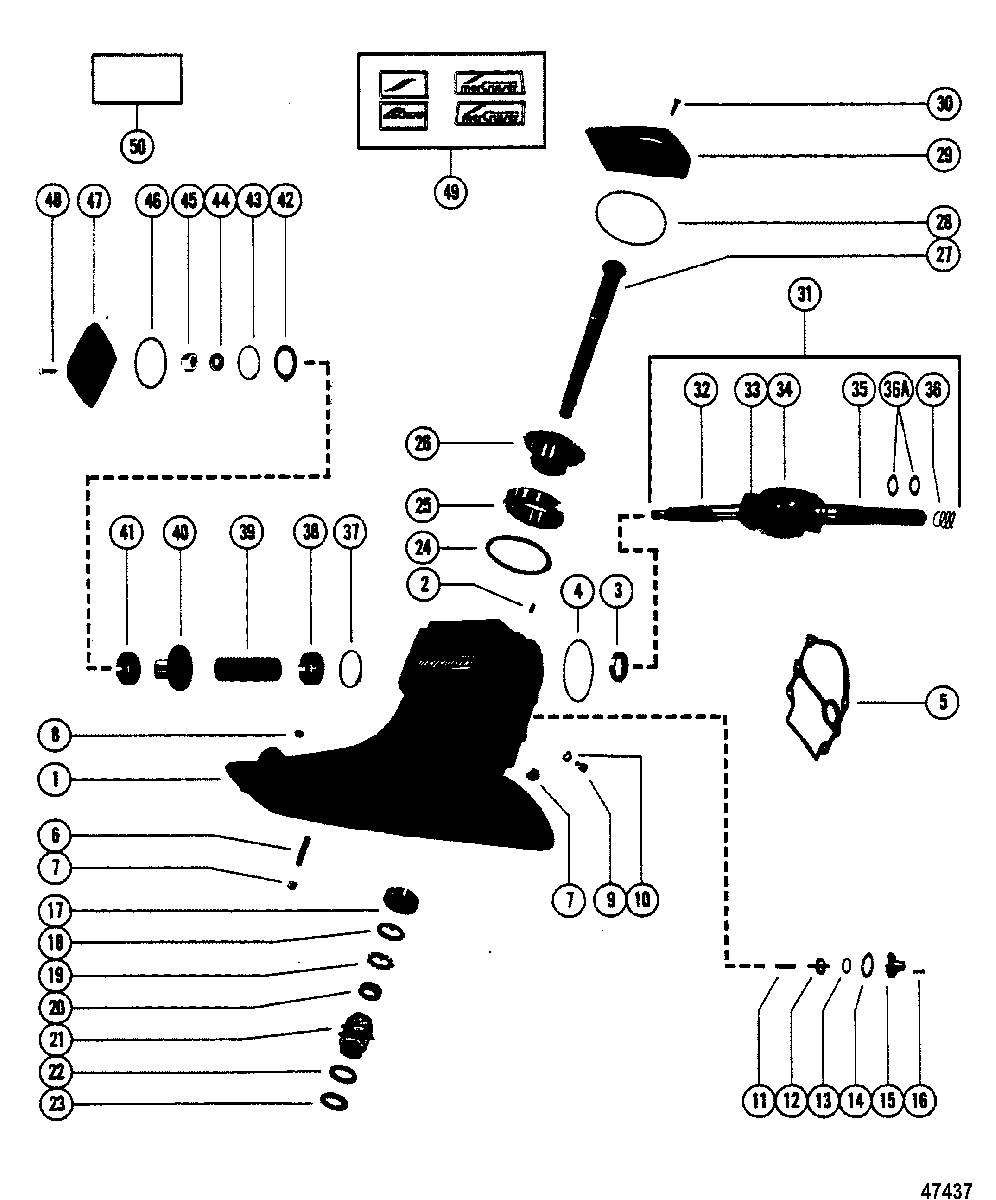

DRIVE SHAFT HOUSING AND GEAR ASSEMBLY для Mercruiser - TR/TRS 1977-1993 4794900 & Up

  • №
    Артикул
    Название
  • 1
    1571-4847A5 HOUSING ASSEMBLY, Driveshaft
    HOUSING ASSEMBLY, Driveshaft
  • 2
    10-21934 SCREW, (.375-16 x .500), SET - DRIVE SHAFT HOUSING
    SCREW, (.375-16 x .500), SET - DRIVE SHAFT HOUSING
  • 3
    26-62818 SEAL, DRIVE SHAFT HOUSING
    SEAL, DRIVE SHAFT HOUSING
  • 4
    25-62817 O-RING, DRIVE SHAFT HOUSING
    O-RING, DRIVE SHAFT HOUSING
  • 5
    27-54014Q1 GASKET, DRIVE SHAFT HOUSING TO BELL HOUSING
    GASKET, DRIVE SHAFT HOUSING TO BELL HOUSING
  • 6
    16-54674 STUD, (.437-14/.437-20 x 2.250), DRIVE SHAFT HOUSING (2-1/4")
    STUD, (.437-14/.437-20 x 2.250), DRIVE SHAFT HOUSING (2-1/4")
  • 7
    11-34933 NUT, (.437-20) Stainless Steel, DRIVE SHAFT HOUSING STUD
    NUT, (.437-20) Stainless Steel, DRIVE SHAFT HOUSING STUD
  • 8
    19-47579 PLUG, TRIM TAB HOLE
    PLUG, TRIM TAB HOLE
  • 9
    10-79953Q04 SCREW, (.375-16 x .250), VENT
    SCREW, (.375-16 x .250), VENT
  • 10
    12-191833 WASHER, SEALING
    WASHER, SEALING
  • 11
    24-48442 SPRING, TENSION
    SPRING, TENSION
  • 12
    20-48219 CHECK VALVE
    CHECK VALVE
  • 13
    25-48452 QUAD RING
    QUAD RING
  • 14
    27-66925 GASKET
    GASKET
  • 15
    54168 GUIDE
    GUIDE
  • 16
    10-22523 SCREW, (.190-32 x .75)
    SCREW, (.190-32 x .75)
  • 17
    31-38356A1 BEARING SET, DRIVE SHAFT
    BEARING SET, DRIVE SHAFT
  • 18
    12-62795 WASHER, DRIVE SHAFT
    WASHER, DRIVE SHAFT
  • 19
    13-62788 LOCKWASHER, DRIVE SHAFT
    LOCKWASHER, DRIVE SHAFT
  • 20
    11-41527T NUT, DRIVE SHAFT
    NUT, DRIVE SHAFT
  • 21
    62787A2 COUPLING ASSEMBLY, OIL SLINGER
    INCLUDED WITH GEAR HOUSING ASSEMBLIES
    COUPLING ASSEMBLY, OIL SLINGER
    INCLUDED WITH GEAR HOUSING ASSEMBLIES
  • 22
    15-36178A02 SHIM ASSEMBLY, ROLLER BEARING TO COUPLING
    INCLUDED WITH GEAR HOUSING ASSEMBLIES
    SHIM ASSEMBLY, ROLLER BEARING TO COUPLING
    INCLUDED WITH GEAR HOUSING ASSEMBLIES
  • 23
    12-62797 WASHER, ROLLER BEARING TO COUPLING
    INCLUDED WITH GEAR HOUSING ASSEMBLIES
    WASHER, ROLLER BEARING TO COUPLING
    INCLUDED WITH GEAR HOUSING ASSEMBLIES
  • 24
    15-846353A1 SHIM SET, TAPERED ROLLER BEARING
    SHIM SET, TAPERED ROLLER BEARING
  • 25
    31-62799A1 BEARING SET, DRIVE GEAR
    BEARING SET, DRIVE GEAR
  • 26
    43-62879T1 GEAR, Driven, DRIVE SHAFT (32 TEETH)
    (SEE NOTE #1)
    GEAR, Driven, DRIVE SHAFT (32 TEETH)
    (SEE NOTE #1)
  • 27
    45-62793T DRIVESHAFT
    DRIVESHAFT
  • 28
    25-67202 O-RING, TOP COVER
    O-RING, TOP COVER
  • 29
    62911T COVER, TOP
    COVER, TOP
  • 30
    10-35047 SCREW, (.375-16 x 1.250) Stainless Steel, COVER (1-1/4")
    SCREW, (.375-16 x 1.250) Stainless Steel, COVER (1-1/4")
  • 31
    62782A8 UNIVERSAL JOINT ASSEMBLY (MERCURY MARINE TRANSMISSION)
    UNIVERSAL JOINT ASSEMBLY (MERCURY MARINE TRANSMISSION)
  • 31
    62782A4 UNIVERSAL JOINT ASSEMBLY (BORG WARNER TRANSMISSION)
    UNIVERSAL JOINT ASSEMBLY (BORG WARNER TRANSMISSION)
  • 32
    62782A6 STUB ASSEMBLY, UNIVERSAL JOINT (GEAR END)
    STUB ASSEMBLY, UNIVERSAL JOINT (GEAR END)
  • 33
    75832T1 CROSS AND BEARING
    CROSS AND BEARING
  • 34
    393831 SOCKET, Center, CENTER - UNIVERSAL JOINT
    SOCKET, Center, CENTER - UNIVERSAL JOINT
  • 35
    62784A1 STUB ASSEMBLY, UNIV. JOINT (COUPLING END)
    MERUCRY MARINE TRANSMISSION
    STUB ASSEMBLY, UNIV. JOINT (COUPLING END)
    MERUCRY MARINE TRANSMISSION
  • 36
    24-62727 SPRING, UNIVERSAL JOINT
    MERUCRY MARINE TRANSMISSION
    SPRING, UNIVERSAL JOINT
    MERUCRY MARINE TRANSMISSION
  • 35
    57749A1 YOKE ASSEMBLY, UNIVERSAL (COUPLING END)
    BORG WARNER TRANSMISSION
    YOKE ASSEMBLY, UNIVERSAL (COUPLING END)
    BORG WARNER TRANSMISSION
  • 36A
    25-25439 O-RING, (.862 x .103), UNIVERSAL
    BORG WARNER TRANSMISSION
    O-RING, (.862 x .103), UNIVERSAL
    BORG WARNER TRANSMISSION
  • 37
    15-62833A1 SHIM SET, ROLLER BEARING TO HOUSING
    SHIM SET, ROLLER BEARING TO HOUSING
  • 38
    31-38356A1 BEARING SET, UNIVERSAL JOINT
    BEARING SET, UNIVERSAL JOINT
  • 39
    23-62789 SPACER, TAPERED ROLLER BEARING
    SPACER, TAPERED ROLLER BEARING
  • 40
    43-62878 GEAR (24 TEETH)
    (SEE NOTE #1)
    GEAR (24 TEETH)
    (SEE NOTE #1)
  • 41
    31-8M0103475 BEARING ASSEMBLY, Tapered Roller, PINION GEAR
    BEARING ASSEMBLY, Tapered Roller, PINION GEAR
  • 42
    12-62786 WASHER, TAPERED ROLLER BEARING
    WASHER, TAPERED ROLLER BEARING
  • 43
    15-55499A1 SHIM ASSEMBLY, TAPERED ROLLER BEARING
    SHIM ASSEMBLY, TAPERED ROLLER BEARING
  • 44
    12-48912 WASHER, PINION GEAR TO UNIVERSAL JOINT
    WASHER, PINION GEAR TO UNIVERSAL JOINT
  • 45
    11-82671327 NUT, (1.00-14), PINION GEAR TO UNIVERSAL JOINT
    NUT, (1.00-14), PINION GEAR TO UNIVERSAL JOINT
  • 46
    25-39695 O-RING, REAR COVER
    O-RING, REAR COVER
  • 47
    62785T COVER, REAR
    COVER, REAR
  • 48
    10-35047 SCREW, (.375-16 x 1.250) Stainless Steel, REAR COVER (1-1/4")
    SCREW, (.375-16 x 1.250) Stainless Steel, REAR COVER (1-1/4")
  • 49
    37-14489A90 DECAL SET, DRIVE SHAFT HOUSING (330 TR/TRS/370)
    DECAL SET, DRIVE SHAFT HOUSING (330 TR/TRS/370)
  • 50
    37-77386 DECAL, "228"
    DECAL, "228"
  • 50
    37-77412 DECAL, "330"
    DECAL, "330"
  • 50
    37-16416A87 DECAL, "420"
    DECAL, "420"
