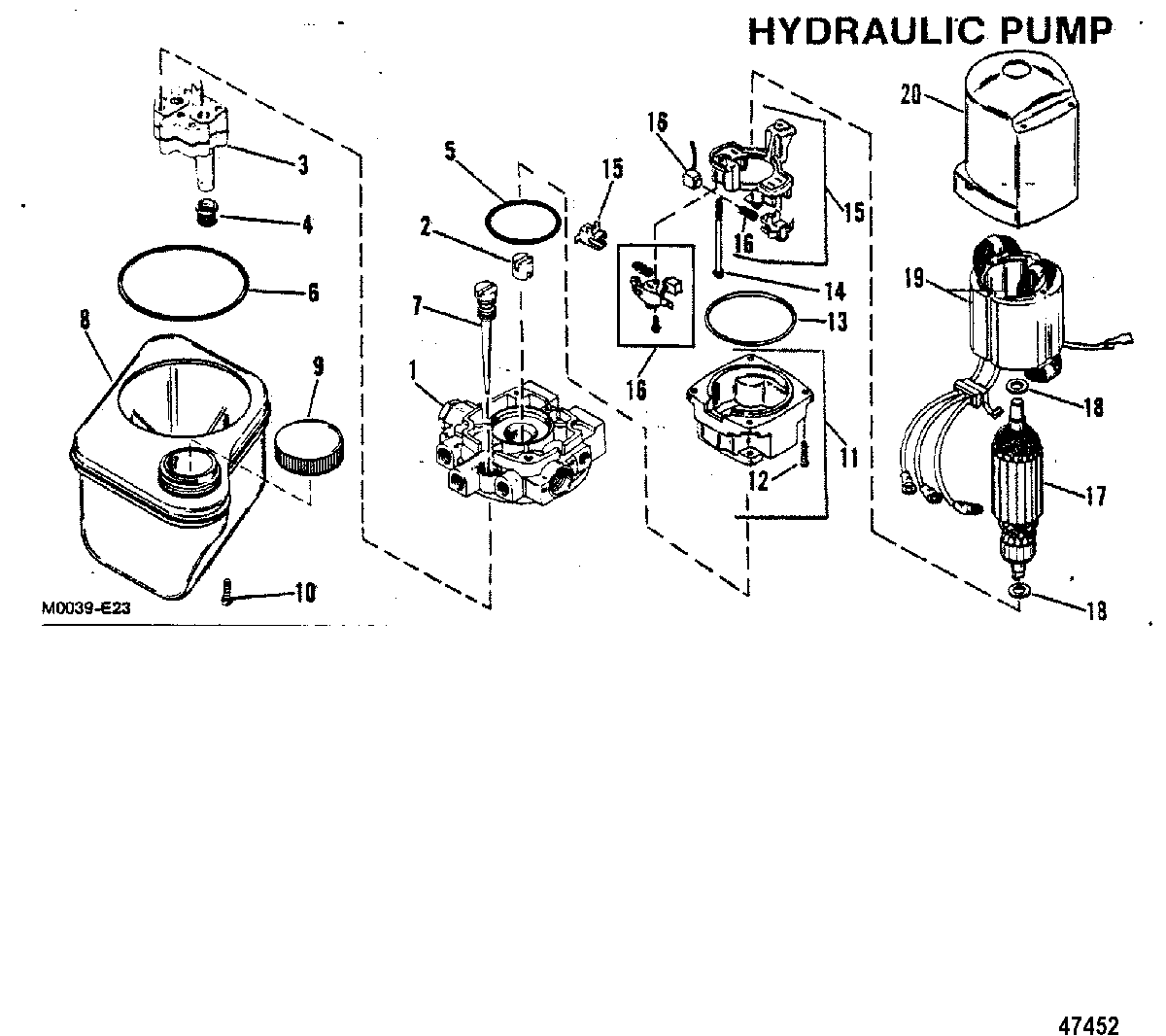

HYDRAULIC PUMP(OILDYNE PUMP PLASTIC RESERVOIR) для Mercruiser - TR/TRS 1977-1993 4794900 & Up

  • №
    Артикул
    Название
  • --
    865380A13 PUMP/MOTOR ASSEMBLY
    PUMP/MOTOR ASSEMBLY
  • 1
    808728T ADAPTOR (W/DIPSTICK)
    ADAPTOR (W/DIPSTICK)
  • 1
    808728T ADAPTOR (W/O DIPSTICK)
    ADAPTOR (W/O DIPSTICK)
  • 2
    803852 COUPLING
    COUPLING
  • 3
    18529 PUMP ASSEMBLY (INCLUDES SCREWS)
    PUMP ASSEMBLY (INCLUDES SCREWS)
  • 4
    35-89496 FILTER
    FILTER
  • 5
    25-89498 O-RING, MOTOR END
    O-RING, MOTOR END
  • 6
    25-17645 O-RING, RESERVOIR END
    O-RING, RESERVOIR END
  • 7
    41218 DIPSTICK
    DIPSTICK
  • 8
    18525A1 RESERVOIR USE W/DIPSTICK
    RESERVOIR USE W/DIPSTICK
  • 9
    36-865448A01 CAP, RESERVOIR USE W/DIPSTICK
    CAP, RESERVOIR USE W/DIPSTICK
  • 10
    10-18527 SCREW (INCLUDES "O" RING) USE W/DIPSTICK
    SCREW (INCLUDES "O" RING) USE W/DIPSTICK
  • 8
    18525A1 RESERVOIR USE W/O DIPSTICK
    RESERVOIR USE W/O DIPSTICK
  • 9
    36-865448A01 CAP, Oil Reservoir (WITH VENT HOLE) USE W/O DIPSTICK
    CAP, Oil Reservoir (WITH VENT HOLE) USE W/O DIPSTICK
  • 10
    10-18527 SCREW (INCLUDES "O" RING) USE W/O DIPSTICK
    SCREW (INCLUDES "O" RING) USE W/O DIPSTICK
  • --
    891736T MOTOR, HYDRAULIC PUMP
    MOTOR, HYDRAULIC PUMP
  • 11
    891736T END CAP ASSEMBLY
    END CAP ASSEMBLY
  • 12
    891736T SCREW, END CAP
    SCREW, END CAP
  • 13
    891736T O-RING, HOUSING
    O-RING, HOUSING
  • 14
    F17921 SCREW, FIELD FRAME
    SCREW, FIELD FRAME
  • 15
    891736T HOLDER KIT
    HOLDER KIT
  • 16
    891736T BRUSH SET
    BRUSH SET
  • 17
    891736T ARMATURE
    ARMATURE
  • 18
    891736T WASHER, THRUST - ARMATURE
    WASHER, THRUST - ARMATURE
  • 19
    891736T FIELD AND FRAME ASSEMBLY
    FIELD AND FRAME ASSEMBLY
  • 20
    891736T COVER ASSEMBLY
    COVER ASSEMBLY
