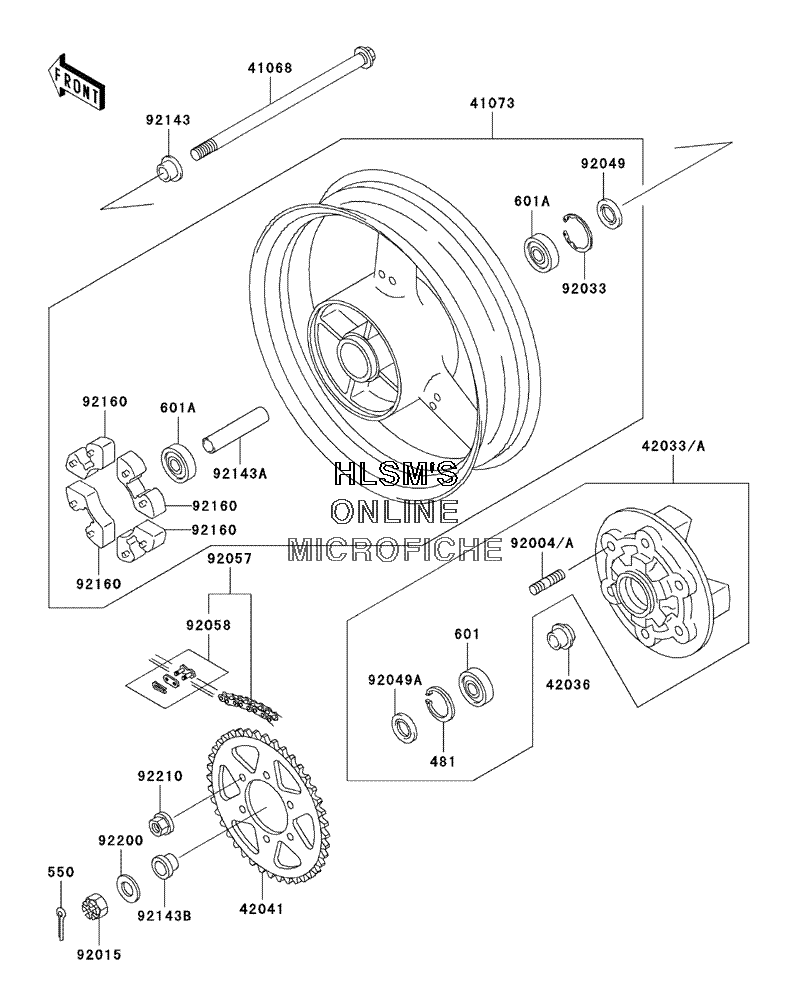

WHEEL - REAR W/ CHAIN для Kawasaki NINJA ZX-7R - 2003 года выпуска

  • №
    Артикул
    Название
  • 481
    481J5500 CIRCLIP
    CIRCLIP
  • 550
    550D4040 PIN, COTTER, 4.0X40
    PIN, COTTER, 4.0X40
  • 601
    601B6006G BEARING, BALL, #6006G
    BEARING, BALL, #6006G
  • 601A
    601B6205UU BEARING, BALL
    BEARING, BALL
  • 41068
    41068-1326 AXLE, REAR
    AXLE, REAR
  • 41073
    41073-1597-DH WHEEL, ASSY., REAR (C.GRAY)
    WHEEL, ASSY., REAR (C.GRAY)
  • 42033A
    42033-1213 COUPLING, ASSY., REAR HUB
    COUPLING, ASSY., REAR HUB
  • 42036
    42036-1279 SLEEVE, REAR HUB, L=22
    SLEEVE, REAR HUB, L=22
  • 42041
    42041-1467 SPROCKET, HUB (43 TEETH)
    SPROCKET, HUB (43 TEETH)
  • 92004A
    92004-1275 STUD, 10X19
    STUD, 10X19
  • 92015
    92015-1844 NUT, CASTLE, 24MM
    NUT, CASTLE, 24MM
  • 92033
    92033-1043 RING, SNAP, 52MM
    RING, SNAP, 52MM
  • 92049
    92049-1375 SEAL, OI(LEFT, RIGHT) EAR HUB, L=159
    SEAL, OI(LEFT, RIGHT) EAR HUB, L=159
  • 92049A
    92049-1376 SEAL, OIL, PJN 40 55 8
    SEAL, OIL, PJN 40 55 8
  • 92057
    92057-0013 CHAIN, DRIVE, RKGB525ROZ2X110L
    CHAIN, DRIVE, RKGB525ROZ2X110L
  • 92058
    92058-1109 JOINT, CHAIN, DRIVE
    JOINT, CHAIN, DRIVE
  • 92143
    92143-1475 COLLAR, REAR AXLE (RIGHT) L=26
    COLLAR, REAR AXLE (RIGHT) L=26
  • 92143A
    92143-1783 COLLAR, REAR HUB, L=136
    COLLAR, REAR HUB, L=136
  • 92143B
    92143-1784 COLLAR, REAR AXLE (LEFT) L=17
    COLLAR, REAR AXLE (LEFT) L=17
  • 92160
    92160-1485 DAMPER, SHOCK, REAR HUB
    DAMPER, SHOCK, REAR HUB
  • 92200
    92200-1081 WASHER, 25.5X38X4.5
    WASHER, 25.5X38X4.5
  • 92210
    92210-1258 NUT, 10MM
    NUT, 10MM
