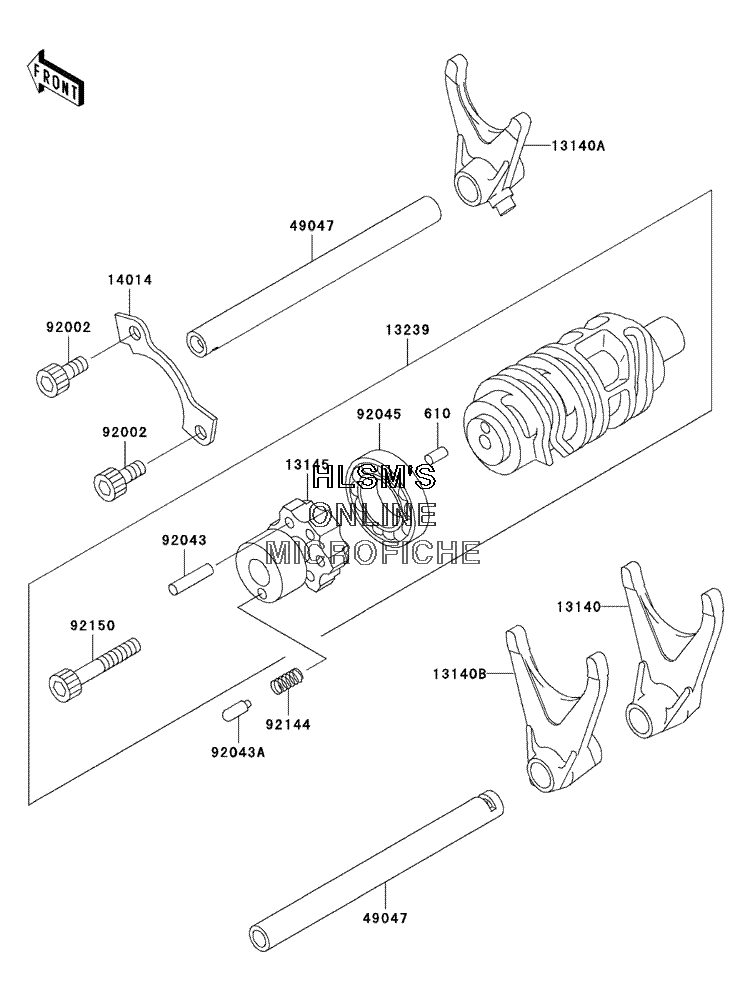

GEAR CHANGE DRUM W/ SHIFT FORK(S) для Kawasaki NINJA ZX-7R - 2003 года выпуска

  • №
    Артикул
    Название
  • 610
    610A0408 ROLLER, 4X8
    ROLLER, 4X8
  • 13140
    13140-1254 FORK, SHIFT, OUTERPUT, TOP
    FORK, SHIFT, OUTERPUT, TOP
  • 13140A
    13140-1255 FORK, SHIFT, INPUT, 3RD AND 4TH
    FORK, SHIFT, INPUT, 3RD AND 4TH
  • 13140B
    13140-1256 FORK, SHIFT, OUTERPUT, 5TH
    FORK, SHIFT, OUTERPUT, 5TH
  • 13145
    13145-1083 CAM, CHANGE DRUM
    CAM, CHANGE DRUM
  • 13239
    13239-1193 DRUM, ASSY., CHANGE
    DRUM, ASSY., CHANGE
  • 14014
    14014-1126 PLATE, POSITION
    PLATE, POSITION
  • 49047
    49047-1082 ROD, SHIFT
    ROD, SHIFT
  • 92002
    92002-1192 BOLT, SOCKET, 6X14
    BOLT, SOCKET, 6X14
  • 92043
    92043-1518 PIN, 5X21.8
    PIN, 5X21.8
  • 92043A
    92043-1523 PIN
    PIN
  • 92045
    92045-1045 BEARING, BALL, 16005 (NTN)
    BEARING, BALL, 16005 (NTN)
  • 92144
    92144-1245 SPRING
    SPRING
  • 92150
    92150-1958 BOLT, SOCKET, 6X40
    BOLT, SOCKET, 6X40
