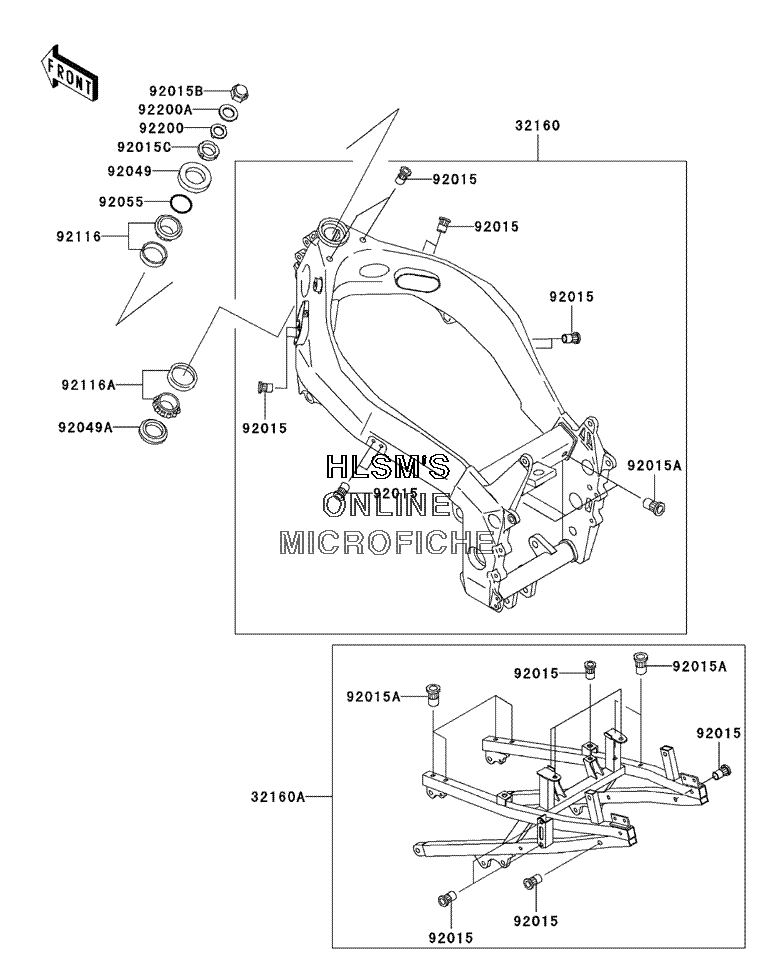

FRAME для Kawasaki NINJA ZX-7R - 2003 года выпуска`
-
№АртикулНазвание
-
3216032160-1423-EZ FRAME, COMP, AL, FRONT (C.GRAY)FRAME, COMP, AL, FRONT (C.GRAY)
-
32160A32160-1424-EZ FRAME, COMP, AL, REAR (C.GRAY)FRAME, COMP, AL, REAR (C.GRAY)
-
9201592015-1791 NUT, POP, 6MM, L=15NUT, POP, 6MM, L=15
-
92015A92015-1792 NUT, POP, 6MM, L=16.5NUT, POP, 6MM, L=16.5
-
92015B92015-1847 NUT, CAP, 25MMNUT, CAP, 25MM
-
92015C92015-1848 NUT, STEERING STEM, 35MMNUT, STEERING STEM, 35MM
-
9204992049-1436 SEAL, OIL, HX043N2, ASEAL, OIL, HX043N2, A
-
92049A92049-1437 SEAL, OIL, MX043N1, ASEAL, OIL, MX043N1, A
-
9205592055-1452 O-RING, 34.5X2.0O-RING, 34.5X2.0
-
9211692116-1072 BEARING, ROLLER, 32907JR, 2BEARING, ROLLER, 32907JR, 2
-
92116A92116-1074 BEARING, ROLLER, 32907JR, 3BEARING, ROLLER, 32907JR, 3
-
9220092200-1083 WASHER, CLAW, 25.5X40X2.3WASHER, CLAW, 25.5X40X2.3
-
92200A92200-1084 WASHER, 25.5X42X2.3WASHER, 25.5X42X2.3
