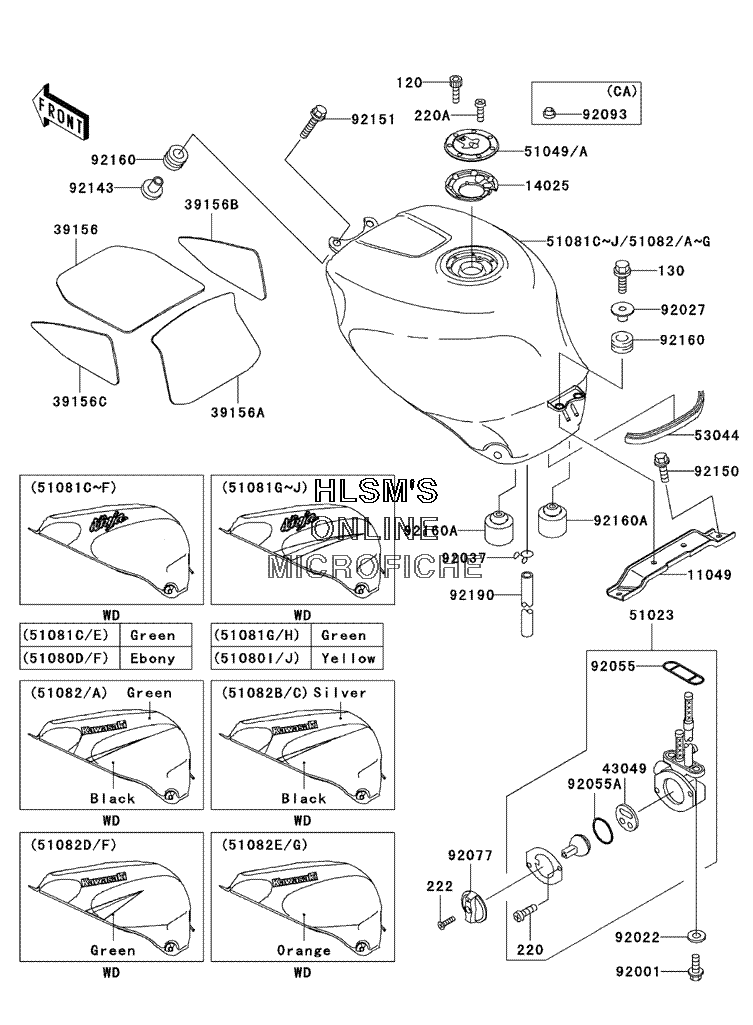

FUEL TANK для Kawasaki NINJA ZX-7R - 2003 года выпуска

  • №
    Артикул
    Название
  • 11049
    11049-1866 BRACKET, FUEL TANK, REAR
    BRACKET, FUEL TANK, REAR
  • 14025
    14025-1913 COVER, TANK CAP
    COVER, TANK CAP
  • 39156
    39156-1312 PAD, FUEL TANK, FRONT
    PAD, FUEL TANK, FRONT
  • 39156A
    39156-1313 PAD, FUEL TANK, REAR
    PAD, FUEL TANK, REAR
  • 39156B
    39156-1314 PAD, FUEL TANK, SIDE (RIGHT)
    PAD, FUEL TANK, SIDE (RIGHT)
  • 39156C
    39156-1315 PAD, FUEL TANK, SIDE (LEFT)
    PAD, FUEL TANK, SIDE (LEFT)
  • 43049
    43049-1066 PACKING, TAP VALVE
    PACKING, TAP VALVE
  • 51023
    51023-1221 TAP, ASSY., FUEL
    TAP, ASSY., FUEL
  • 51049A
    51049-1130 CAP, TANK, FUEL
    CAP, TANK, FUEL
  • 51082D
    51082-5395-7F TANK, COMP, FUEL (L.GREEN) (EXCEPT CALIF.)
    TANK, COMP, FUEL (L.GREEN) (EXCEPT CALIF.)
  • 51082E
    51082-5396-470 TANK, COMP, FUEL (P.B.ORANGE) (EXCEPT CALIF.)
    TANK, COMP, FUEL (P.B.ORANGE) (EXCEPT CALIF.)
  • 51082F
    51082-5410-7F TANK, COMP, FUEL (L.GREEN) (CALIF. ONLY)
    TANK, COMP, FUEL (L.GREEN) (CALIF. ONLY)
  • 51082G
    51082-5411-470 TANK, COMP, FUEL (P.B.ORANGE) (CALIF. ONLY)
    TANK, COMP, FUEL (P.B.ORANGE) (CALIF. ONLY)
  • 120
    120S0512 BOLT, SOCKET
    BOLT, SOCKET
  • 130
    130J0625 BOLT, FLANGED, 6X25
    BOLT, FLANGED, 6X25
  • 220
    220B0308 SCREW, PAN, CROSS
    SCREW, PAN, CROSS
  • 220A
    220C0508 SCREW, PAN, CROSS
    SCREW, PAN, CROSS
  • 222
    222C0412 SCREW, CSK, RD, CROS
    SCREW, CSK, RD, CROS
  • 53044
    53044-1296 TRIM
    TRIM
  • 92001
    92001-1091 BOLT, 6X20
    BOLT, 6X20
  • 92022
    92022-183 WASHER, 6.2X11X1.5
    WASHER, 6.2X11X1.5
  • 92027
    92027-1920 COLLAR, L=14.1
    COLLAR, L=14.1
  • 92037
    92037-147 CLAMP, TUBE
    CLAMP, TUBE
  • 92055
    92055-1112 O-RING, FUEL TAP PACKING
    O-RING, FUEL TAP PACKING
  • 92055A
    92055-1419 O-RING, TAP LEVER
    O-RING, TAP LEVER
  • 92077
    92077-1120 KNOB, FUEL TAP
    KNOB, FUEL TAP
  • 92093
    92093-1030 SEAL, FUEL TANK CAP (CALIF. ONLY)
    SEAL, FUEL TANK CAP (CALIF. ONLY)
  • 92143
    92143-1515 COLLAR
    COLLAR
  • 92150
    92150-1633 BOLT, FLANGED, 6X20
    BOLT, FLANGED, 6X20
  • 92151
    92151-1105 BOLT, FLANGED, 6X30
    BOLT, FLANGED, 6X30
  • 92160
    92160-1162 DAMPER
    DAMPER
  • 92160A
    92160-1513 DAMPER
    DAMPER
  • 92190
    92190-1418 TUBE, DRAIN
    TUBE, DRAIN
