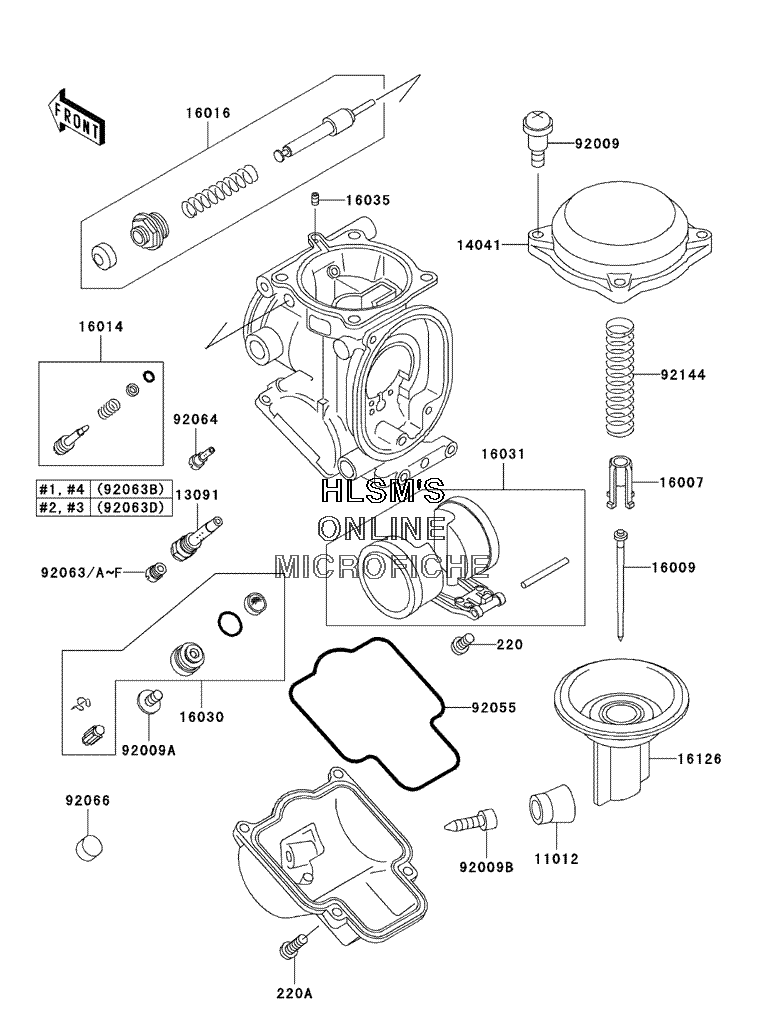

CARBURETOR PARTS для Kawasaki NINJA ZX-7R - 2003 года выпуска

  • №
    Артикул
    Название
  • 220
    220D0408 SCREW, PAN, CROS
    SCREW, PAN, CROS
  • 220A
    220D0414 SCREW, PAN, CROS
    SCREW, PAN, CROS
  • 11012
    11012-1675 CAP, DRAIN SCREW
    CAP, DRAIN SCREW
  • 13091
    13091-1887 HOLDER, NEEDLE JET
    HOLDER, NEEDLE JET
  • 14041
    14041-1100 COVER, COMP, MIXING
    COVER, COMP, MIXING
  • 16007
    16007-1117 SEAT, SPRING, VALVE
    SEAT, SPRING, VALVE
  • 16009
    16009-1892 NEEDLE, JET, N14Q
    NEEDLE, JET, N14Q
  • 16014
    16014-1086 SCREW, PILOT AIR
    SCREW, PILOT AIR
  • 16016
    16016-1090 PLUNGER, STARTER
    PLUNGER, STARTER
  • 16030
    16030-1076 VALVE, FLOAT
    VALVE, FLOAT
  • 16031
    16031-1080 FLOAT
    FLOAT
  • 16035
    16035-1055 JET, AIR, LEAK
    JET, AIR, LEAK
  • 16126
    16126-1319 VALVE, VACUUM
    VALVE, VACUUM
  • 92009
    92009-1549 SCREW, 4X4.4
    SCREW, 4X4.4
  • 92009A
    92009-1550 SCREW, 4X8
    SCREW, 4X8
  • 92009B
    92009-1551 SCREW, DRAIN, M6X0.75
    SCREW, DRAIN, M6X0.75
  • 92055
    92055-1426 O-RING, FLOAT CHAMBER
    O-RING, FLOAT CHAMBER
  • 92063
    92063-1345 JET, MAIN, #160 (RACING USE ONLY)
    JET, MAIN, #160 (RACING USE ONLY)
  • 92063A
    92063-1347 JET, MAIN, #165 (RACING USE ONLY)
    JET, MAIN, #165 (RACING USE ONLY)
  • 92063B
    92063-1386 JET, MAIN, #170
    JET, MAIN, #170
  • 92063C
    92063-1387 JET, MAIN, #175 (RACING USE ONLY)
    JET, MAIN, #175 (RACING USE ONLY)
  • 92063D
    92063-1388 JET, MAIN, #180
    JET, MAIN, #180
  • 92063E
    92063-1390 JET, MAIN, #185 (RACING USE ONLY)
    JET, MAIN, #185 (RACING USE ONLY)
  • 92063F
    92063-1391 JET, MAIN, #190 (RACING USE ONLY)
    JET, MAIN, #190 (RACING USE ONLY)
  • 92064
    92064-1101 JET, PILOT, #35
    JET, PILOT, #35
  • 92066
    92066-1051 PLUG, PILOT AIR SCREW, 6.9X2
    PLUG, PILOT AIR SCREW, 6.9X2
  • 92144
    92144-1962 SPRING, VACUUM VALVE
    SPRING, VACUUM VALVE
