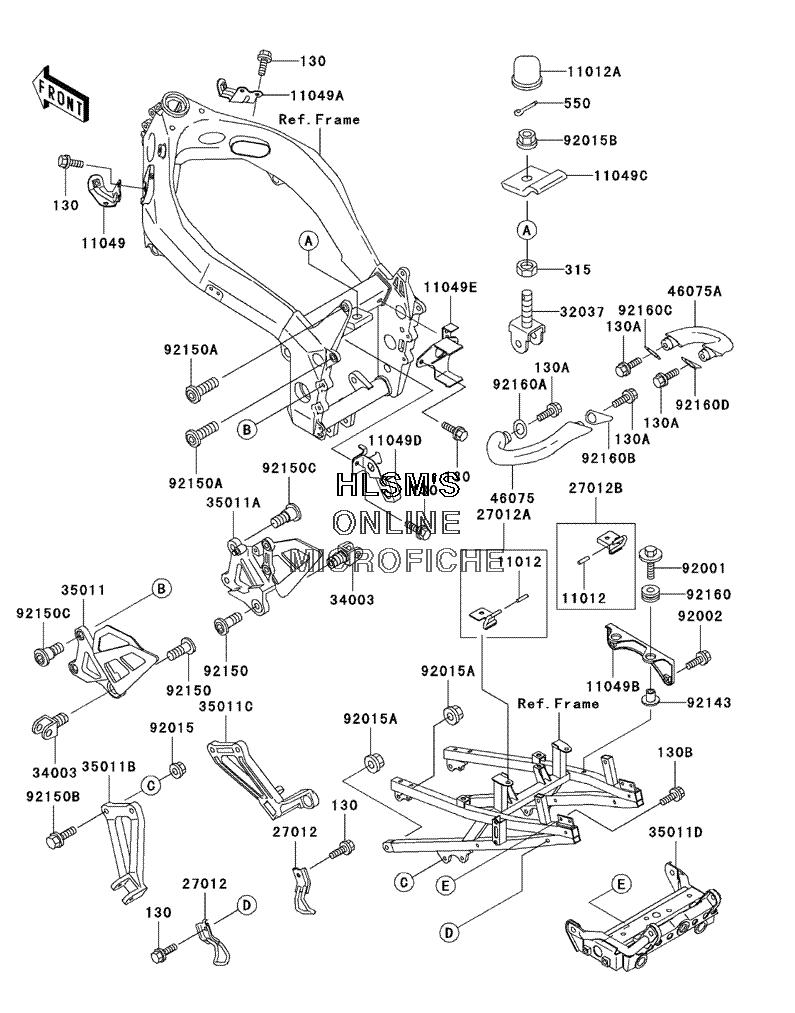

FRAME FITTINGS для Kawasaki NINJA ZX-7R - 2003 года выпуска
-
№АртикулНазвание
-
130130J0616 BOLT, FLANGED, 6X16 (BLACK)BOLT, FLANGED, 6X16 (BLACK)
-
130A130J0816 BOLT, FLANGED, 8X16 (BLACK)BOLT, FLANGED, 8X16 (BLACK)
-
130B130J0820 BOLT, FLANGED, 8X20BOLT, FLANGED, 8X20
-
315315B1600 NUT, HEX, FINE, 16MMNUT, HEX, FINE, 16MM
-
550550D4025 PIN, COTTER, 4.0X25PIN, COTTER, 4.0X25
-
1101211012-1589 CAP, BUNGEE CORD HOOKCAP, BUNGEE CORD HOOK
-
11012A11012-1844 CAPCAP
-
1104911049-1335 BRACKET, RADIATOR (LEFT)BRACKET, RADIATOR (LEFT)
-
11049A11049-1336 BRACKET, RADIATOR (RIGHT)BRACKET, RADIATOR (RIGHT)
-
11049B11049-1397 BRACKET, IGNITERBRACKET, IGNITER
-
11049C11049-1398 BRACKET, BATTERY CASE, FRONTBRACKET, BATTERY CASE, FRONT
-
11049D11049-1701 BRACKET, FUEL FILTERBRACKET, FUEL FILTER
-
11049E11049-1736 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
2701227012-1475 HOOK, BUNGEE CORD, REARHOOK, BUNGEE CORD, REAR
-
27012A27012-1535 HOOK, HELMET (LEFT)HOOK, HELMET (LEFT)
-
27012B27012-1536 HOOK, HELMET (RIGHT)HOOK, HELMET (RIGHT)
-
3203732037-1564 BRACKET, SHOCKABSORBERBRACKET, SHOCKABSORBER
-
3400334003-1327 HOLDER, STEPHOLDER, STEP
-
3501135011-1552 STAY, FRONT (LEFT)STAY, FRONT (LEFT)
-
35011A35011-1553 STAY, FRONT (RIGHT)STAY, FRONT (RIGHT)
-
35011B35011-1554 STAY, REAR (LEFT)STAY, REAR (LEFT)
-
35011C35011-1555 STAY, REAR (RIGHT)STAY, REAR (RIGHT)
-
35011D35011-1783-EZ STAY, TAIL (C.GRAY)STAY, TAIL (C.GRAY)
-
4607546075-1124-21 GRIP, REAR (LEFT) F.BLACKGRIP, REAR (LEFT) F.BLACK
-
46075A46075-1125-21 GRIP, REAR (RIGHT) F.BLACKGRIP, REAR (RIGHT) F.BLACK
-
9200192001-1776 BOLT, 6X30BOLT, 6X30
-
9200292002-1656 BOLT, 6X14BOLT, 6X14
-
9201592015-1406 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
92015A92015-1415 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
92015B92015-1881 NUT, FLANGED, 16MMNUT, FLANGED, 16MM
-
9214392143-1353 COLLARCOLLAR
-
9215092150-1268 BOLT, SOCKET, 10X25BOLT, SOCKET, 10X25
-
92150A92150-1295 BOLT, 10X35BOLT, 10X35
-
92150B92150-1455 BOLT, FLANGED, 8X30BOLT, FLANGED, 8X30
-
92150C92150-1839 BOLT, SOCKET, 8X20BOLT, SOCKET, 8X20
-
9216092160-1162 DAMPERDAMPER
-
92160A92160-1732 DAMPER, REAR GRIP (LEFT) FRONTDAMPER, REAR GRIP (LEFT) FRONT
-
92160B92160-1733 DAMPER, REAR GRIP (LEFT) REARDAMPER, REAR GRIP (LEFT) REAR
-
92160C92160-1756 DAMPER, REAR GRIP (RIGHT) FRONTDAMPER, REAR GRIP (RIGHT) FRONT
-
92160D92160-1757 DAMPER, REAR GRIP (RIGHT) REARDAMPER, REAR GRIP (RIGHT) REAR
