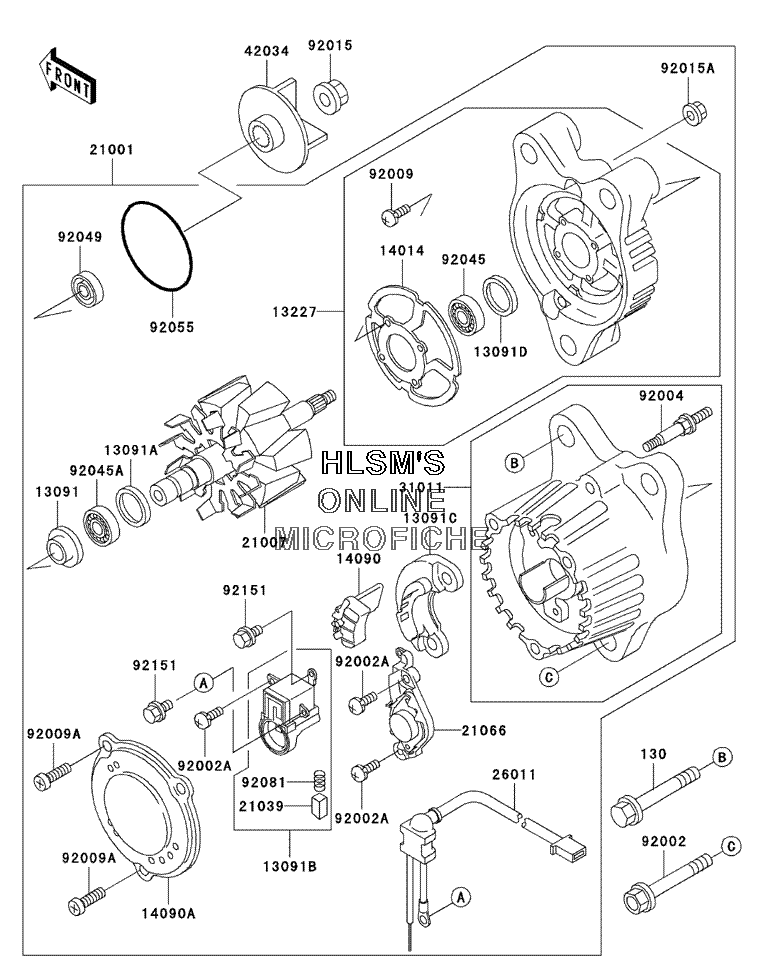

GENERATOR для Kawasaki NINJA ZX-7R - 2003 года выпуска
-
№АртикулНазвание
-
130130Z0870 BOLT, FLANGEDBOLT, FLANGED
-
1309113091-1327 HOLDER, COVERHOLDER, COVER
-
13091A13091-1328 HOLDER, BEARINGHOLDER, BEARING
-
13091B13091-1465 HOLDER, BRUSHHOLDER, BRUSH
-
13091C13091-1466 RECTIFIERRECTIFIER
-
13091D13091-1748 HOLDER, BEARINGHOLDER, BEARING
-
1322713227-1106 HOUSING, GENERATORHOUSING, GENERATOR
-
1401414014-1105 PLATE, POSITIONPLATE, POSITION
-
1409014090-1113 COVER, RECTIFIERCOVER, RECTIFIER
-
14090A14090-1451 COVER, GENERATORCOVER, GENERATOR
-
2100121001-1115 GENERATORGENERATOR
-
2100721007-1229 ROTOR, GENERATORROTOR, GENERATOR
-
2103921039-1052 BRUSH, CARBONBRUSH, CARBON
-
2106621066-1076 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
2601126011-1588 WIRE, LEAD, GENERATORWIRE, LEAD, GENERATOR
-
3101131011-1067 FRAME, GENERATORFRAME, GENERATOR
-
4203442034-1056 COUPLINGCOUPLING
-
9200292002-1215 BOLT, 8X63BOLT, 8X63
-
92002A92002-1380 SCREW, 5X17.5SCREW, 5X17.5
-
9200492004-1196 STUDSTUD
-
9200992009-1645 SCREWSCREW
-
92009A92009-1646 SCREWSCREW
-
9201592015-1850 NUT, 10MMNUT, 10MM
-
92015A92015-1851 NUTNUT
-
9204592045-1248 BEARING, BALL, #6003BEARING, BALL, #6003
-
92045A92045-1249 BEARING, BALL, #6002NCBEARING, BALL, #6002NC
-
9204992049-1390 SEAL, OILSEAL, OIL
-
9205592055-1496 O-RINGO-RING
-
9208192081-1759 SPRING, BRUSHSPRING, BRUSH
-
9215192151-1245 SCREW, 4X6SCREW, 4X6
