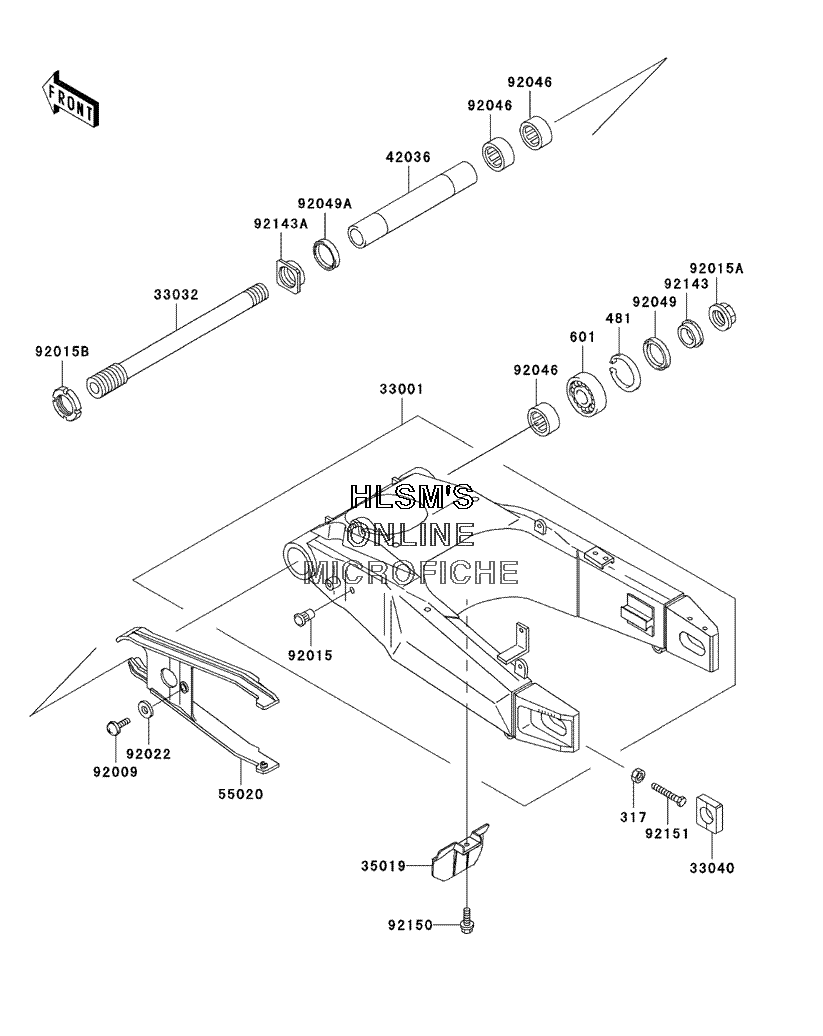

SUSPENSION - SWINGARM для Kawasaki NINJA ZX-7R - 2003 года выпуска

  • №
    Артикул
    Название
  • 317
    317G0800 NUT, HEX, SMALL, 8MM
    NUT, HEX, SMALL, 8MM
  • 481
    481J4700 CIRCLIP, TYPE, C, 47MM
    CIRCLIP, TYPE, C, 47MM
  • 601
    601B6005U BEARING, BALL, #6005U
    BEARING, BALL, #6005U
  • 33001
    33001-1494-EZ ARM, COMP, SWING (C.GRAY)
    ARM, COMP, SWING (C.GRAY)
  • 33032
    33032-1173 SHAFT, SWING ARM
    SHAFT, SWING ARM
  • 33040
    33040-1114 ADJUSTER, CHAIN
    ADJUSTER, CHAIN
  • 35019
    35019-1333 FLAP
    FLAP
  • 42036
    42036-1312 SLEEVE, SWING ARM, L=224.5
    SLEEVE, SWING ARM, L=224.5
  • 55020
    55020-1535 GUARD, CHAIN
    GUARD, CHAIN
  • 92009
    92009-1663 SCREW, 6X18
    SCREW, 6X18
  • 92015
    92015-1792 NUT, POP, 6MM, L=16.5
    NUT, POP, 6MM, L=16.5
  • 92015A
    92015-1845 NUT, FLANGED, 25MM
    NUT, FLANGED, 25MM
  • 92015B
    92015-1930 NUT, FRAME PIVOT, 32MM
    NUT, FRAME PIVOT, 32MM
  • 92022
    92022-1143 WASHER, 6.5X16X1
    WASHER, 6.5X16X1
  • 92046
    92046-1205 BEARING, NEEDLE, BM3520
    BEARING, NEEDLE, BM3520
  • 92049
    92049-1381 SEAL, OIL, MHA 35 47 5
    SEAL, OIL, MHA 35 47 5
  • 92049A
    92049-1419 SEAL, OIL, KC 38 45 6
    SEAL, OIL, KC 38 45 6
  • 92143
    92143-1481 COLLAR, SWING ARM, L=12.5
    COLLAR, SWING ARM, L=12.5
  • 92143A
    92143-1681 COLLAR, SWING ARM, L=15.5
    COLLAR, SWING ARM, L=15.5
  • 92150
    92150-1689 BOLT, FLANGED, 6X14
    BOLT, FLANGED, 6X14
  • 92151
    92151-1578 BOLT, 8X55
    BOLT, 8X55
