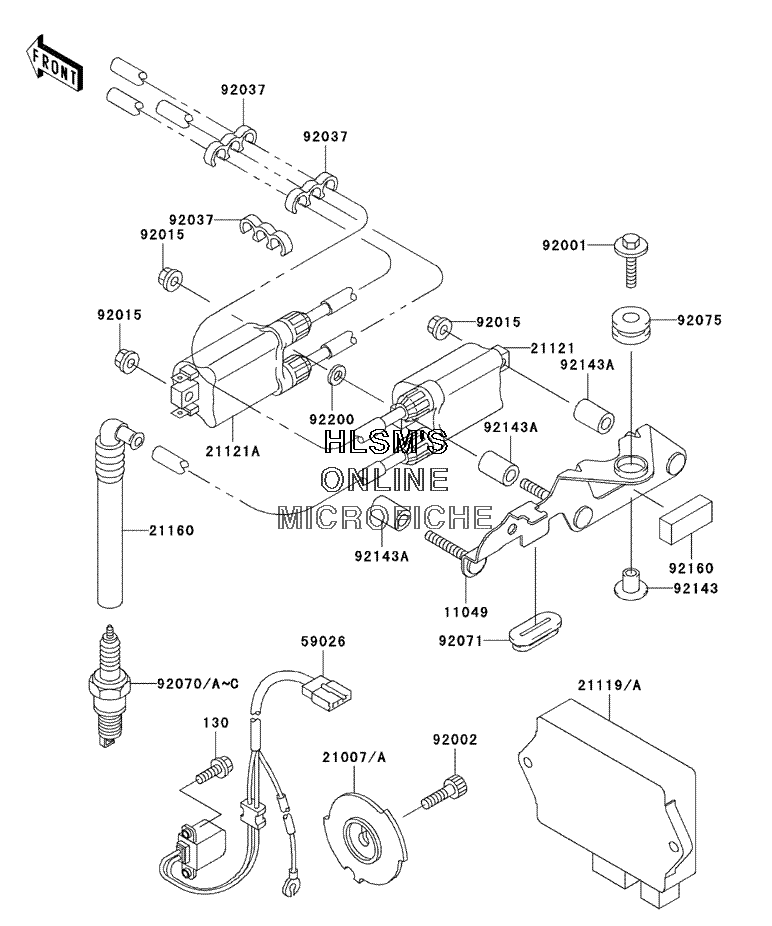

IGNITION SYSTEM для Kawasaki NINJA ZX-7R - 2003 года выпуска

  • №
    Артикул
    Название
  • 130
    130G0512 BOLT, FLANGED
    BOLT, FLANGED
  • 11049
    11049-1705 BRACKET, IGNITION
    BRACKET, IGNITION
  • 21007
    21007-1294 ROTOR, PULSING (EXCEPT CALIF.)
    ROTOR, PULSING (EXCEPT CALIF.)
  • 21007A
    21007-1295 ROTOR, PULSING (CALIF. ONLY)
    ROTOR, PULSING (CALIF. ONLY)
  • 21119
    21119-1460 IGNITER (EXCEPT CALIF.)
    IGNITER (EXCEPT CALIF.)
  • 21119A
    21119-1462 IGNITER (CALIF. ONLY)
    IGNITER (CALIF. ONLY)
  • 21121
    21121-1253 COIL, IGNITION, #1 AND #4
    COIL, IGNITION, #1 AND #4
  • 21121A
    21121-1255 COIL, IGNITION, #2 AND #3
    COIL, IGNITION, #2 AND #3
  • 21160
    21160-1088 CAP, ASSY., PLUG
    CAP, ASSY., PLUG
  • 59026
    59026-1104 COIL, PULSING
    COIL, PULSING
  • 92001
    92001-1776 BOLT, 6X30
    BOLT, 6X30
  • 92002
    92002-1178 BOLT, SOCKET, 8X20
    BOLT, SOCKET, 8X20
  • 92015
    92015-1193 NUT, FLANGED, 6MM
    NUT, FLANGED, 6MM
  • 92037
    92037-1941 CLAMP, TUBE PLUG, SPARK, U27ESR, N (ND) (LOCAL PROCUREMENT ITEM)
    CLAMP, TUBE PLUG, SPARK, U27ESR, N (ND) (LOCAL PROCUREMENT ITEM)
  • 92070A
    92070-1169 PLUG, SPARK, CR8E (NGK) (OPT) PLUG, SPARK, U24ESR, N (ND) (LOCAL PROCUREMENT ITEM) (OPT)
    PLUG, SPARK, CR8E (NGK) (OPT) PLUG, SPARK, U24ESR, N (ND) (LOCAL PROCUREMENT ITEM) (OPT)
  • 92070C
    92070-1266 PLUG, SPARK, CR9E (NGK)
    PLUG, SPARK, CR9E (NGK)
  • 92071
    92071-1187 GROMMET
    GROMMET
  • 92075
    92075-1857 DAMPER, MUFFLER FITTING
    DAMPER, MUFFLER FITTING
  • 92143
    92143-1353 COLLAR
    COLLAR
  • 92143A
    92143-1858 COLLAR, 6.4X10X20
    COLLAR, 6.4X10X20
  • 92160
    92160-1736 DAMPER, BRACKET
    DAMPER, BRACKET
  • 92200
    92200-1271 WASHER, 6.5X13
    WASHER, 6.5X13
