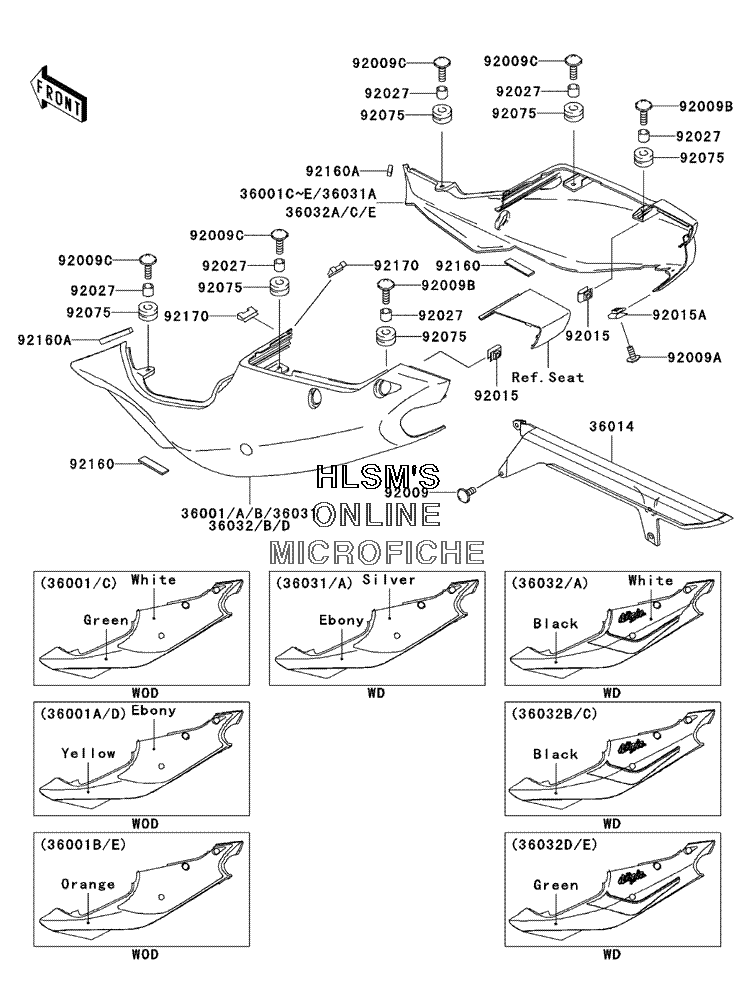

SIDE COVERS W/ CHAIN COVER для Kawasaki NINJA ZX-7R - 2003 года выпуска
-
№АртикулНазвание
-
36001B36001-1557-470 COVER, SIDE (LEFT) (P.B.ORANGE)COVER, SIDE (LEFT) (P.B.ORANGE)
-
36001E36001-1558-470 COVER, SIDE (RIGHT) (P.B.ORANGE)COVER, SIDE (RIGHT) (P.B.ORANGE)
-
3601436014-1200 CASE, CHAINCASE, CHAIN
-
36032D36032-5168-7F COVER, SIDE (LEFT) (L.GREEN)COVER, SIDE (LEFT) (L.GREEN)
-
36032E36032-5169-7F COVER, SIDE (RIGHT) (L.GREEN)COVER, SIDE (RIGHT) (L.GREEN)
-
9200992009-1402 SCREW, 6X10SCREW, 6X10
-
92009A92009-1653 SCREW, 5X14SCREW, 5X14
-
92009B92009-1663 SCREW, 6X18SCREW, 6X18
-
92009C92009-1664 SCREW, 6X22SCREW, 6X22
-
9201592015-1798 NUT, 5MMNUT, 5MM
-
92015A92015-1996 NUT, 5MMNUT, 5MM
-
9202792027-129 COLLAR, 6.8X10X8.5COLLAR, 6.8X10X8.5
-
9207592075-1634 DAMPERDAMPER
-
9216092160-1099 DAMPERDAMPER
-
92160A92160-1800 DAMPERDAMPER
-
9217092170-1440 CLAMPCLAMP
