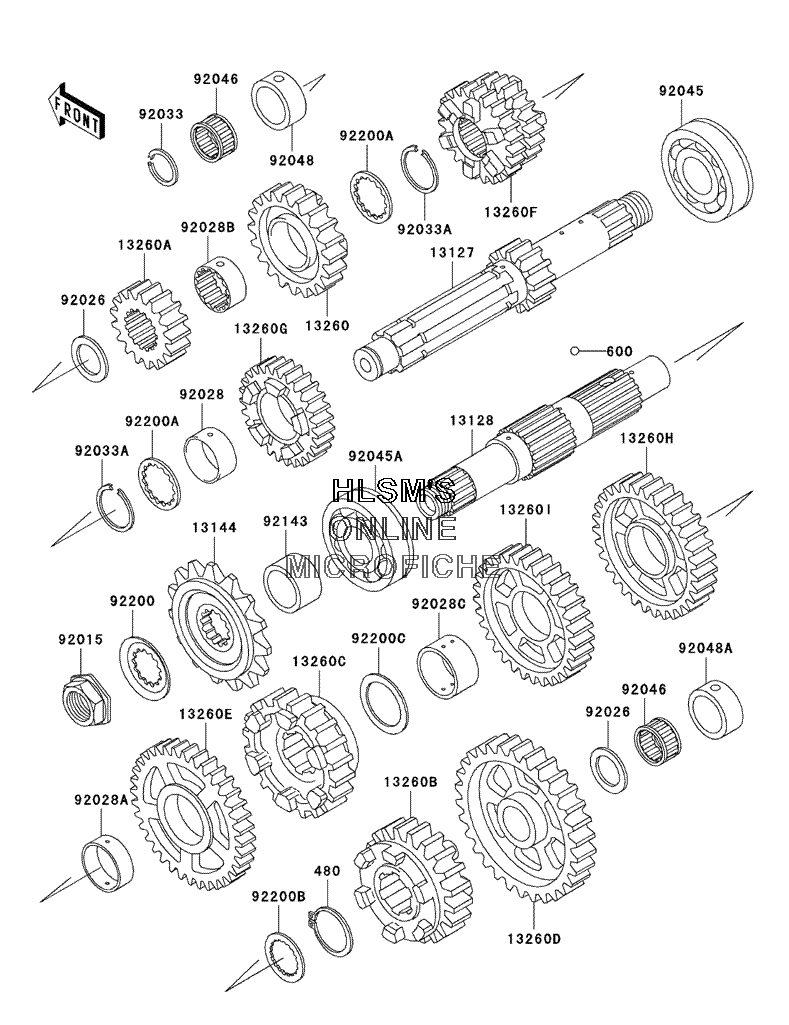

TRANSMISSION для Kawasaki NINJA ZX-7R - 2003 года выпуска
-
№АртикулНазвание
-
480480J2900 CIRCLIPCIRCLIP
-
600600A0500 BALL, STEEL, 5/32"BALL, STEEL, 5/32"
-
1312713127-1244 SHAFT, TRANSMISSION INPUTSHAFT, TRANSMISSION INPUT
-
1312813128-1208 SHAFT, TRANSMISSION OUTPUTSHAFT, TRANSMISSION OUTPUT
-
1314413144-1256 SPROCKET, OUTERPUT (16 TEETH)SPROCKET, OUTERPUT (16 TEETH)
-
1326013260-1401 GEAR, INPUT TOP (29 TEETH)GEAR, INPUT TOP (29 TEETH)
-
13260A13260-1526 GEAR, INPUT 2ND (18 TEETH)GEAR, INPUT 2ND (18 TEETH)
-
13260B13260-1528 GEAR, OUTERPUT 5TH (33 TEETH)GEAR, OUTERPUT 5TH (33 TEETH)
-
13260C13260-1529 GEAR, OUTERPUT TOP (32 TEETH)GEAR, OUTERPUT TOP (32 TEETH)
-
13260D13260-1538 GEAR, OUTERPUT LOW (40 TEETH)GEAR, OUTERPUT LOW (40 TEETH)
-
13260E13260-1539 GEAR, OUTERPUT 2ND (36 TEETH)GEAR, OUTERPUT 2ND (36 TEETH)
-
13260F13260-1608 GEAR, INPUT 3RD AND 4TH (21 TEETH) AND 23TGEAR, INPUT 3RD AND 4TH (21 TEETH) AND 23T
-
13260G13260-1609 GEAR, INPUT 5TH (27 TEETH)GEAR, INPUT 5TH (27 TEETH)
-
13260H13260-1612 GEAR, OUTERPUT 3RD (34 TEETH)GEAR, OUTERPUT 3RD (34 TEETH)
-
13260I13260-1613 GEAR, OUTERPUT 4TH (32 TEETH)GEAR, OUTERPUT 4TH (32 TEETH)
-
9201592015-1963 NUT, 20MMNUT, 20MM
-
9202692026-1224 SPACER, 22X35.5X2.1SPACER, 22X35.5X2.1
-
9202892028-1449 BUSHING, INPUT GEARBUSHING, INPUT GEAR
-
92028A92028-1707 BUSHING, OUTERPUT GEAR, 2NDBUSHING, OUTERPUT GEAR, 2ND
-
92028B92028-1752 BUSHING, INPUT TOP GEARBUSHING, INPUT TOP GEAR
-
92028C92028-1753 BUSHING, OUTERPUT, 3RD AND 4THBUSHING, OUTERPUT, 3RD AND 4TH
-
9203392033-025 RING, SNAP, 20X25.5X1.2RING, SNAP, 20X25.5X1.2
-
92033A92033-1037 RING, SNAP, T=1.2RING, SNAP, T=1.2
-
9204592045-1224 BEARING, BALL, 6305N2SH2BEARING, BALL, 6305N2SH2
-
92045A92045-1323 BEARING, BALL, 5305XBEARING, BALL, 5305X
-
9204692046-031 BEARING, NEEDLE, FWF, 223014BEARING, NEEDLE, FWF, 223014
-
9204892048-1066 RACE, INPUT SHAFTRACE, INPUT SHAFT
-
92048A92048-1067 RACE, 0RZ30X38X17PX1RACE, 0RZ30X38X17PX1
-
9214392143-1788 COLLAR, ENGINE SPROCKETCOLLAR, ENGINE SPROCKET
-
9220092200-1065 WASHERWASHER
-
92200A92200-1240 WASHER, T=1.5WASHER, T=1.5
-
92200B92200-1277 WASHER, TOOTHED, 28X30X2WASHER, TOOTHED, 28X30X2
-
92200C92200-1278 WASHER, 29.9X40X1.5WASHER, 29.9X40X1.5
