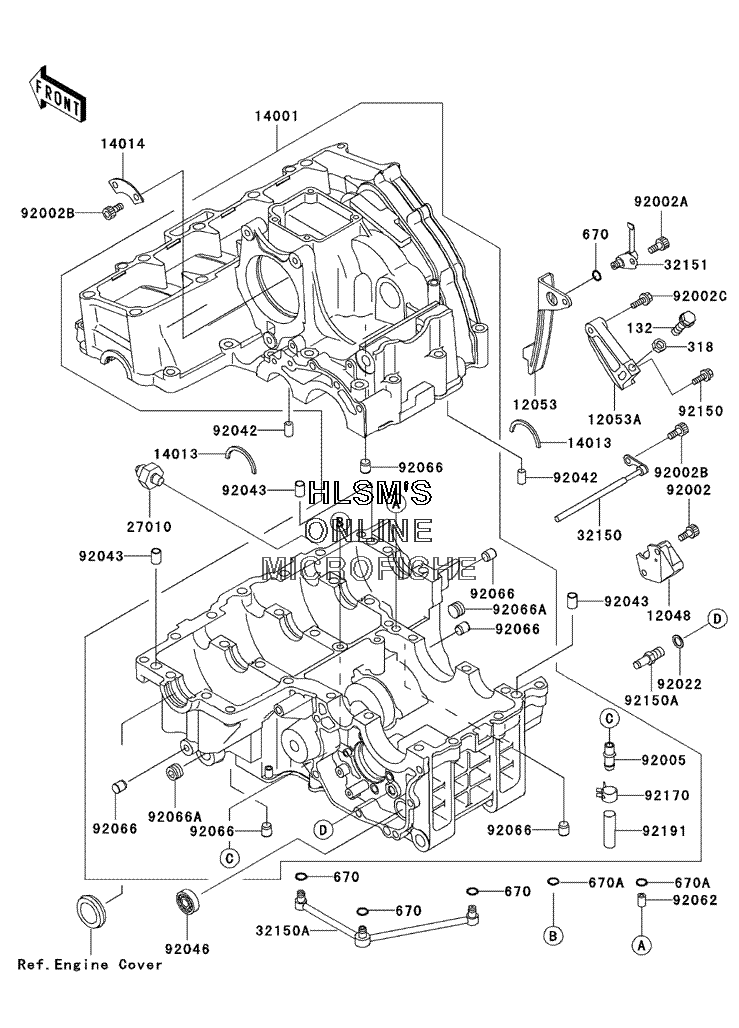

CRANKCASE для Kawasaki NINJA ZX-7R - 2003 года выпуска
-
№АртикулНазвание
-
132132G0820 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
318318B0800 NUT, HEX, SMALL, 8MMNUT, HEX, SMALL, 8MM
-
670670D1505 O-RINGO-RING
-
670A670D1508 O-RING, 8MMO-RING, 8MM
-
1204812048-1109 TENSIONER, ASSY.TENSIONER, ASSY.
-
1205312053-1281 GUIDE, CHAINGUIDE, CHAIN
-
12053A12053-1285 GUIDE, CHAINGUIDE, CHAIN
-
1400114001-1208 SET, CRANKCASESET, CRANKCASE
-
1401314013-1004 RING, POSITION, T=1.98RING, POSITION, T=1.98
-
1401414014-1056 PLATE, POSITIONPLATE, POSITION
-
2701027010-1313 SWITCH, OIL PRESSURESWITCH, OIL PRESSURE
-
3215032150-1795 PIPEPIPE
-
32150A32150-1796 PIPEPIPE
-
3215132151-1492 PIPEPIPE
-
9200292002-1696 BOLT, SOCKET, 6X25BOLT, SOCKET, 6X25
-
92002A92002-1778 BOLT, SOCKET, 6X16BOLT, SOCKET, 6X16
-
92002B92002-1796 BOLT, SOCKET, 6X12BOLT, SOCKET, 6X12
-
92002C92002-1797 BOLT, 6X30BOLT, 6X30
-
9200592005-1161 FITTING, BREATHER PIPEFITTING, BREATHER PIPE
-
9202292022-1973 WASHER, 10X15X1.0WASHER, 10X15X1.0
-
9204292042-016 PIN, DOWEL, 6X16PIN, DOWEL, 6X16
-
9204392043-1037 PIN, DOWEL, 10X14PIN, DOWEL, 10X14
-
9204692046-1148 BEARING, NEEDLE, HK1312BEARING, NEEDLE, HK1312
-
9206292062-1074 NOZZLENOZZLE
-
9206692066-1012 PLUG, OIL LINE, 7.2X8PLUG, OIL LINE, 7.2X8
-
92066A92066-1262 PLUG, PT3/8X10PLUG, PT3/8X10
-
9215092150-1799 BOLT, 6X25BOLT, 6X25
-
92150A92150-1803 BOLT, RETURN SPRINGBOLT, RETURN SPRING
-
9217092170-1167 CLAMPCLAMP
-
9219192191-1016 TUBETUBE
