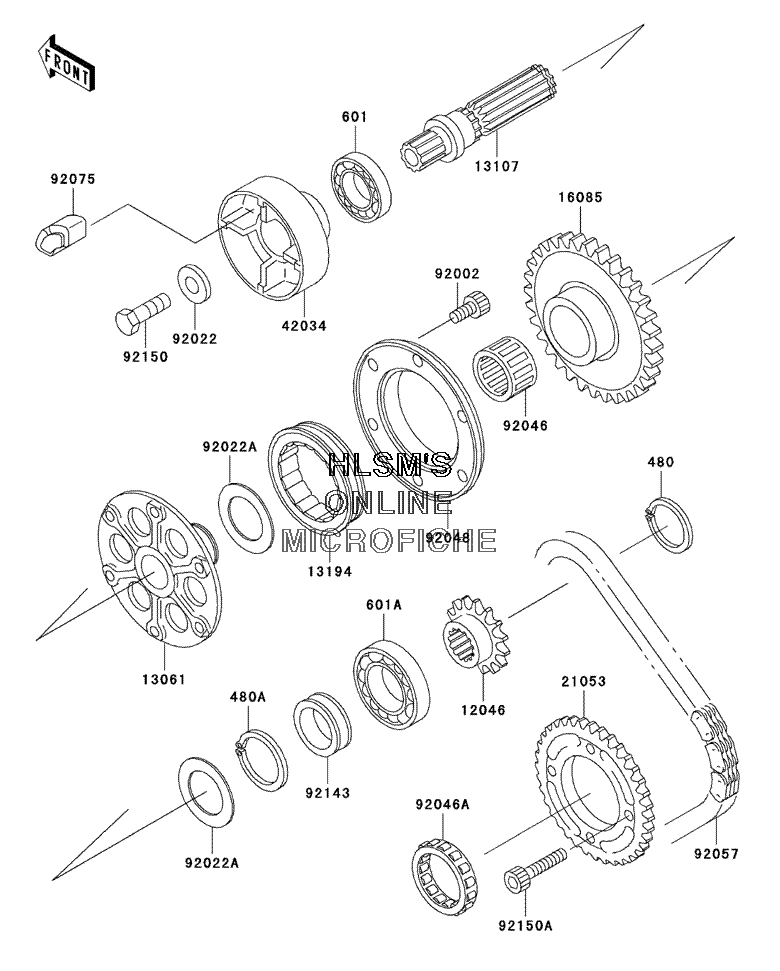

GENERATOR SHAFT для Kawasaki NINJA ZX-7R - 2003 года выпуска

  • №
    Артикул
    Название
  • 480
    480J2000 CIRCLIP, TYPE, C, 20MM
    CIRCLIP, TYPE, C, 20MM
  • 480A
    480J2500 CIRCLIP, TYPE, C, 25MM
    CIRCLIP, TYPE, C, 25MM
  • 601
    601A6203 BEARING, BALL, #6203
    BEARING, BALL, #6203
  • 601A
    601A6204 BEARING, BALL, #6204
    BEARING, BALL, #6204
  • 12046
    12046-1127 SPROCKET, DRIVEN, GENERATOR
    SPROCKET, DRIVEN, GENERATOR
  • 13061
    13061-1197 BOSS, ONEWAY CLUTCH
    BOSS, ONEWAY CLUTCH
  • 13107
    13107-1277 SHAFT, ONEWAY CLUTCH
    SHAFT, ONEWAY CLUTCH
  • 13194
    13194-1095 CLUTCH, ONEWAY
    CLUTCH, ONEWAY
  • 16085
    16085-1173 GEAR, ONEWAY CLUTCH
    GEAR, ONEWAY CLUTCH
  • 21053
    21053-1064 SPROCKET, ASSY., DRIVE
    SPROCKET, ASSY., DRIVE
  • 42034
    42034-1055 COUPLING
    COUPLING
  • 92002
    92002-1796 BOLT, SOCKET, 6X12
    BOLT, SOCKET, 6X12
  • 92022
    92022-1518 WASHER, 8X22X3
    WASHER, 8X22X3
  • 92022A
    92022-225 WASHER, 25.3X32X0.5
    WASHER, 25.3X32X0.5
  • 92046
    92046-1022 BEARING, NEEDLE, K253020S
    BEARING, NEEDLE, K253020S
  • 92046A
    92046-1251 BEARING, NEEDLE
    BEARING, NEEDLE
  • 92048
    92048-1068 RACE, ONEWAY CLUTCH
    RACE, ONEWAY CLUTCH
  • 92057
    92057-1322 CHAIN, GENERATOR, 81RH2515M
    CHAIN, GENERATOR, 81RH2515M
  • 92075
    92075-1790 DAMPER, COUPLING
    DAMPER, COUPLING
  • 92143
    92143-1466 COLLAR
    COLLAR
  • 92150
    92150-1488 BOLT
    BOLT
  • 92150A
    92150-1684 BOLT, SOCKET, 5X25
    BOLT, SOCKET, 5X25
