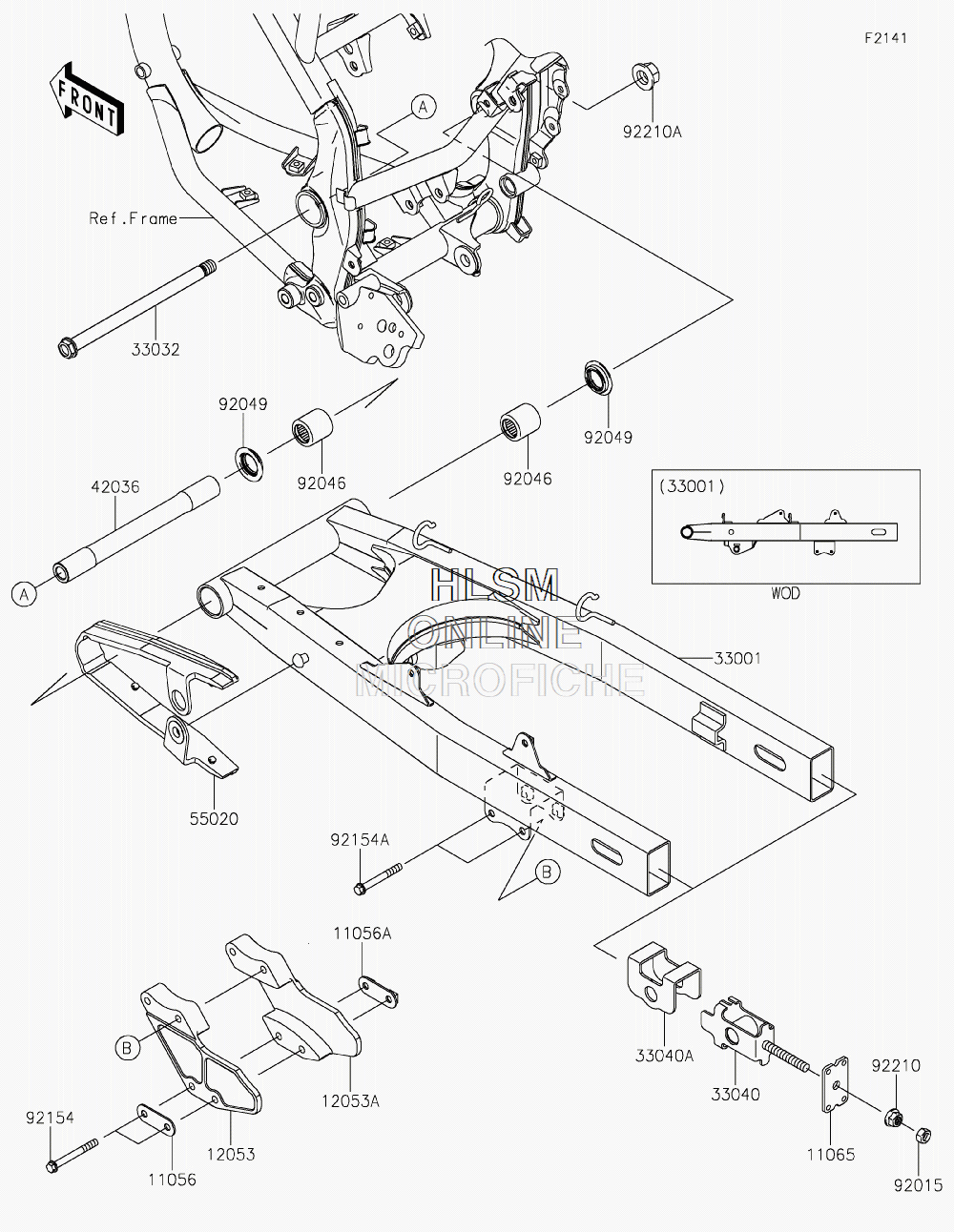

SUSPENSION - SWINGARM для Kawasaki KLX150L (LATIN AMERICA) (BR250EHF) - 2018 года выпуска
-
№АртикулНазвание
-
1105611056-2395 BRACKETBRACKET
-
11056A11056-2396 BRACKET, WITH NUTBRACKET, WITH NUT
-
1106511065-0805 CAPCAP
-
1205312053-0200 GUIDE-CHAIN, LEFT HANDGUIDE-CHAIN, LEFT HAND
-
12053A12053-0201 GUIDE-CHAIN, RIGHT HANDGUIDE-CHAIN, RIGHT HAND
-
3300133001-0644-458 ARM-COMP-SWING, (P.SILVER)ARM-COMP-SWING, (P.SILVER)
-
3303233032-0053 SHAFT-SWING ARM, 14X227SHAFT-SWING ARM, 14X227
-
3304033040-0019 ADJUSTER-CHAINADJUSTER-CHAIN
-
33040A33040-1162 ADJUSTER-CHAIN, OUTSIDEADJUSTER-CHAIN, OUTSIDE
-
4203642036-0070 SLEEVE, PIVOT, 15.1X20X197.8SLEEVE, PIVOT, 15.1X20X197.8
-
5502055020-0858 GUARDGUARD
-
9201592015-1364 NUT, 8MMNUT, 8MM
-
9204692046-1110 BEARING-NEEDLE, BM202726BEARING-NEEDLE, BM202726
-
9204992049-1109 SEAL-OIL, ARMSEAL-OIL, ARM
-
9215492154-1190 BOLT, FLANGED, 6X55BOLT, FLANGED, 6X55
-
92154A92154-1193 BOLT, FLANGED, 6X50BOLT, FLANGED, 6X50
-
9221092210-0773 NUT, 8MMNUT, 8MM
-
92210A92210-0855 NUTNUT
