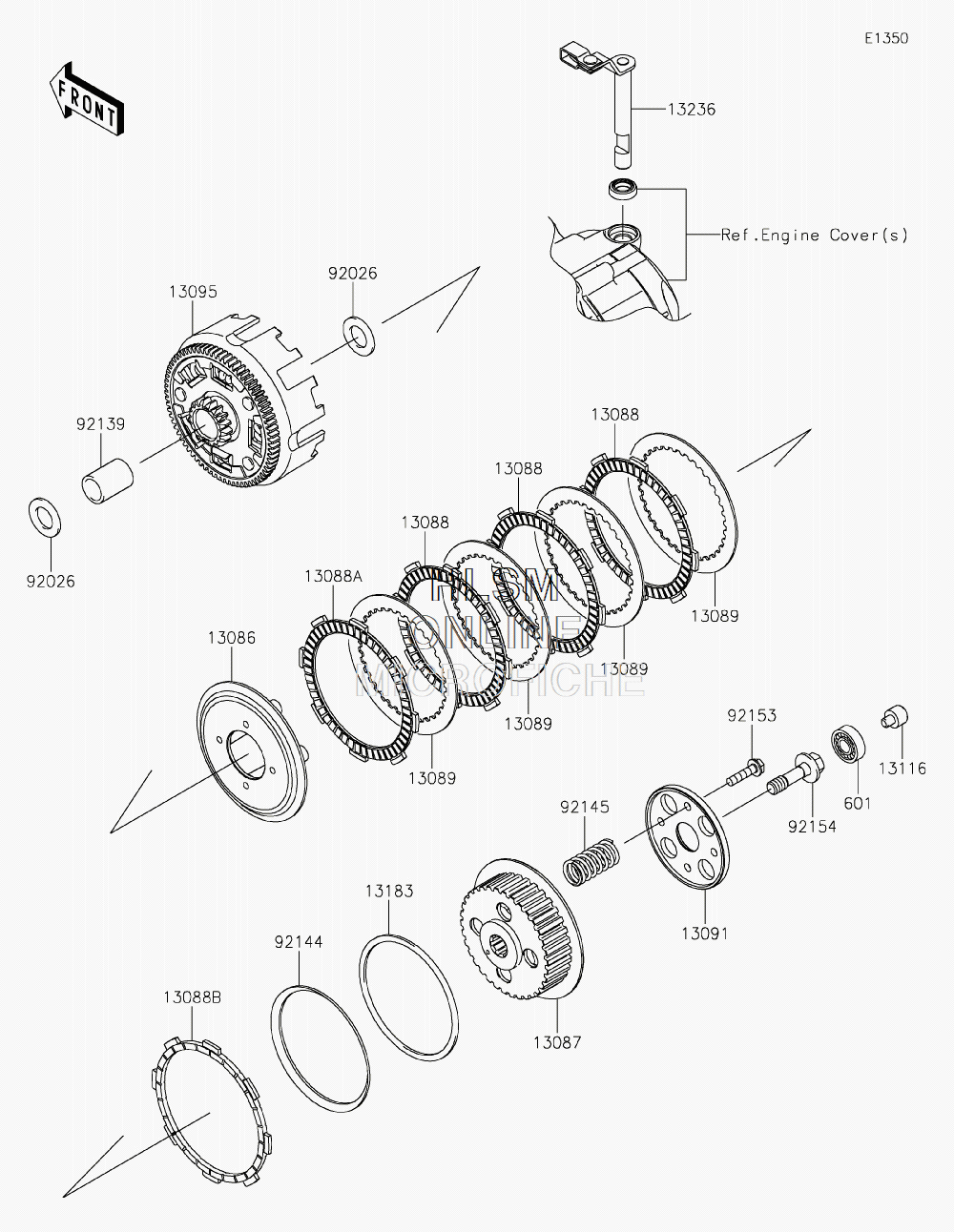

CLUTCH для Kawasaki KLX150L (LATIN AMERICA) (BR250EHF) - 2018 года выпуска
-
№АртикулНазвание
-
1308613086-1070 WHEEL-CLUTCHWHEEL-CLUTCH
-
1308713087-1161 HUB-CLUTCHHUB-CLUTCH
-
1308813088-0040 PLATE-FRICTIONPLATE-FRICTION
-
13088A13088-0041 PLATE-FRICTIONPLATE-FRICTION
-
13088B13088-1077 PLATE-FRICTION, ID=100PLATE-FRICTION, ID=100
-
1308913089-1108 PLATE-CLUTCHPLATE-CLUTCH
-
1309113091-1920 HOLDER, CLUTCH SPRINGHOLDER, CLUTCH SPRING
-
1309513095-0571 HOUSING-COMP-CLUTCHHOUSING-COMP-CLUTCH
-
1311613116-0706 ROD-PUSHROD-PUSH
-
1318313183-1274 PLATEPLATE
-
1323613236-0174 LEVER-COMP, CLUTCH RELEASELEVER-COMP, CLUTCH RELEASE
-
601601A6000 BEARING-BALLBEARING-BALL
-
9202692026-1614 SPACERSPACER
-
9213992139-0871 BUSHING, 17X22X30BUSHING, 17X22X30
-
9214492144-1289 SPRING, CLUTCHSPRING, CLUTCH
-
9214592145-0861 SPRINGSPRING
-
9215392153-1067 BOLT, 6X25BOLT, 6X25
-
9215492154-1056 BOLT, FLANGED, 10X36BOLT, FLANGED, 10X36
